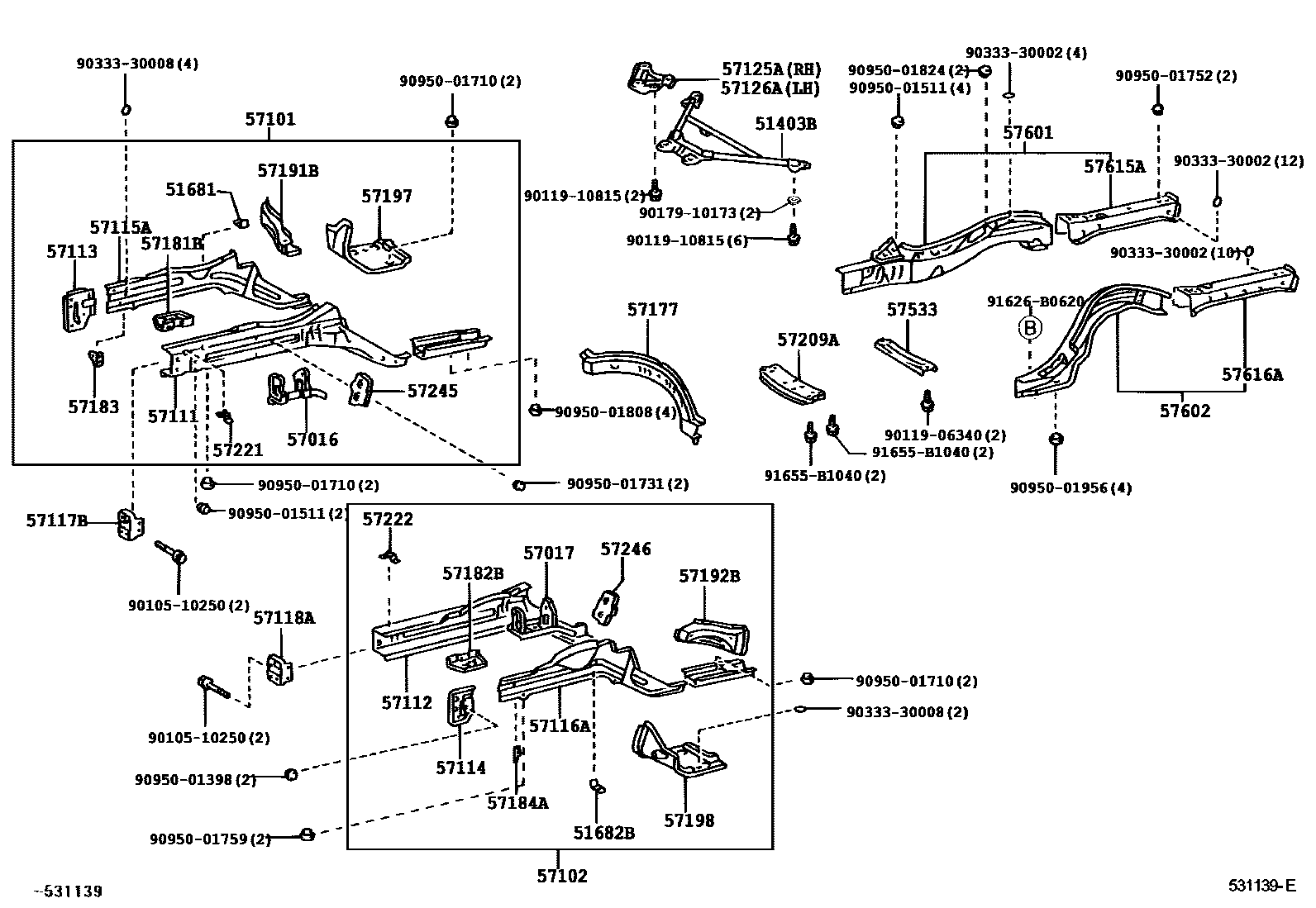

FLOOR SIDE MEMBER
51403BBRACE SUB-ASSY, FRONT SUSPENSION MEMBER
51681BRACKET, FLEXIBLE HOSE
51682BBRACKET, FLEXIBLE HOSE, LH
57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH
57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57111MEMBER, FRONT SIDE, RH
57112MEMBER, FRONT SIDE, LH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57177CROSSMEMBER, FRONT SIDE MEMBER TO DASH PANEL
57183PLATE, FRONT SIDE MEMBER, NO.4 RH
57184APLATE, FRONT SIDE MEMBER, NO.4 LH
57191BREINFORCEMENT, FRONT SIDE MEMBER, OUTER RH
57192BREINFORCEMENT, FRONT SIDE MEMBER, OUTER LH
57197BOX, TORQUE, FRONT RH
57198BOX, TORQUE, FRONT LH
57221BRACKET, FRONT SIDE MEMBER, RH
57222BRACKET, FRONT SIDE MEMBER, LH
57245REINFORCEMENT, FRONT SIDE MEMBER, NO.9 RH
57246REINFORCEMENT, FRONT SIDE MEMBER, NO.9 LH
57533BRACE, FRONT FLOOR, CENTER
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57615AMEMBER, REAR FLOOR SIDE, REAR RH
57616AMEMBER, REAR FLOOR SIDE, REAR LH
9010510250
main90105-10250
9011906340
main90119-06340
9011910815
main90119-10815
9017910173
main90179-10173
9033330002
main90333-30002
9033330008
main90333-30008
9095001398
main90950-01398
9095001511
main90950-01511
9095001710
main90950-01710
9095001731
main90950-01731
9095001752
main90950-01752
9095001759
main90950-01759
9095001808
main90950-01808
9095001824
main90950-01824
9095001956
main90950-01956
91626B0620
main91626-B0620
91655B1040
main91655-B1040
53 parts on this diagram · 1 diagram in section
