REAR DISC BRAKE CALIPER & DUST COVER

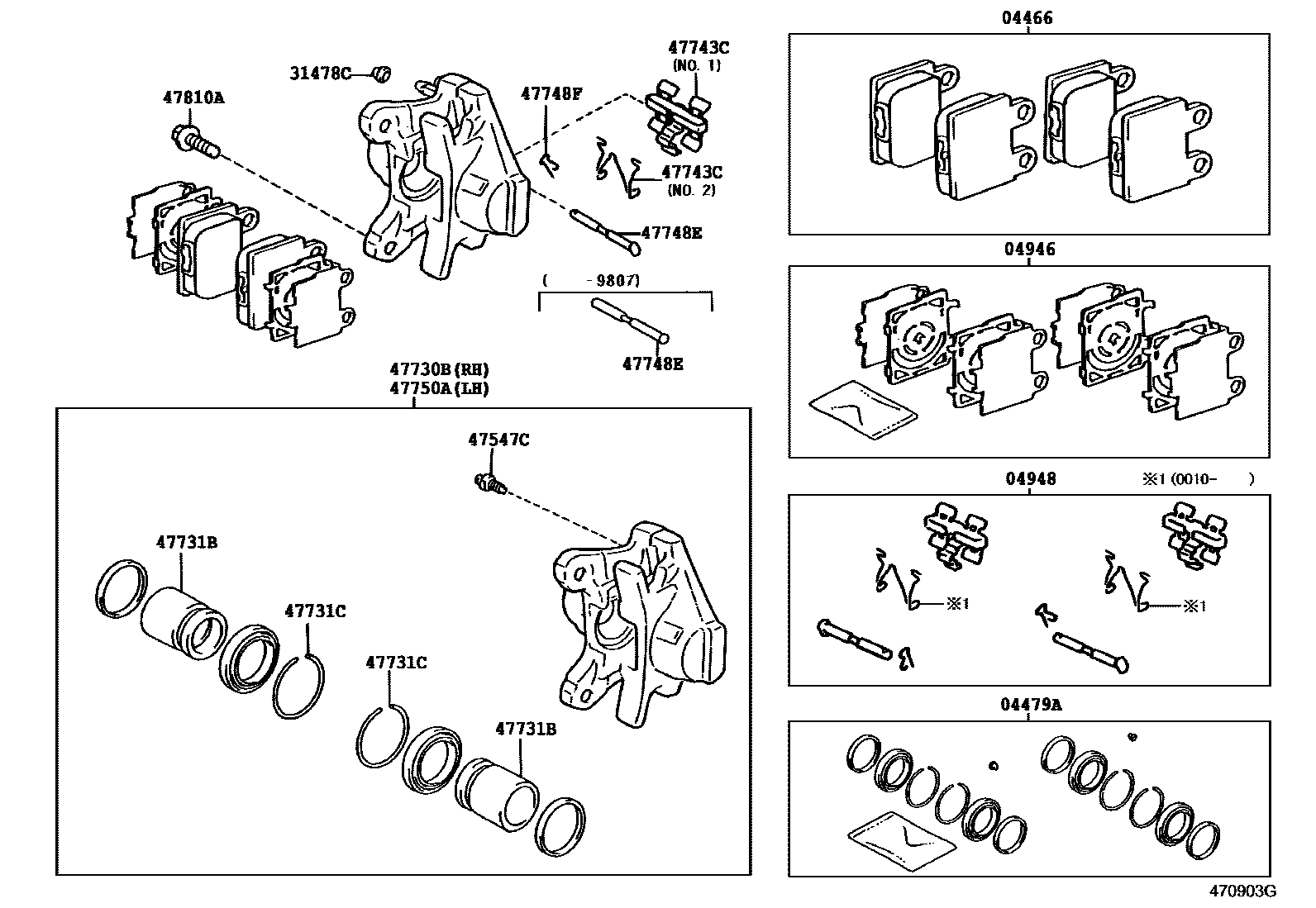

Parts diagram
04466PAD KIT, DISC BRAKE, REAR
main04466-30130i199708-199912
sub04466-30161
main04466-30160i199912-200002
sub04466-30161
main04466-30161i200002-200208
main04466-30170i200208
main04466-30190i200011-200303
main04466-30190i200208-200303
04479ACYLINDER KIT, DISC BRAKE, REAR
main04479-30220i199708-199710
sub04479-30221
main04479-30221i199710
main04479-30231i200208-200303
main04479-30231i200011-200303
04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
main04946-30070i199708-199908
sub04946-30071
main04946-30071i200011-200303
main04946-30071i199908-200108
main04946-30071i200208-200303
main04946-53010i200109
04948FITTING KIT, DISC BRAKE, REAR
main04948-30070i199708-199807
sub04948-30071
main04948-30071i199807-200010
main04948-30080i200010
31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
main31478-30010i199708
47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)
main47547-27030i199708-200501
47730BCYLINDER ASSY, REAR DISC BRAKE, RH
main47730-30410i199708-200501
main47730-53040i200208-200303
main47730-53040i200011-200303
47731BPISTON, REAR DISC BRAKE
main47731-30100i199708-200501
main47731-30190i200208-200303
main47731-30190i200011-200303
47731CRING, SET(FOR REAR DISC BRAKE PISTON)
main90520-52006i199708-200501
47743CSPRING, ANTI-SQUEAL(FOR REAR DISC BRAKE)
main47743-30030i199708-200501
main47743-30050i199708-200501
47748EPIN, W/HOLE(FOR REAR DISC BRAKE)
main47735-30010i199708-199807
sub47735-30011
sub90468-12028
main47735-30011i199807-200501
47748FCLIP(FOR REAR DISC BRAKE)
main90468-12028i199807-200501
47750ACYLINDER ASSY, DISC BRAKE, REAR LH
main47750-30410i199708-200501
main47750-53040i200208-200303
main47750-53040i200011-200303
47810ABOLT, HEXAGON(FOR REAR CALIPER)
main90105-12174i199708-200501

14 parts on this diagram · 1 diagram in section
