FRONT DISC BRAKE CALIPER & DUST COVER

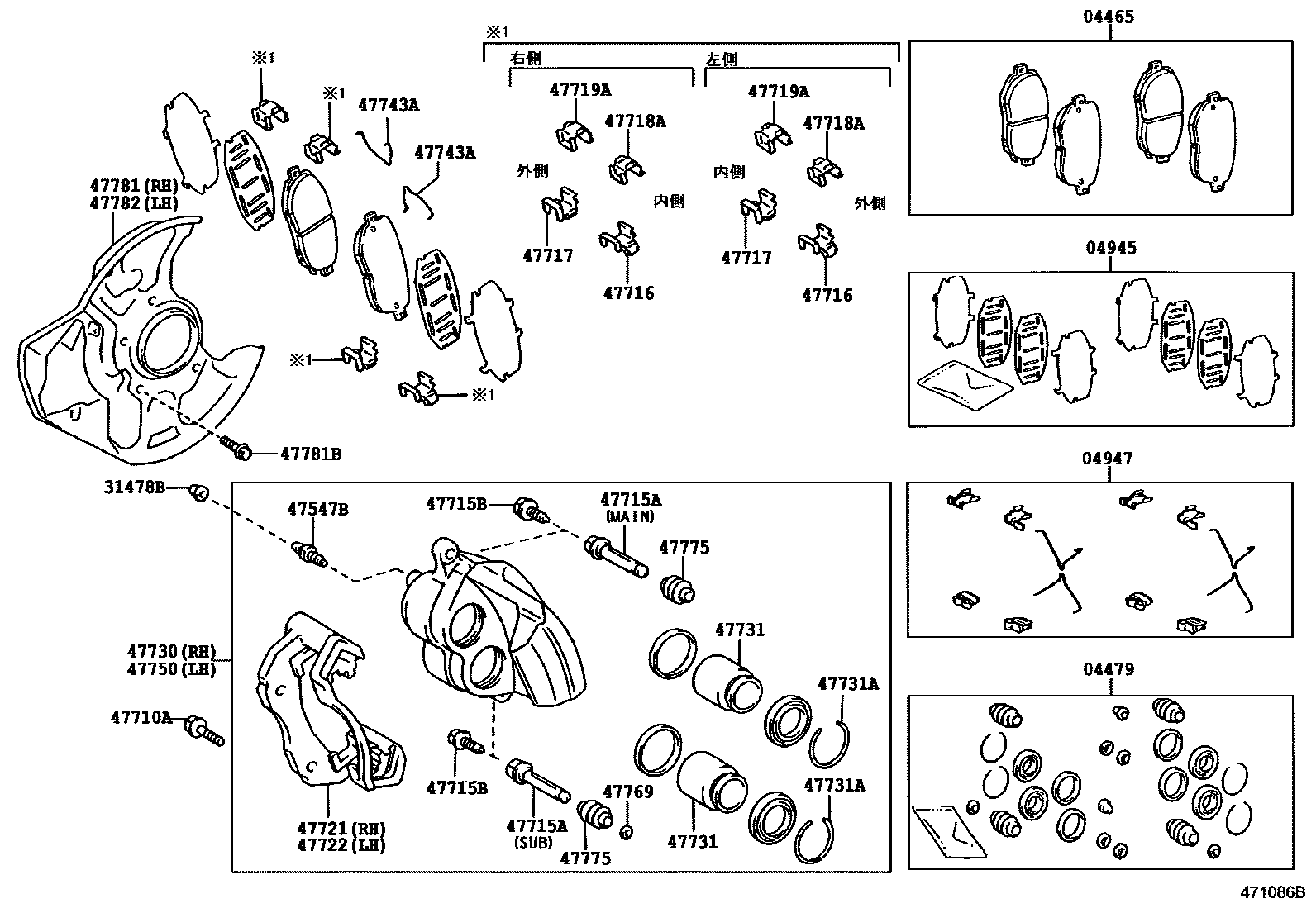

Parts diagram
04465PAD KIT, DISC BRAKE, FRONT
main04465-22311i200208-200212
sub04465-22312
main04465-22312i200212-200501
main04465-30230i199708-199901
sub04465-30231
main04465-30231i199901-200208
sub04465-22311
main04465-30272i200212-200303
main04465-30272i200212-200303
main04465-30320i200208-200212
main04465-30320i200011-200212
04479CYLINDER KIT, DISC BRAKE, FRONT
main04479-30190i199708-200101
sub04479-30191
main04479-30191i200101
sub04478-30240
04945SHIM KIT, ANTI SQUEAL, FRONT
main04945-30120i200212-200303
sub04945-30140
main04945-30120i199708-200208
sub04945-30140
main04945-30120i200212-200303
sub04945-30140
main04945-30130i200011-200212
sub04945-30120
main04945-30130i200208-200212
sub04945-30120
main04945-30140i200208
04947FITTING KIT, DISC BRAKE, FRONT
main04947-30120i199708
31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
main31478-30010i199708
47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)
main47547-27030i199708-200501
47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
main90105-12228i199708-200501
47715APIN, FRONT DISC BRAKE CYLINDER SLIDE
main47715-22070i199708-200501
main47715-30060i199708-200501
47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
main90105-08164i199708-200501
47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
main47716-30120i199708-200501
47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
main47716-30130i199708-200501
47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)
main47717-50051i199708-200501
47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)
main47717-50061i199708-200501
47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH
main47721-30180i199708-200501
main47721-30220i200208-200303
main47721-30220i200011-200303
47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH
main47722-30100i199708-200501
main47722-30120i200208-200303
main47722-30120i200011-200303
47730CYLINDER ASSY, FRONT DISC BRAKE, RH
main47730-30430i199708-200501
main47730-30500i200011-200303
main47730-30500i200208-200303
47731PISTON, FRONT DISC BRAKE
main47731-30170i199708-200501
sub47731-30140
47731ARING, SET(FOR FRONT DISC BRAKE PISTON)
main90520-52006i199708-200501
47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
main47743-30020i199708-200501
47750CYLINDER ASSY, DISC BRAKE, LH
main47750-30430i199708-200501
main47750-30500i200208-200303
main47750-30500i200011-200303
47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
main47769-50010i199708-200501
47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
main47775-30070i199708-200501
sub47775-50010
47781COVER, DISC BRAKE DUST, FRONT RH
main47781-30191i199708-200007
sub47781-30210
main47781-30210i200007-200501
47781BBOLT(FOR DUST COVER SETTING)
main90148-60028i199708-200501
47782COVER, DISC BRAKE DUST, FRONT LH
main47782-30191i199708-200007
sub47782-30210
main47782-30210i200007-200501

25 parts on this diagram · 1 diagram in section
