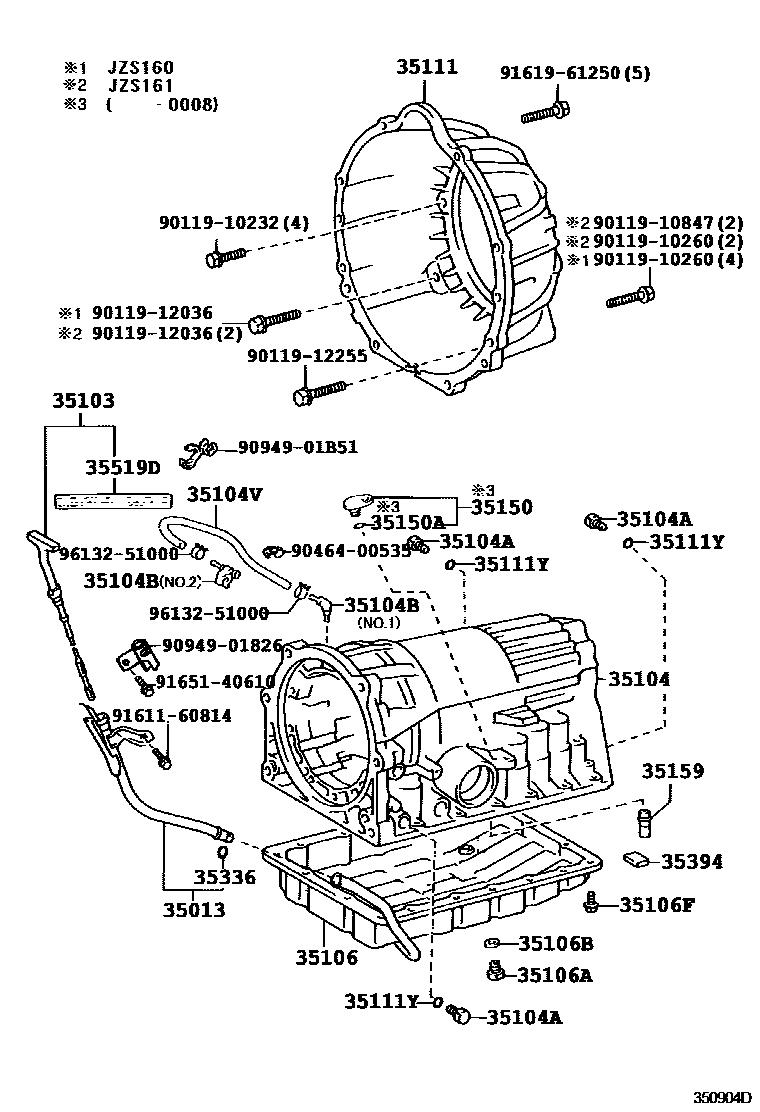

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A340E 0003 1A650E

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-30470iJZS160199708-200007

main35013-30480iJZS161199708

main35013-30500iJZS160200007

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-30570iJZS160199708-199908

main35103-30571iJZS160199908-200007

main35103-30580iJZS161199708-199908

main35103-30581iJZS161199908

main35103-30770iJZS160200007

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-22070iJZS161200008-200501

main35104-30170iJZS16#..4FC199708-200008

main35104-30200iJZS160200007-200501

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×2iJZS16#..4FC199708-200501

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03098iJZS16#199708

main90930-03149iJZS16#199708-200012

main90930-03168iJZS16#200012

35104VHOSE (FOR BREATHER PLUG)

main90447-11036iJZS160199708

main90447-11041iJZS161199708-200501

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-30130iJZS160199708-200007

main35106-30140iJZS161199708-200501

main35106-30210iJZS160200007-200501

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iJZS161;JZS160..5FC199708-200501

main90341-10018iJZS160199708-200007

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iJZS16#200304

main35178-50010iJZS16#199708-200304

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06513×18iJZS160200007-200501

main90119-06866iJZS160200007-200501

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-30140iJZS161199708-200501

main35111-30150iJZS160199708

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×2iJZS16#..4FC199708

35150PLUG ASSY, TRANSMISSION CASE

main35150-30010iJZS16#..4FC199708-200008

35150ARING, O (FOR AUTOMATIC TRANSMISSION CASE PLUG)

main90301-09012iJZS16#..4FC199708-200008

35159GASKET, BRAKE DRUM

main35159-30010iJZS16#..4FC199708

main35159-30020iJZS160200007-200501

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iJZS16#199708

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×3iJZS160199708

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-20030iJZS16#199908

main35519-30010iJZS16#199708-199908

9011910232

main90119-10232

9011910260

main90119-10260

9011910847

main90119-10847

9011912036

main90119-12036

9011912255

main90119-12255

9046400535

main90464-00535

9094901826

main90949-01826

9094901B51

main90949-01B51

9161160814

main91611-60814

9161961250

main91619-61250

9165140610

main91651-40610

9613251000

main96132-51000

30 parts on this diagram · 2 diagrams in section
