TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

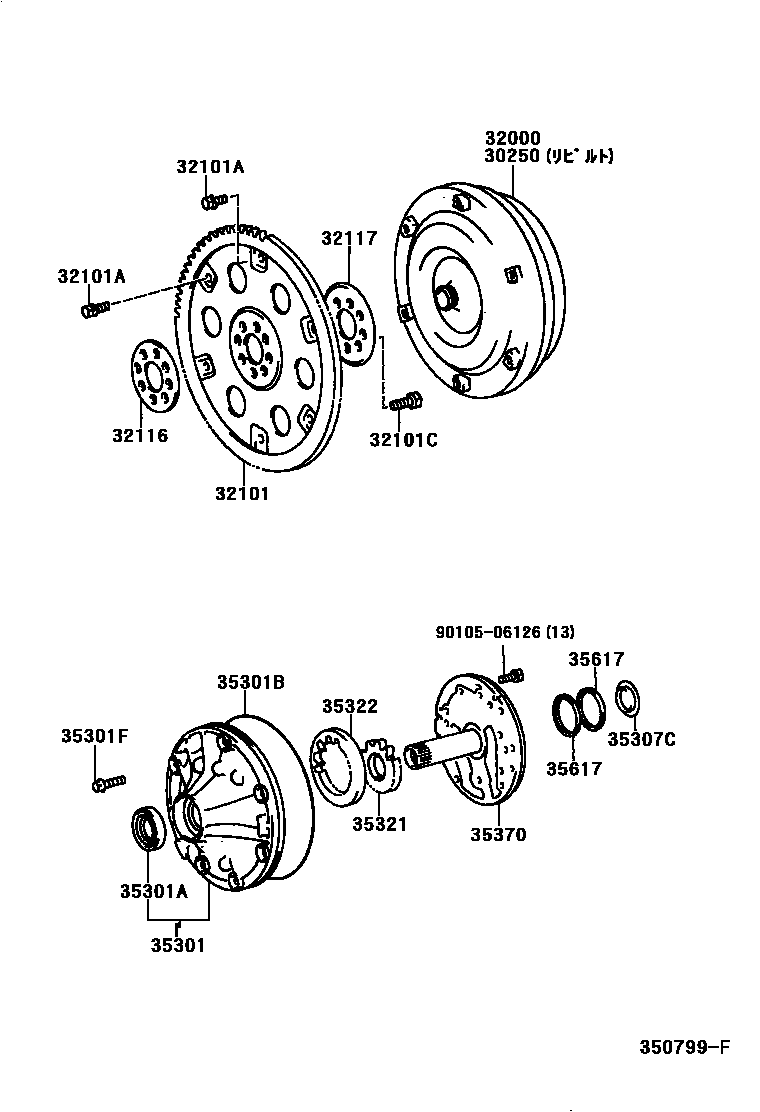

Parts diagram
30250CONVERTER ASSY, TORQUE, REBUILT
main30250-30311i199708-200501
main30250-30360i199708-200501
32000CONVERTER ASSY, TORQUE
main32000-30311i199708-200501
main32000-30360i199708-200501
32101GEAR SUB-ASSY, DRIVE PLATE & RING
main32101-22050i199708
main32101-30090i199708
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
main90105-09005i200007
main90105-09006i200007
main90105-10340i199708
main90105-10341i199708
sub90105-10547
main90119-09026i199708-200007
main90119-09027i199708-200007
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
main90105-10294i199708
32116SPACER, DRIVE PLATE, FRONT
main32116-22020i199708
32117SPACER, DRIVE PLATE, REAR
main32117-22020i199708
35301BODY SUB-ASSY, FRONT OIL PUMP
main35301-35010i199708
main35301-50020i200007-200501
35301ASEAL, OIL (FOR FRONT OIL PUMP)
main90311-38029i199708-200210
sub90311-38020
main90311-38087i200210
35301BRING, O (FOR FRONT OIL PUMP BODY)
main90301-99033i199708
35301FBOLT (FOR FRONT OIL PUMP SETTING)
main90105-08091i199708
35307CRACE, THRUST BEARING (FOR STATOR SHAFT)
main35789-30020i199708-199906
sub35789-30340
main35789-30340i199906
35321GEAR, FRONT OIL PUMP DRIVE
main35321-12020i199708
main35321-12030i199708
main35321-12040i199708
main35321-12050i199708
main35321-12060i199708
main35321-30030i200007-200501
main35321-30040i200007-200501
main35321-30050i200007-200501
main35321-30060i200007-200501
main35321-30070i200007-200501
35322GEAR, FRONT OIL PUMP DRIVEN
main35322-12010i199708
main35322-12020i199708
main35322-12030i199708
main35322-12040i199708
main35322-12050i199708
main35322-30020i200007-200501
main35322-30030i200007-200501
main35322-30040i200007-200501
main35322-30050i200007-200501
main35322-30060i200007-200501
35370SHAFT ASSY, STATOR
main35370-30031i199708-200007
main35370-30060i200007-200501
main35370-50010i199708-200501
35617RING, CLUTCH DRUM OIL SEAL
main35617-30020i199708
9010506126
main90105-06126

17 parts on this diagram · 1 diagram in section
