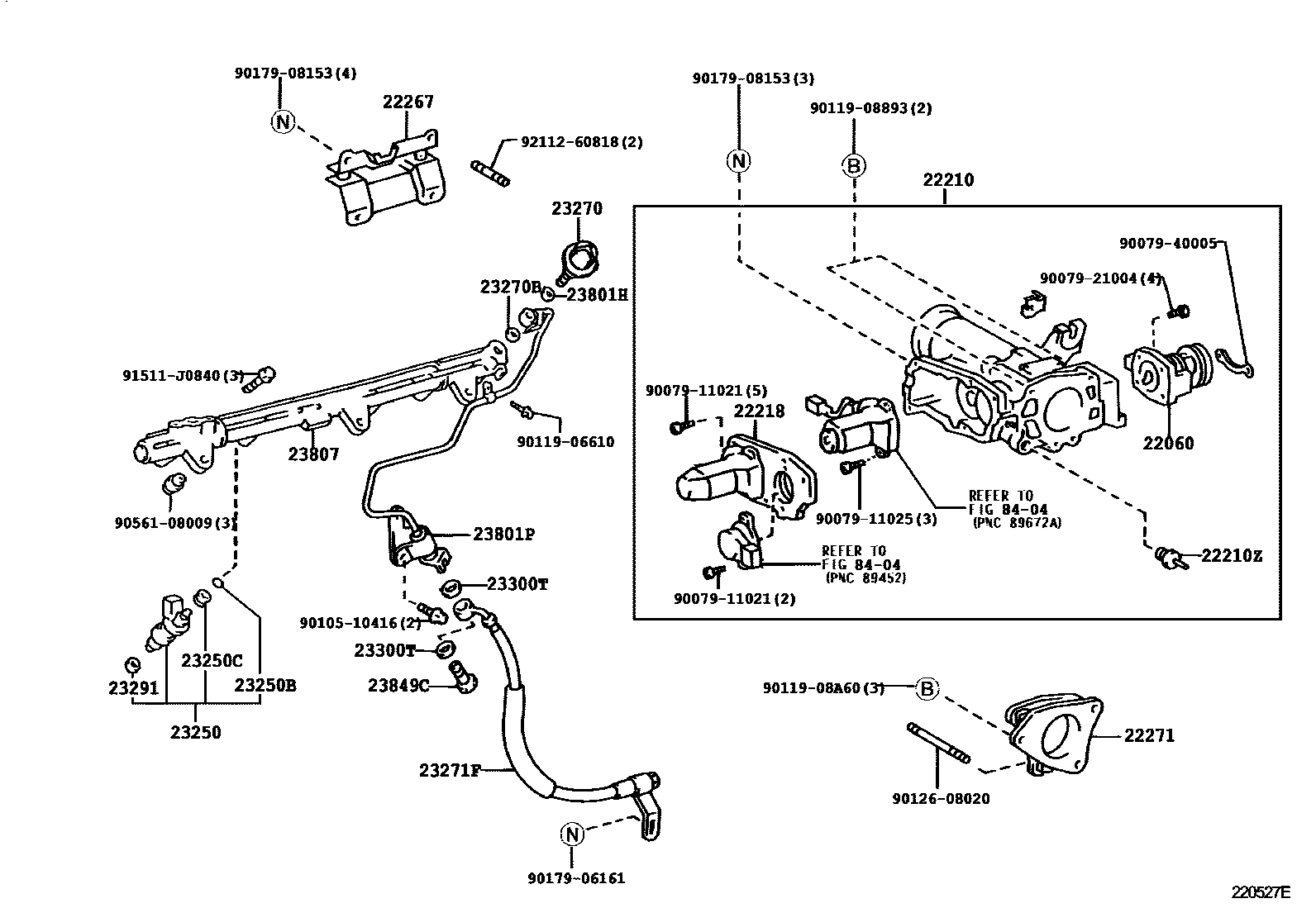

FUEL INJECTION SYSTEM
22060LEVER ASSY, THROTTLE W/SENSOR
22210BODY ASSY, THROTTLE
22210ZTHERMOSTAT, MANIFOLD
22218COVER(FOR THROTTLE BODY)
22267BRACKET, THROTTLE BODY
22271GASKET, THROTTLE BODY
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23270BGASKET(FOR PULSATION DAMPER HOSE)
23271FHOSE, FUEL
23291INSULATOR, INJECTOR VIBRATION
23300TGASKET(FOR FUEL FILTER)
23801HGASKET(FOR FUEL PIPE)
23801PPIPE SUB-ASSY, FUEL, NO.1
23849CBOLT, UNION(FOR FUEL PIPE SUPPORT)
8404
9007911021
main90079-11021
9007911025
main90079-11025
9007921004
main90079-21004
9007940005
main90079-40005
9010510416
main90105-10416
9011906610
main90119-06610
9011908893
main90119-08893
9011908A60
main90119-08A60
9012608020
main90126-08020
9017906161
main90179-06161
9017908153
main90179-08153
9056108009
main90561-08009
91511J0840
main91511-J0840
9211260818
main92112-60818
33 parts on this diagram · 5 diagrams in section
