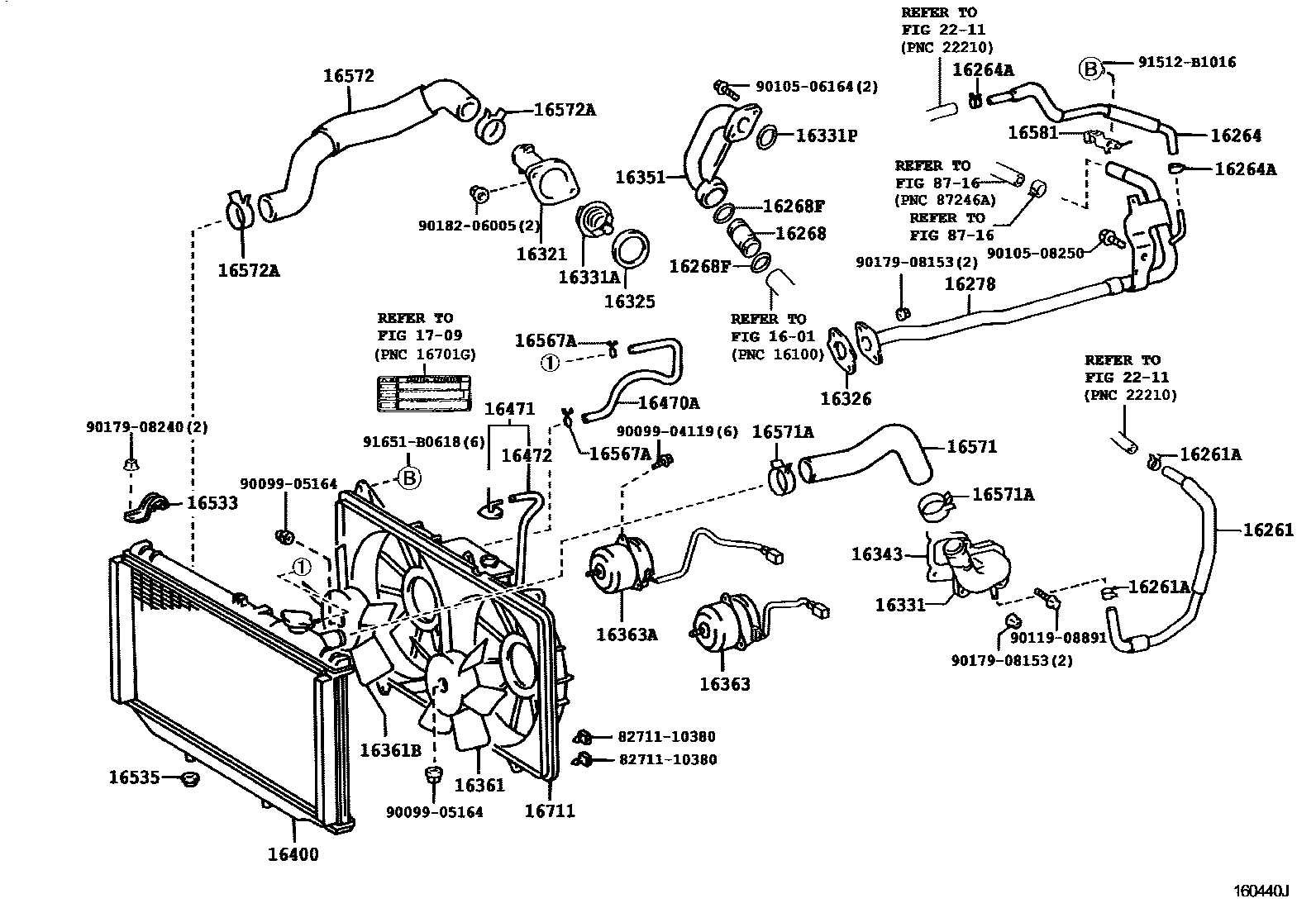

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1

1601

16261HOSE, WATER BY-PASS

main16261-46020i2JZGE..JZS160199708-200501

main16261-46050i2JZGTE..JZS161199708-200501

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-13050i2JZGE..JZS160199708-199808

sub96135-51300

main96135-51300i2JZGE..JZS160199708-200501

16264HOSE, WATER BY-PASS, NO.2

main16264-46041i2JZGE..JZS160199708-200501

main16264-46060i2JZGTE..JZS161199708-200501

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-13050i2JZGE..JZS160199708-199808

sub96135-51300

main96135-51300i2JZGTE..JZS161;2JZGE..JZS160..5FC199708-200501

16268PIPE, WATER BY-PASS, NO.1

main16268-46011i2JZGE..JZS160199708-200501

main16268-46020i2JZGTE..JZS161199708-200501

16268FRING, O(FOR WATER BY-PASS PIPE)

main96761-24022i2JZGE..JZS160199708-200501

main96761-24023i2JZGTE..JZS161199708-200501

16278PIPE, WATER BY-PASS, NO.2

main16278-46050i2JZGE..JZS160199708-199712

sub16278-46051

main16278-46051i2JZGE..JZS160199712-200501

main16278-46090i2JZGTE..JZS161199708-200501

16321INLET, WATER

main16321-46040i2JZGE..JZS160199708-200501

main16321-46050i2JZGTE..JZS161199708-200501

16325GASKET, WATER INLET HOUSING, NO.1

main16325-62010i2JZGE..JZS160199708-200501

16326GASKET, WATER INLET HOUSING, NO.2

main16325-46010i2JZGE..JZS160199708-200501

16331OUTLET, WATER

main16331-46041i2JZGE..JZS160199708-200501

main16331-46080i2JZGTE..JZS161199708-200501

16331ATHERMOSTAT

main90916-03093i2JZGE..JZS160199708-200501

16331PRING,O(FOR WATER OUTLET)

main96761-24028i2JZGE..JZS160199708-200501

16343GASKET, WATER OUTLET HOUSING

main16343-46020i2JZGE..JZS160199708-200501

main16343-46030i2JZGTE..JZS161199708-200501

16351OUTLET, WATER BY-PASS

main16351-46022i2JZGE..JZS160199708-200501

16361FAN

main16361-46080i2JZGE..JZS160199708

main16361-46100i2JZGTE..JZS161199708

16361BFAN, NO.2

main16361-46090i2JZGE..JZS160199708

main16361-46110i2JZGTE..JZS161199708

16363MOTOR, COOLING FAN

main16363-46050i2JZGE..JZS160199708-200304

sub16363-46190

main16363-46070i2JZGTE..JZS161199708-200501

main16363-46190i2JZGE..JZS160200305-200501

16363AMOTOR, COOLING FAN, NO.2

main16363-46040i2JZGE..JZS160199708-200304

sub16363-46180

main16363-46180i2JZGE..JZS160200305-200501

16400RADIATOR ASSY

main16400-46570i2JZGE..JZS160199708-200501

main16400-46590i2JZGTE..JZS161199708-200411

sub16400-46591

main16400-46591i2JZGTE..JZS161200412-200501

16470TANK ASSY, RADIATOR RESERVE

main16470-46140i2JZGTE..JZS161199708

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16377-46080i2JZGE..JZS160199708

main90445-12078i2JZGTE..JZS161199708

16471CAP SUB-ASSY, RESERVE TANK

main16405-46070i2JZGTE..JZS161199708-200501

main16405-46080i2JZGE..JZS160199708-200501

16472HOSE, BREATHER

main90445-12117i2JZGE..JZS160199708

16533SUPPORT, RADIATOR, UPPER

main16505-50080i2JZ#..JZS16#199708

16535SUPPORT, RADIATOR, LOWER

main90480-40016i2JZ#..JZS16#199708

16567ACLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i2JZGE..JZS160199708

16571HOSE, RADIATOR, INLET

main16571-46200i2JZGE..JZS160199708

main16571-46210i2JZGTE..JZS161199708

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37005i2JZ#..JZS16#199708

16572HOSE, RADIATOR, OUTLET

main16572-46210i2JZGE..JZS160199708

main16572-46220i2JZGTE..JZS161199708

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-41003i2JZ#..JZS16#200202-200308

main90466-41008i2JZ#..JZS16#200308-200410

main90467-41007i2JZ#..JZS16#199708-200201

sub90467-41002

main96136-54801i2JZ#..JZS16#200410

16581CLAMP, HOSE(FOR WATER HOSE)

main16581-46040i2JZGE..JZS160199808-200501

16711SHROUD, FAN

main16711-46260i2JZGE..JZS160199708

main16711-46270i2JZGTE..JZS161199708

1709

2211

8716

8271110380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10380

9009904119

main90099-04119

9009905164

main90099-05164

9010506164

main90105-06164

9010508250

main90105-08250

9011908891

main90119-08891

9017908153

main90179-08153

9017908240

main90179-08240

9018206005

main90182-06005

91512B1016

main91512-B1016

91651B0618

main91651-B0618

48 parts on this diagram · 3 diagrams in section
