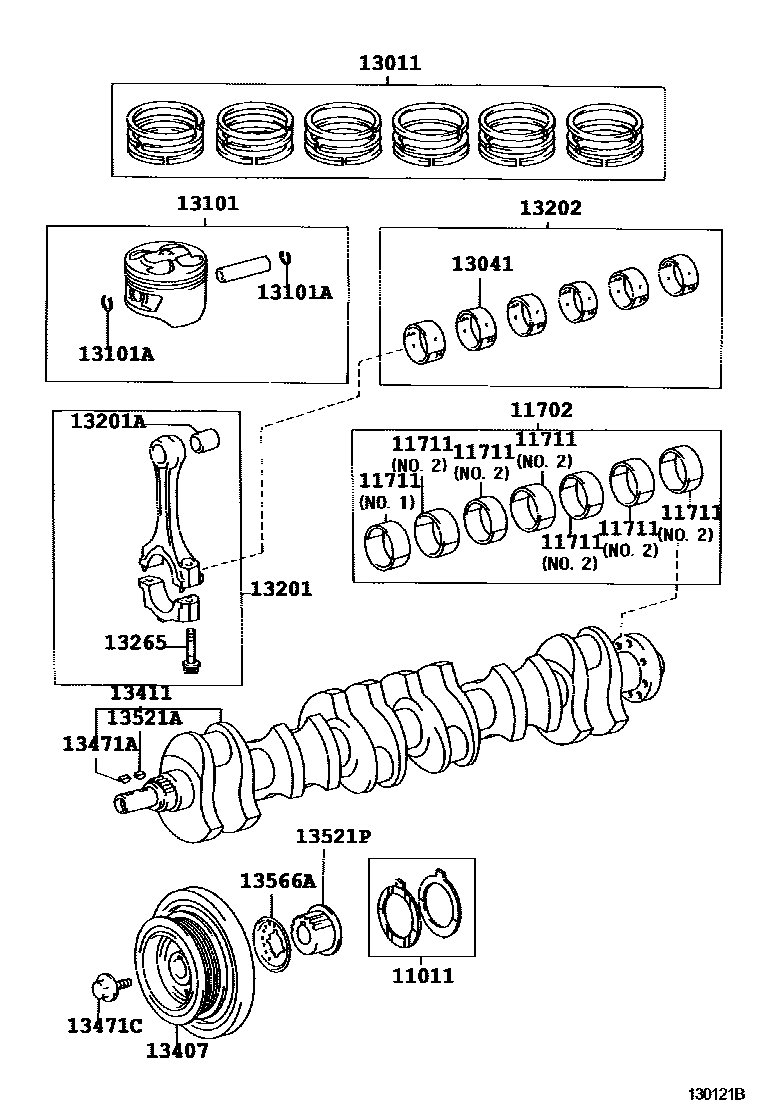

CRANKSHAFT & PISTON

11011WASHER SET, CRANKSHAFT THRUST

main11011-46030i2JZGE..JZS160¥2,110199708-200501

11702BEARING SET, CRANKSHAFT

main11704-46020i2JZ#..JZS16#¥33,000199708-199906

sub11704-46030¥20,600

main11704-46030i2JZGE..JZS160¥20,600199906-200107

main11704-46040i2JZ#..JZS16#¥29,600200107-200501

11711BEARING, CRANKSHAFT

main11071-46010-01i2JZ#..JZS16#199708-199906

sub11071-46020¥3,880

main11071-46010-02i2JZ#..JZS16#199708-199906

sub11071-46020¥3,880

main11071-46010-03i2JZ#..JZS16#199708-199906

sub11071-46020¥3,880

main11071-46010-04i2JZ#..JZS16#199708-199906

sub11071-46020¥3,880

main11071-46010-05i2JZ#..JZS16#199708-199906

sub11071-46020¥3,880

main11071-46020-01i2JZGTE..JZS161;2JZGE..JZS160..5FC199906-200106

main11071-46020-02i2JZGE..JZS160199906-200106

main11071-46020-03i2JZGE..JZS160199906-200106

main11071-46020-04i2JZGTE..JZS161;2JZGE..JZS160..5FC199906-200106

main11071-46020-05i2JZGTE..JZS161;2JZGE..JZS160..5FC199906-200106

main11071-46030-01i2JZ#..JZS16#200106-200501

main11071-46030-02i2JZ#..JZS16#200106-200501

main11071-46030-03i2JZ#..JZS16#200106-200501

main11071-46030-04i2JZ#..JZS16#200106-200501

main11071-46030-05i2JZ#..JZS16#200106-200501

main11701-46010-01i2JZ#..JZS16#199708-199906

sub11701-46020¥3,650

main11701-46010-02i2JZ#..JZS16#199708-199906

sub11701-46020¥3,650

main11701-46010-03i2JZ#..JZS16#199708-199906

sub11701-46020¥3,650

main11701-46010-04i2JZ#..JZS16#199708-199906

sub11701-46020¥3,650

main11701-46010-05i2JZ#..JZS16#199708-199906

sub11701-46020¥3,650

main11701-46020-01i2JZGE..JZS160199906-200501

main11701-46020-02i2JZGE..JZS160199906-200501

main11701-46020-03i2JZGTE..JZS161;2JZGE..JZS160..5FC199906-200501

main11701-46020-04i2JZGTE..JZS161;2JZGE..JZS160..5FC199906-200501

main11701-46020-05i2JZGTE..JZS161;2JZGE..JZS160..5FC199906-200501

13011RING SET, PISTON

main13011-46041i2JZGE..JZS160¥27,800199708-200501

main13011-46051i2JZGTE..JZS161¥20,100199708-200501

13041BEARING, CONNECTING ROD

main13041-46012-01i2JZ#..JZS16#199708-199906

sub13041-46013¥2,110

main13041-46012-02i2JZ#..JZS16#199708-199906

sub13041-46013¥2,110

main13041-46012-03i2JZ#..JZS16#199708-199906

sub13041-46013¥2,110

main13041-46012-04i2JZ#..JZS16#199708-199906

sub13041-46013¥2,110

main13041-46012-05i2JZ#..JZS16#199708-199906

sub13041-46013¥2,110

main13041-46013-01i2JZGE..JZS160199906-200108

main13041-46013-02i2JZGE..JZS160199906-200108

main13041-46013-03i2JZGTE..JZS161;2JZGE..JZS160..5FC199906-200108

main13041-46013-04i2JZGE..JZS160199906-200108

main13041-46013-05i2JZGE..JZS160199906-200108

main13041-46020-01i2JZ#..JZS16#200108-200501

main13041-46020-02i2JZ#..JZS16#200108-200501

main13041-46020-03i2JZ#..JZS16#200108-200501

main13041-46020-04i2JZ#..JZS16#200108-200501

main13041-46020-05i2JZ#..JZS16#200108-200501

13101PISTON SUB-ASSY, W/PIN

main13101-46080i2JZGE..JZS160¥8,100199708-199908

sub13101-46081¥8,200

main13101-46081i2JZGE..JZS160¥8,200199908-200501

main13101-46090i2JZGTE..JZS161¥8,100199708-199908

sub13101-46091¥8,200

main13101-46091i2JZGTE..JZS161¥8,200199908-200501

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90521-25004i2JZGTE..JZS161;2JZGE..JZS160..5FC¥190199708-200501

sub90520-22025¥110

13201ROD SUB-ASSY, CONNECTING

main13201-46040i2JZGTE..JZS161¥13,400199708-200501

main13201-46060i2JZGE..JZS160¥13,900199708-199907

sub13201-46061¥13,900

main13201-46061i2JZGE..JZS160¥13,900199907-200501

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73128i2JZGE..JZS160¥260199708-200501

13202BEARING SET, CONNECTING ROD

main13204-46022i2JZ#..JZS16#¥15,400199708-199909

sub13204-46023¥15,300

main13204-46023i2JZGE..JZS160¥15,300199909-200108

main13204-46030i2JZ#..JZS16#¥17,200200108-200501

13265BOLT, CONNECTING ROD

main13265-46020i2JZGE..JZS160¥500199708-200501

13407DAMPER SUB-ASSY, CRANKSHAFT

main13407-46020i2JZGTE..JZS161;2JZGE..JZS160..5FC¥21,700199708-200501

13411CRANKSHAFT

main13401-46020i2JZ#..JZS16#¥140,000199708-199907

sub13401-46021¥140,000

main13401-46021i2JZGE..JZS160¥140,000199907-200008

sub13401-46022¥140,000

main13401-46022i2JZ#..JZS16#¥140,000200008-200501

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-05005i2JZ#..JZS16#¥110199708-200501

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-18002i2JZGE..JZS160¥900199708-200501

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90280-05005i2JZ#..JZS16#¥110199708-200501

13521PPULLEY, CRANKSHAFT TIMING

main13521-46040i2JZGE..JZS160¥6,300199708-200501

13566AGUIDE, TIMING BELT

main13566-46010i2JZGE..JZS160¥670199708-200501

18 parts on this diagram · 1 diagram in section
