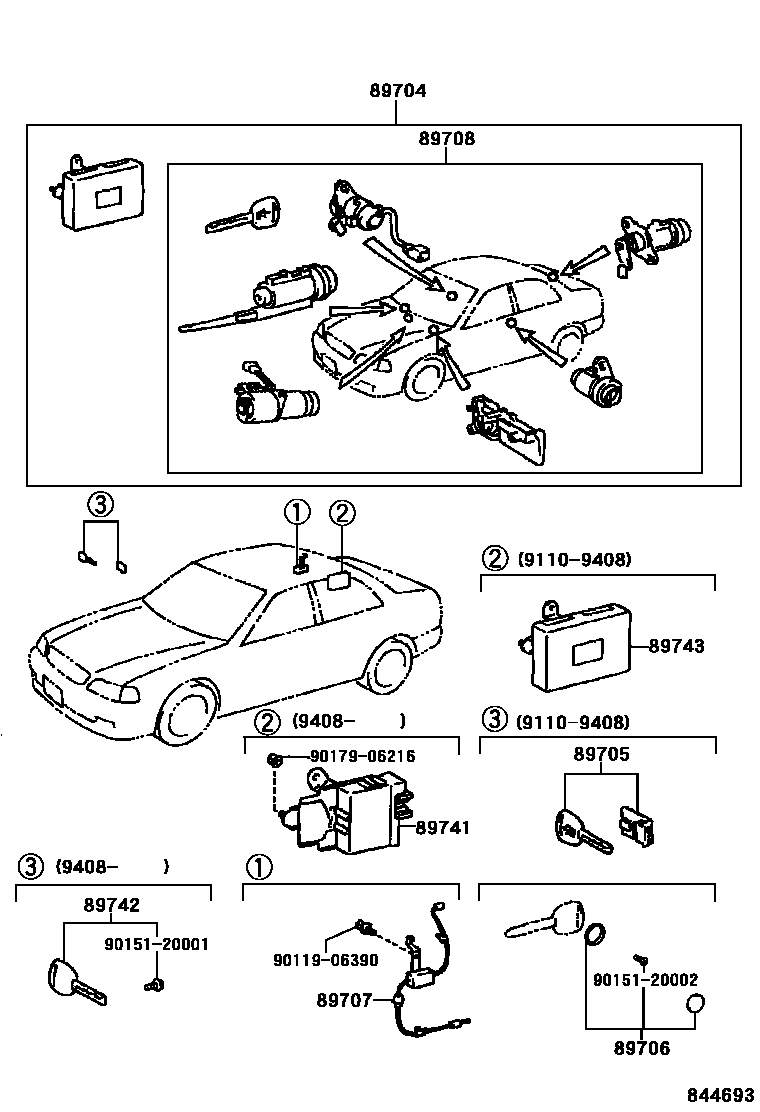

WIRELESS DOOR LOCK

89704CONTROL SET, WIRELESS DOOR LOCK

main89704-30060iJZS147,UZS143199110-199408

sub89708-30010

main89704-30200iJZS147,UZS143199408-199503

sub89708-30130

89705TRANSMITTER, DOOR CONTROL

main89705-50031iJZS147,UZS143199110-199408

89706BATTERY SET, TRANSMITTER

main89706-50010iJZS147,UZS143199110-199708

sub89745-48020

sub90151-20002

sub90301-14005

89707CORD SUB-ASSY, WIRELESS DOOR LOCK

main89707-30010iJZS147,UZS143199110-199708

89708CYLINDER SET, WIRELESS DOOR LOCK

main89708-30130iJZS147,UZS143199503-199708

89741RECEIVER, DOOR CONTROL

main89741-30130iJZS147,UZS143199408-199708

89742TRANSMITTER, DOOR CONTROL

main89742-30170iJZS147,UZS143199408-199708

89743RECEIVER, DOOR CONTROL

main89743-30030iJZS147,UZS143199110-199408

9011906390

main90119-06390

9015120001

main90151-20001

9015120002

main90151-20002

9017906216

main90179-06216

12 parts on this diagram · 1 diagram in section
