TRACTION CONTROL

84988SWITCH, TRACTION CONTROL

main84988-30040iJZS147199110-199708

86650JBUZZER ASSY

main86650-30130iJZS147199110-199708

89452CSENSOR, THROTTLE POSITION

main89452-22090iJZS147199408-199708

main89452-33010iJZS147199110-199408

sub89452-22090

sub89452-32060

89631COMPUTER, TRACTION CONTROL

main89631-30070iJZS147..V199110-199708

main89631-30080iJZS147..Q199110-199708

89632MOTOR, TRACTION THROTTLE VALVE

main89632-24010iJZS147..Q199110-199708

main89632-30030iJZS147..V199110-199708

89633RELAY, TRACTION CONTROL

main89633-24010iJZS147,UZS143199110-199708

89634BRACKET, TRACTION CONTROL COMPUTER

main89634-30030iJZS147199110-199708

main89634-30040iJZS147199110-199708

89637SENSOR, OIL PRESSURE

main89637-24010iJZS147,UZS143199110-199708

89639WIRE, BRAKE CONTROL

main89639-30010iJZS147,UZS143199110-199708

9011906120

main90119-06120

9011906514

main90119-06514

9326954010

main93269-54010

9356855014

main93568-55014

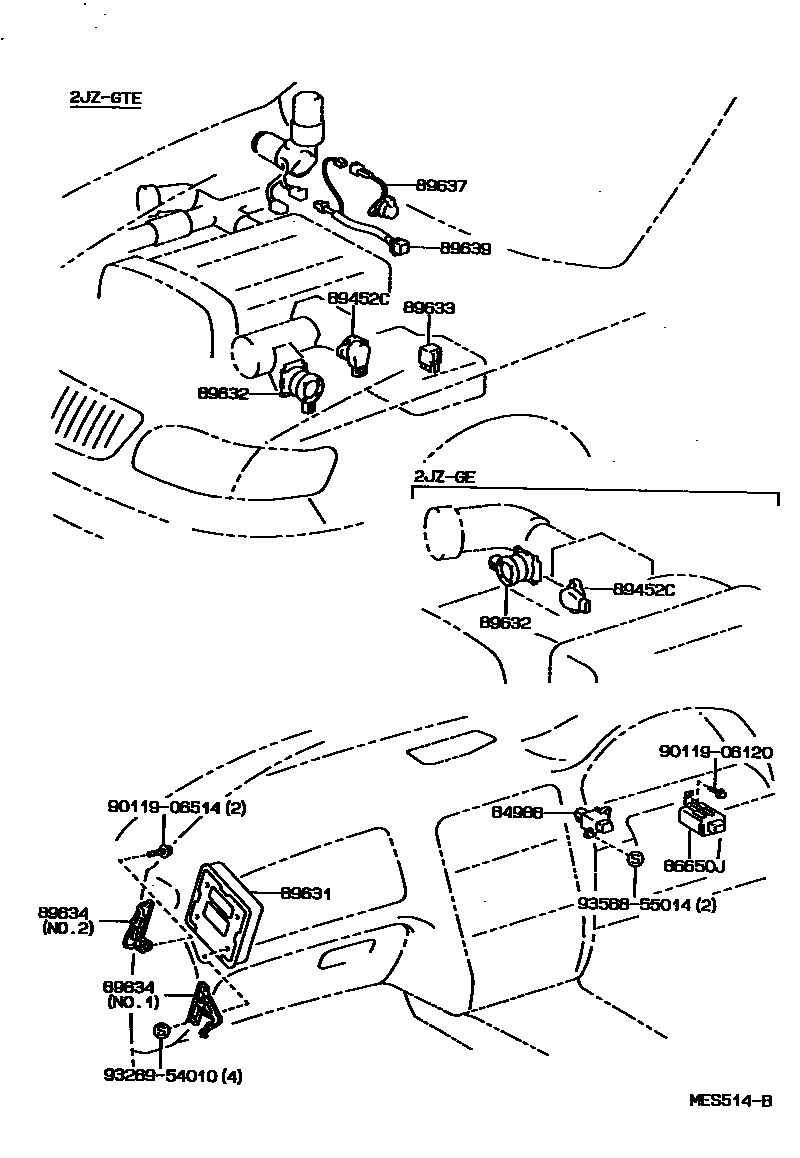

13 parts on this diagram · 1 diagram in section
