SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1����� & ��������� 0003 1����� �-� 0004 1������������ ���� 0005 1��� RH 0006 1��� LH 0007 1�������� & �����-��� ���� 0008 1�-�,�-�,������� & ��� ���� 0009 1�����,���-��(����) ����

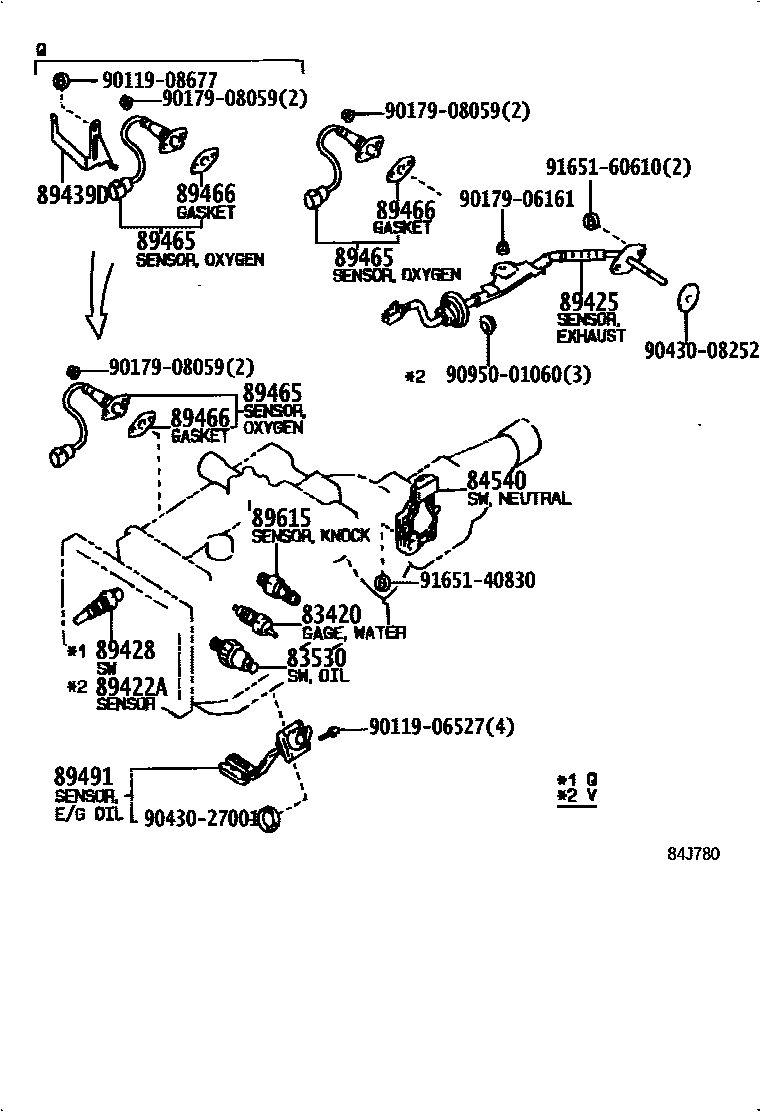

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iJZS147..V199110-199210

main83420-16040iJZS147..Q199211-199708

main83420-16060iJZS147..V199301-199708

sub83420-20040

main83420-20020iJZS147..Q199110-199211

main83420-20030iJZS147..Q199211-199708

sub83420-16040

main83420-20040iJZS147,UZS143..V,Z199210-199708

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-30080iJZS147199110-199211

sub83530-60040

main83530-30090iUZS143199210-199708

sub83530-60020

main83530-30090iJZS147199211-199708

sub83530-60020

84540SWITCH ASSY, NEUTRAL START

main84540-30270iJZS147,UZS143199110-199708

main84540-30270iJZS147,UZS143199308-199708

main84540-30280iJZS147,UZS143199110-199308

sub84540-30270

89422ASENSOR, WATER TEMPERATURE

main89429-24020iJZS147,UZS143..V,Z199110-199708

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-39375iJZS147..V199110-199708

main89425-39395iJZS147..Q199110-199708

main89425-39425iUZS143199210-199708

NO.1 L=1180

main89425-39435iUZS143199210-199708

NO.2 L=1240

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-24010iJZS147..Q199110-199708

89439BRACKET, SENSOR

main89439-30020iJZS147,UZS143199110-199708

89439DBRACKET, SENSOR, NO.1

main89439-30050iJZS147..V199110-199708

89465SENSOR, OXYGEN

main89465-30310iUZS143199508-199708

main89465-39545iJZS147..V199110-199708

main89465-39555iJZS147..Q199110-199708

REAR

main89465-39565iJZS147..Q199110-199708

FRONT

main89465-50040iUZS143199210-199508

89466GASKET, OXYGEN SENSOR

main89466-20020iJZS147..V199110-199708

89491SENSOR, ENGINE OIL LEVEL

main89491-30010iJZS147199110-199708

main89491-30040iUZS143199304-199708

main89491-50020iUZS143199210-199304

89615SENSOR, KNOCK CONTROL

main89615-22030iJZS147199110-199708

main89615-22040iJZS147199110-199708

main89615-50010iUZS143199210-199708

9011906527

main90119-06527

9011908677

main90119-08677

9017906161

main90179-06161

9017908059

main90179-08059

9043008252

main90430-08252

9043027001

main90430-27001

9095001060

main90950-01060

9165140830

main91651-40830

9165160610

main91651-60610

21 parts on this diagram · 9 diagrams in section
