WIRING & CLAMP

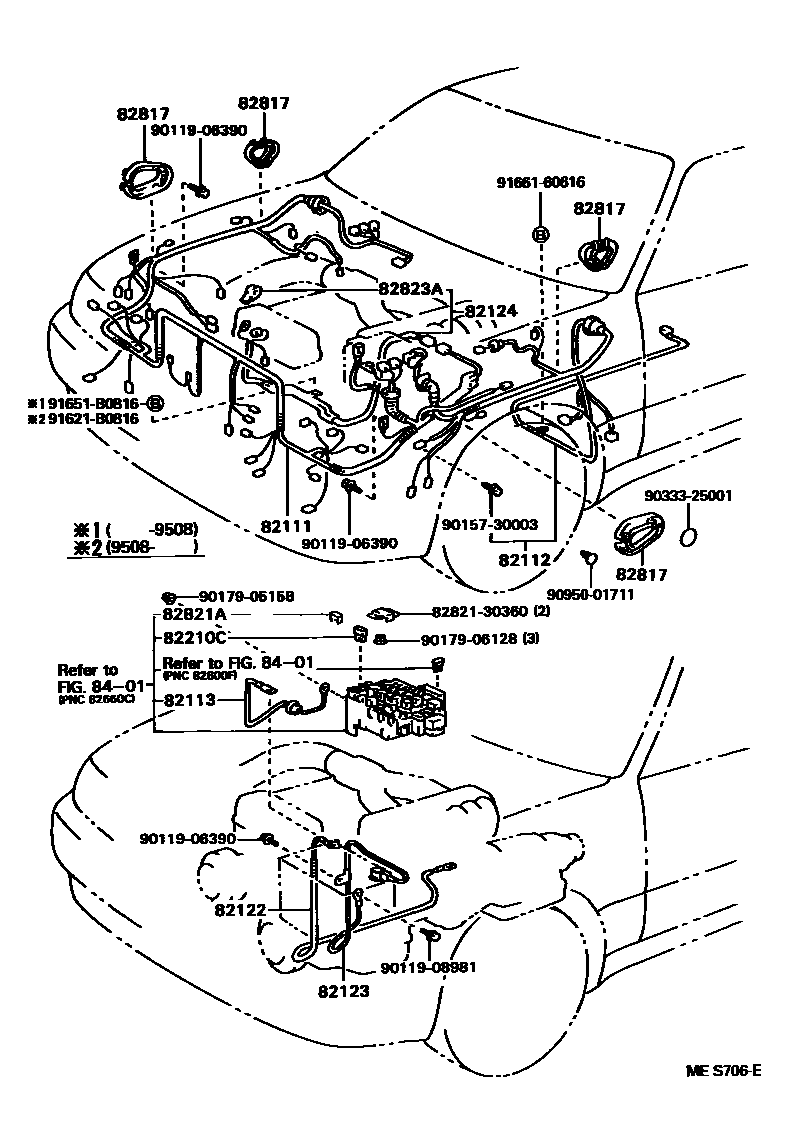

Parts diagram
82111WIRE, ENGINE ROOM MAIN
main82111-3F270i199110-199708
main82111-3F280i199110-199508
main82111-3F290i199210-199508
main82111-3F290i199110-199210
main82111-3F291i199508-199608
main82111-3F291i199608-199708
main82111-3F300i199110-199210
main82111-3F300i199210-199508
main82111-3F301i199508-199608
main82111-3F301i199608-199708
main82111-3F470i199210-199308
main82111-3F471i199308-199508
main82111-3F472i199508-199708
main82111-3F530i199210-199508
main82111-3F531i199508-199608
82112WIRE, ENGINE ROOM, NO.2
main82112-30490i199110-199308
main82112-30500i199110-199308
main82112-30510i199110-199408
main82112-30511i199408-199508
main82112-30512i199508-199708
main82112-30520i199110-199408
main82112-30521i199408-199708
main82112-30530i199110-199308
main82112-30540i199110-199408
main82112-30541i199408-199508
main82112-30590i199210-199308
main82112-30630i199210-199408
main82112-30631i199408-199508
main82112-30632i199508-199708
82113WIRE, ENGINE ROOM, NO.3
main82113-30400i199110-199708
82122WIRE, ENGINE, NO.2
main82122-30370i199110-199212
main82122-30371i199212-199308
main82122-30460i199210-199508
main82122-30461i199508-199708
main82122-30480i199308-199708
82123WIRE, ENGINE, NO.3
main82123-30200i199110-199308
main82123-30210i199308-199708
main82123-30230i199210-199708
82124WIRE, ENGINE, NO.4
main82124-30120i199110-199308
main82124-30121i199308-199708
main82124-30130i199110-199308
main82124-30131i199308-199708
main82124-30140i199210-199708
NO.1
main82124-50073i199210-199409
NO.2
main82124-50110i199409-199708
NO.3
82210CFUSIBLE LINK
main90982-08188i199110-199708
main90982-08189i199110-199708
main90982-08202i199110-199708
main90982-08227i199110-199708
main90982-08270i199110-199708
main90982-08271i199308-199508
main90982-08271i199210-199708
82817PROTECTOR, WIRING HARNESS, NO.1
main82817-3F090i199110-199708
FRONT APRON RH
main82817-3F090i199110-199210
FR0NT APRON RH
main82817-3F090i199110-199210
main82817-3F090i199110-199708
FRONT APRON LH
main82817-3F210i199110-199708
FENDER GUSSET RH
main82817-3F220i199110-199708
FENDER GUSSET LH
main82817-3F240i199110-199708
REAR APRON RH
main82817-3F240i199210-199608
main82817-3F240i199110-199708
REAR APRON LH
82821ACOVER, CONNECTOR
main82821-30460i199110-199708
82823ACAP, TERMINAL, NO.2
main82823-22070i199110-199708
8401
8282130360RETAINER, HEADLAMP HARNESS
main82821-30360
9011906390
main90119-06390
9011908981
main90119-08981
9015730003
main90157-30003
9017905158
main90179-05158
9017906128
main90179-06128
9033325001
main90333-25001
9095001711
main90950-01711
91621B0816
main91621-B0816
91651B0816
main91651-B0816
9166160616
main91661-60616

22 parts on this diagram · 17 diagrams in section
