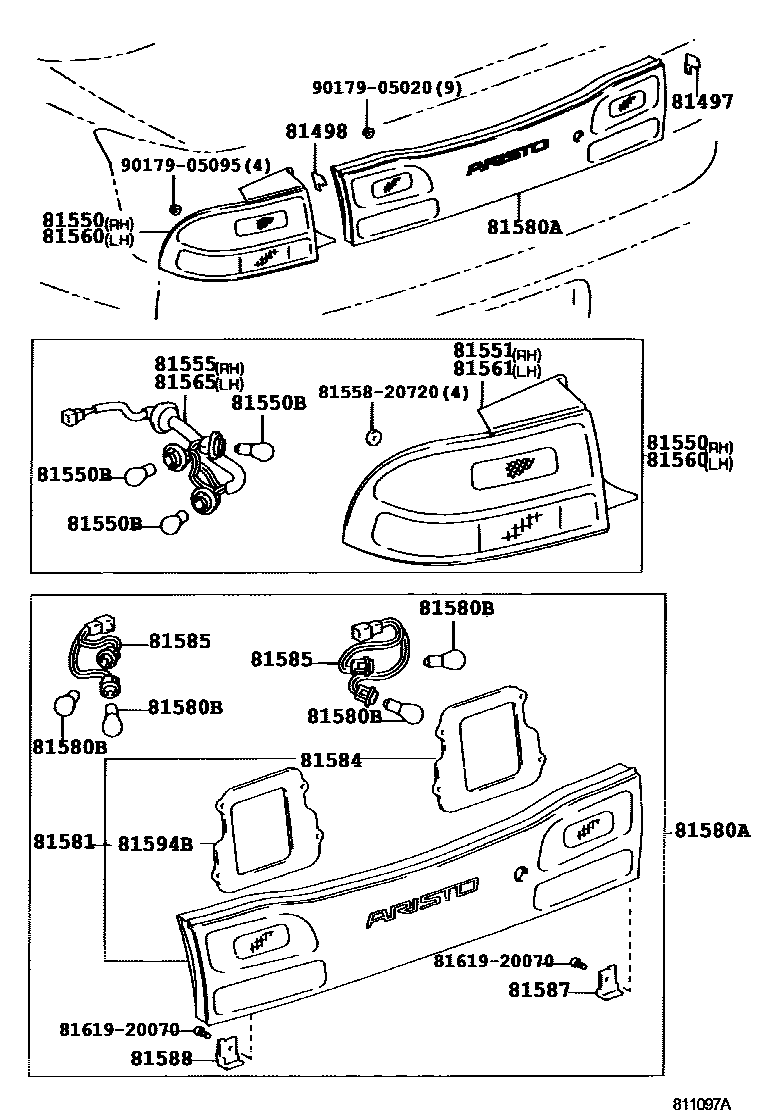

REAR COMBINATION LAMP
81497COVER, REAR COMBINATION LAMP, RH
81498COVER, REAR COMBINATION LAMP, LH
81550LAMP ASSY, REAR COMBINATION, RH
81550BBULB(FOR REAR COMBINATION LAMP)
81551LENS, REAR COMBINATION LAMP, RH
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81560LAMP ASSY, REAR COMBINATION, LH
81561LENS, REAR COMBINATION LAMP, LH
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81580ALAMP ASSY, REAR
81581LENS, REAR LAMP
81584PACKING, REAR LAMP RH
81585SOCKET & WIRE, REAR LAMP
81587PROTECTOR, REAR LAMP, RH
81588PROTECTOR, REAR LAMP, LH
81594BPACKING, REAR LAMP LH
8155820720SHADE, REAR COMBINATION LAMP, NO.1 RH
main81558-20720
8161920070
main81619-20070
9017905020
main90179-05020
9017905095
main90179-05095
21 parts on this diagram · 1 diagram in section
