CAUTION PLATE (EXTERIOR & INTERIOR)

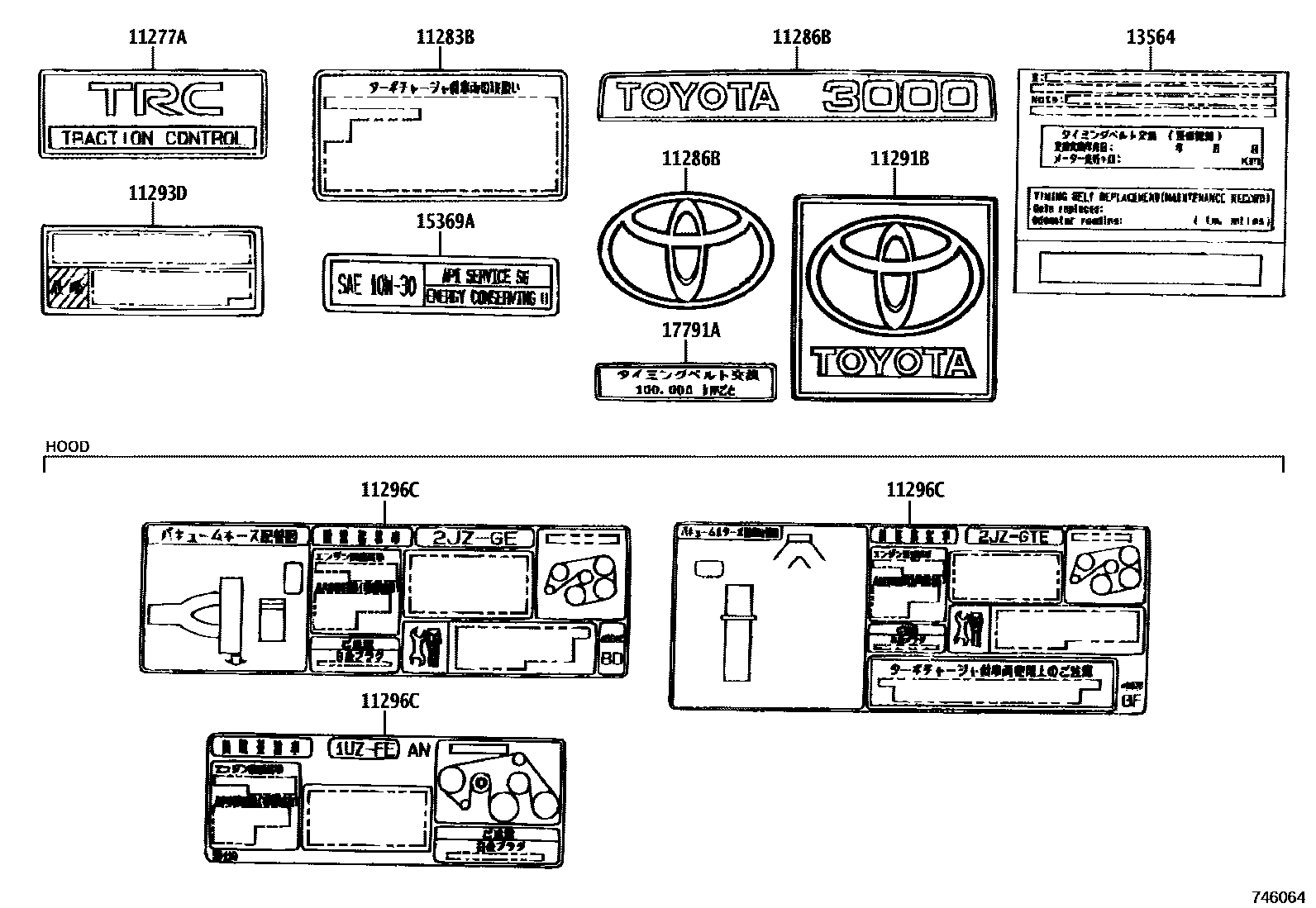

Parts diagram
11277APLATE, ENGINE SPECIFICATION, NO.2
main11277-46040i199110-199308
sub11277-46100
main11277-46060i199110-199708
sub11277-42020
main11277-46100i199308-199708
11283BLABEL, LEAK DETECTION PUMP INFORMATION
main11294-46010i199110-199308
sub11294-55010
main11294-55010i199308-199708
11286BPLATE, ENGINE SPECIFICATION
main11286-46020i199110-199210
sub11286-62020
main11286-46040i199110-199302
main11286-46060i199210-199308
sub11286-46061
main11286-46061i199308-199708
11291BPLATE, ENGINE NAME
main11291-50040i199210-199409
sub11291-50041
main11291-50041i199409-199708
11293DLABEL, ENGINE CAUTION
main11293-50020i199210-199506
11296CLABEL, ENGINE SERVICE INFORMATION
main11296-46060i199110-199504
sub11296-46230
main11296-46070i199110-199504
sub11296-46240
main11296-46080i199504-199708
sub11296-46360
main11296-46240i199504-199708
main11296-50140i199210-199504
sub11296-50230
main11296-50230i199504-199708
13564LABEL, TIMING BELT REPLACEMENT INFORMATION
main13564-10010i199110
15369ALABEL, ENGINE OIL INFORMATION
main15369-46010i199301-199403
sub15369-46020
main15369-46020i199403-199708
17791ALABEL, MAINTENANCE INFORMATION
main17791-55010i199203-199204
main17791-74040i199204-199708

9 parts on this diagram · 2 diagrams in section
