EPC Data

SEAT BELT & CHILD RESTRAINT SEAT

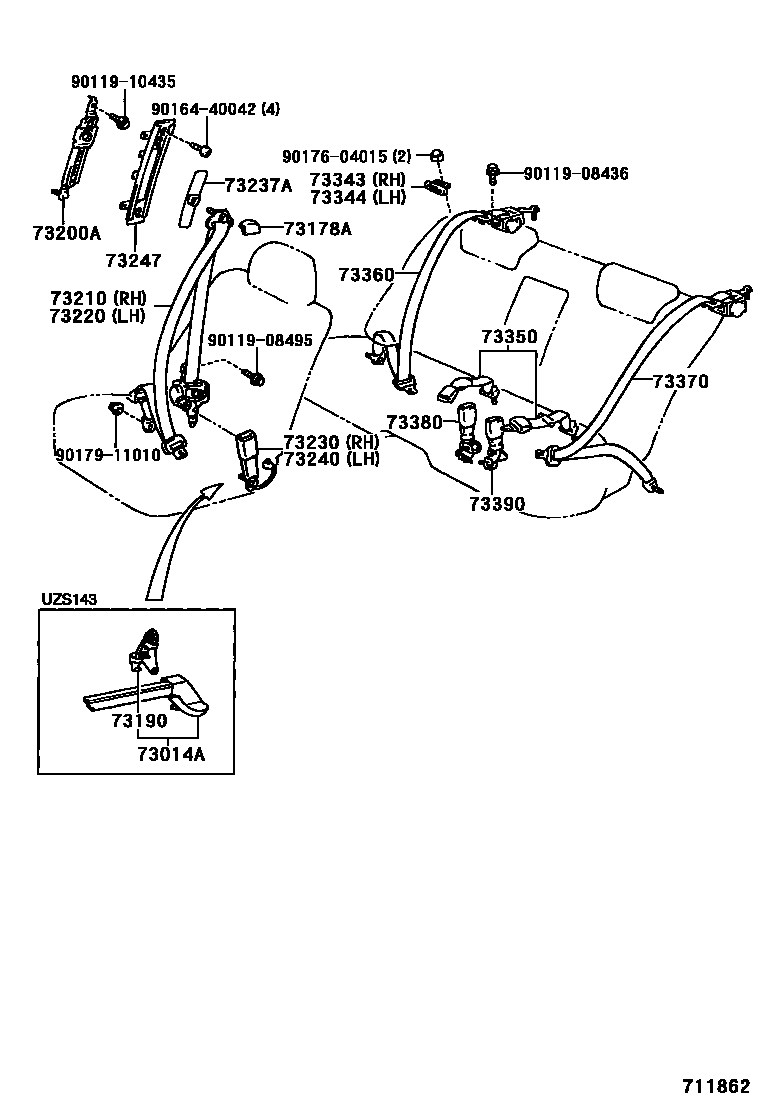

Parts diagram
73014APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH
main73014-30050-A0i199210-199708
IVORY,TRIM0#
sub73014-30050
main73014-30050-B0i199210-199708
SHADOW GRAY,TRIM1#
sub73014-30050
main73014-30050-G0i199210-199708
LI.SPRUCE,TRIM6#
sub73014-30050
73178ACAP, SEAT BELT ANCHOR COVER
main73178-30020-A0i199110-199708
IVORY,TRIM0#
sub73178-30020
main73178-30020-B0i199110-199708
LI.GRAY,TRIM1#
sub73178-30020
main73178-30020-G0i199110-199708
LI.SPRUCE,TRIM6#
sub73178-30020
73190BRACKET ASSY, SEAT BELT INNER ANCHOR, LH
main73012-30070i199210-199708
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-30050i199110-199411
sub73200-30053
sub90119-08901
main73200-30052i199411-199607
main73200-30053i199607-199708
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-30481-A0i199110-199304
sub73210-30481
main73210-30481-B0i199110-199304
sub73210-30481
main73210-30481-G0i199110-199304
sub73210-30481
main73210-30482-A0i199304-199312
main73210-30482-B0i199304-199312
main73210-30482-G0i199304-199312
main73210-30484-A0i199312-199408
main73210-30484-B0i199312-199408
main73210-30484-B4i199408-199508
main73210-30484-E1i199408-199508
main73210-30484-G0i199312-199408
main73210-30484-G3i199408-199508
main73210-30491-A0i199110-199312
IVORY,TRIM0#
sub73210-30491
main73210-30491-B0i199110-199312
SHADOW GRAY,TRIM1#
sub73210-30491
main73210-30491-G0i199110-199312
LI.SPRUCE,TRIM6#
sub73210-30491
main73210-30492-A0i199312-199408
IVORY,TRIM0#
main73210-30492-B0i199312-199408
MD.GRAY,TRIM1#
main73210-30492-B3i199408-199508
BLUISH GRAY,TRIM1#
main73210-30492-E0i199408-199508
MD.OAK,TRIM0#
main73210-30492-G0i199312-199408
SPRUCE,TRIM6#
main73210-30492-G2i199408-199508
DK.SPRUCE GRAY,TRIM6#
main73210-30700-B0i199508-199708
BLUISH GRAY,TRIM1#
sub73210-30700
main73210-30700-E0i199508-199708
MD.OAK,TRIM0#
sub73210-30700
main73210-30700-G0i199508-199708
DK.SPRUCE GRAY,TRIM6#
sub73210-30700
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-30361-A0i199110-199304
main73220-30361-B0i199110-199304
main73220-30361-G0i199110-199304
main73220-30362-A0i199304-199312
main73220-30362-B0i199304-199312
main73220-30362-G0i199304-199312
main73220-30364-A0i199312-199408
main73220-30364-B0i199312-199408
main73220-30364-B4i199408-199508
main73220-30364-E1i199408-199508
main73220-30364-G0i199312-199408
main73220-30364-G3i199408-199508
main73220-30371-A0i199110-199312
IVORY,TRIM0#
main73220-30371-B0i199110-199312
SHADOW GRAY,TRIM1#
main73220-30371-G0i199110-199312
LI.SPRUCE,TRIM6#
main73220-30372-A0i199312-199408
IVORY,TRIM0#
main73220-30372-B0i199312-199408
MD.GRAY,TRIM1#
main73220-30372-B3i199408-199508
BLUISH GRAY,TRIM1#
main73220-30372-E0i199408-199508
MD.OAK,TRIM0#
main73220-30372-G0i199312-199408
SPRUCE,TRIM6#
main73220-30372-G2i199408-199508
DK.SPRUCE GRAY,TRIM6#
main73220-30650-B0i199508-199708
BLUISH GRAY,TRIM1#
sub73220-30650
main73220-30650-E0i199508-199708
MD.OAK,TRIM0#
sub73220-30650
main73220-30650-G0i199508-199708
DK.SPRUCE GRAY,TRIM6#
sub73220-30650
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-30491-A0i199110-199205
IVORY,TRIM0#
sub73230-30492
main73230-30491-B0i199110-199205
GRAY,TRIM1#
sub73230-30492
main73230-30491-G0i199110-199205
LIGHT SPRUCE,TRIM6#
sub73230-30492
main73230-30492-A0i199205-199312
IVORY,TRIM0#
main73230-30492-B0i199205-199312
GRAY,TRIM1#
main73230-30492-G0i199205-199312
LI.SPRUCE,TRIM6#
main73230-30493-A0i199312-199408
IVORY,TRIM0#
main73230-30493-B0i199312-199408
MD.GRAY,TRIM1#
main73230-30493-B2i199408-199508
BLUISH GRAY,TRIM1#
main73230-30493-E2i199408-199508
MD.OAK,TRIM0#
main73230-30493-G0i199312-199408
SPRUCE,TRIM6#
main73230-30493-G1i199408-199508
DK.SPRUCE GRAY,TRIM6#
main73230-30494-B2i199508-199708
BLUISH GRAY,TRIM1#
main73230-30494-E2i199508-199708
MD.OAK,TRIM0#
main73230-30494-G1i199508-199708
DK.SPRUCE GRAY,TRIM6#
73237ACOVER, SHOULDER BELT ANCHOR
main73135-30020-A0i199110-199708
IVORY,TRIM0#
sub73135-30020
main73135-30020-B0i199110-199708
LI.GRAY,TRIM1#
sub73135-30020
main73135-30020-G0i199110-199708
LI.SPRUCE,TRIM6#
sub73135-30020
73240BELT ASSY, FRONT SEAT INNER, LH
main73240-30191-A0i199110-199205
IVORY,TRIM0#
sub73240-30192
main73240-30191-B0i199110-199205
GRAY,TRIM1#
sub73240-30192
main73240-30191-G0i199110-199205
LIGHT SPRUCE,TRIM6#
sub73240-30192
main73240-30192-A0i199205-199312
IVORY,TRIM0#
main73240-30192-B0i199205-199312
GRAY,TRIM1#
main73240-30192-G0i199205-199312
LI.SPRUCE,TRIM6#
main73240-30193-A0i199312-199408
IVORY,TRIM0#
main73240-30193-B0i199312-199408
MD.GRAY,TRIM1#
main73240-30193-B2i199408-199508
BLUISH GRAY,TRIM1#
main73240-30193-E2i199408-199508
MD.OAK,TRIM0#
main73240-30193-G0i199312-199408
SPRUCE,TRIM6#
main73240-30193-G1i199408-199508
DK.SPRUCE GRAY,TRIM6#
main73240-30194-B2i199508-199708
BLUISH GRAY,TRIM1#
main73240-30194-E2i199508-199708
MD.OAK,TRIM0#
main73240-30194-G1i199508-199708
DK.SPRUCE GRAY,TRIM6#
main73240-30360-A0i199210-199312
IVORY,TRIM0#
main73240-30360-B0i199210-199312
GRAY,TRIM1#
main73240-30360-G0i199210-199312
LI.SPRUCE,TRIM6#
main73240-30361-A0i199312-199408
IVORY,TRIM0#
main73240-30361-B0i199312-199408
MD.GRAY,TRIM1#
main73240-30361-B2i199408-199508
BLUISH GRAY,TRIM1#
main73240-30361-E2i199408-199508
MD.OAK,TRIM0#
main73240-30361-G0i199312-199408
SPRUCE,TRIM6#
main73240-30361-G1i199408-199508
DK.SPRUCE GRAY,TRIM6#
main73240-30362-B2i199508-199708
BLUISH GRAY,TRIM1#
main73240-30362-E2i199508-199708
MD.OAK,TRIM0#
main73240-30362-G1i199508-199708
DK.SPRUCE GRAY,TRIM6#
73247RETAINER, SHOULDER BELT ANCHOR
main73247-30010i199110-199708
73343GUIDE, REAR SEAT SHOULDER BELT, RH
main73343-30020-A0i199110-199308
IVORY,TRIM0#
main73343-30020-B0i199110-199308
GRAY,TRIM1#
main73343-30020-G0i199110-199308
LI.SPRUCE,TRIM6#
main73343-30050-A0i199308-199408
IVORY,TRIM0#
main73343-30050-B0i199308-199408
GRAY,TRIM1#
main73343-30050-B1i199408-199508
SHADOW GRAY,TRIM1#
main73343-30050-E2i199408-199508
MD.OAK,TRIM0#
main73343-30050-G0i199308-199408
LI.SPRUCE,TRIM6#
main73343-30050-G1i199408-199508
DK.SPRUCE GRAY,TRIM6#
main73343-50020-B2i199508-199708
BLUISH GRAY,TRIM1#
sub73343-50020
main73343-50020-E1i199508-199708
MD.OAK,TRIM0#
sub73343-50020
main73343-50020-G1i199508-199708
DK.SPRUCE GRAY,TRIM6#
sub73343-50020
73344GUIDE, REAR SEAT SHOULDER BELT, LH
main73344-30010-A0i199110-199308
IVORY,TRIM0#
main73344-30010-B0i199110-199308
GRAY,TRIM1#
main73344-30010-G0i199110-199308
LI.SPRUCE,TRIM6#
main73344-30040-A0i199308-199408
IVORY,TRIM0#
main73344-30040-B0i199308-199408
GRAY,TRIM1#
main73344-30040-B1i199408-199508
SHADOW GRAY,TRIM1#
main73344-30040-E2i199408-199508
MD.OAK,TRIM0#
main73344-30040-G0i199308-199408
LI.SPRUCE,TRIM6#
main73344-30040-G1i199408-199508
DK.SPRUCE GRAY,TRIM6#
main73344-50010-B2i199508-199708
BLUISH GRAY,TRIM1#
sub73344-50010
main73344-50010-E1i199508-199708
MD.OAK,TRIM0#
sub73344-50010
main73344-50010-G1i199508-199708
DK.SPRUCE GRAY,TRIM6#
sub73344-50010
73350BELT ASSY, REAR SEAT LAP TYPE, CENTER
main73350-30110-A0i199110-199408
IVORY,TRIM0#
sub73350-30100
main73350-30110-B0i199110-199408
SHADOW GRAY,TRIM1#
sub73350-30100
main73350-30110-B2i199408-199508
BLUISH GRAY,TRIM1#
sub73350-30100
main73350-30110-E1i199408-199508
MD.OAK,TRIM0#
sub73350-30100
main73350-30110-G0i199110-199408
LI.SPRUCE,TRIM6#
sub73350-30100
main73350-30110-G1i199408-199508
DK.SPRUCE GRAY,TRIM6#
sub73350-30100
main73350-30111-B2i199508-199708
BLUISH GRAY,TRIM1#
main73350-30111-E1i199508-199708
MD.OAK,TRIM0#
main73350-30111-G1i199508-199708
DK.SPRUCE GRAY,TRIM6#
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
main73360-30180-A0i199110-199408
IVORY,TRIM0#
main73360-30180-B0i199110-199408
SHADOW GRAY,TRIM1#
main73360-30180-B2i199408-199508
SHADOW GRAY,TRIM1#
main73360-30180-E0i199408-199508
MD.OAK,TRIM0#
main73360-30180-G0i199110-199408
LI.SPRUCE,TRIM6#
main73360-30180-G1i199408-199508
DK.SPRUCE GRAY,TRIM6#
main73360-30181-B2i199508-199608
BLUISH GRAY,TRIM1#
main73360-30181-E0i199508-199608
MD.OAK,TRIM0#
main73360-30181-G1i199508-199608
DK.SPRUCE GRAY,TRIM6#
main73360-30310-B0i199608-199708
BLUISH GRAY,TRIM1#
main73360-30310-E0i199608-199708
MD.OAK,TRIM0#
main73360-30310-G0i199608-199708
DK.SPRUCE GRAY,TRIM6#
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
main73370-30130-A0i199110-199408
IVORY,TRIM0#
sub73370-30130
main73370-30130-B0i199110-199408
SHADOW GRAY,TRIM1#
sub73370-30130
main73370-30130-B2i199408-199508
SHADOW GRAY,TRIM1#
sub73370-30130
main73370-30130-E0i199408-199508
MD.OAK,TRIM0#
sub73370-30130
main73370-30130-G0i199110-199408
LI.SPRUCE,TRIM6#
sub73370-30130
main73370-30130-G1i199408-199508
DK.SPRUCE GRAY,TRIM6#
sub73370-30130
main73370-30131-B2i199508-199608
BLUISH GRAY,TRIM1#
main73370-30131-E0i199508-199608
MD.OAK,TRIM0#
main73370-30131-G1i199508-199608
DK.SPRUCE GRAY,TRIM6#
main73370-30220-B0i199608-199708
BLUISH GRAY,TRIM1#
main73370-30220-E0i199608-199708
MD.OAK,TRIM0#
main73370-30220-G0i199608-199708
DK.SPRUCE GRAY,TRIM6#
73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
main73380-30172-A0i199110-199312
IVORY,TRIM0#
main73380-30172-B0i199110-199312
GRAY,TRIM1#
main73380-30172-G0i199110-199312
LI.SPRUCE,TRIM6#
main73380-30173-A0i199312-199408
IVORY,TRIM0#
sub73380-30173
main73380-30173-B0i199312-199408
MD.GRAY,TRIM1#
sub73380-30173
main73380-30173-B2i199408-199508
BLUISH GRAY,TRIM1#
sub73380-30173
main73380-30173-E1i199408-199508
MD.OAK,TRIM0#
sub73380-30173
main73380-30173-G0i199312-199408
SPRUCE,TRIM6#
sub73380-30173
main73380-30173-G1i199408-199508
DK.SPRUCE GRAY,TRIM6#
sub73380-30173
main73380-30174-B2i199508-199708
BLUISH GRAY,TRIM1#
main73380-30174-E1i199508-199708
MD.OAK,TRIM0#
main73380-30174-G1i199508-199708
DK.SPRUCE GRAY,TRIM6#
73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
main73480-30052-A0i199110-199312
IVORY,TRIM0#
sub73480-30052
main73480-30052-B0i199110-199312
GRAY,TRIM1#
sub73480-30052
main73480-30052-G0i199110-199312
LI.SPRUCE,TRIM6#
sub73480-30052
main73480-30053-A0i199312-199408
IVORY,TRIM0#
main73480-30053-B0i199312-199408
MD.GRAY,TRIM1#
main73480-30053-B2i199408-199508
BLUISH GRAY,TRIM1#
main73480-30053-E1i199408-199508
MD.OAK,TRIM0#
main73480-30053-G0i199312-199408
SPRUCE,TRIM6#
main73480-30053-G1i199408-199508
DK.SPRUCE GRAY,TRIM6#
main73480-30054-B2i199508-199708
BLUISH GRAY,TRIM1#
main73480-30054-E1i199508-199708
MD.OAK,TRIM0#
main73480-30054-G1i199508-199708
DK.SPRUCE GRAY,TRIM6#
9011908436
main90119-08436
9011908495
main90119-08495
9011910435
main90119-10435
9016440042
main90164-40042
9017604015
main90176-04015
9017911010
main90179-11010

23 parts on this diagram · 1 diagram in section

SEAT BELT & CHILD RESTRAINT SEAT — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
