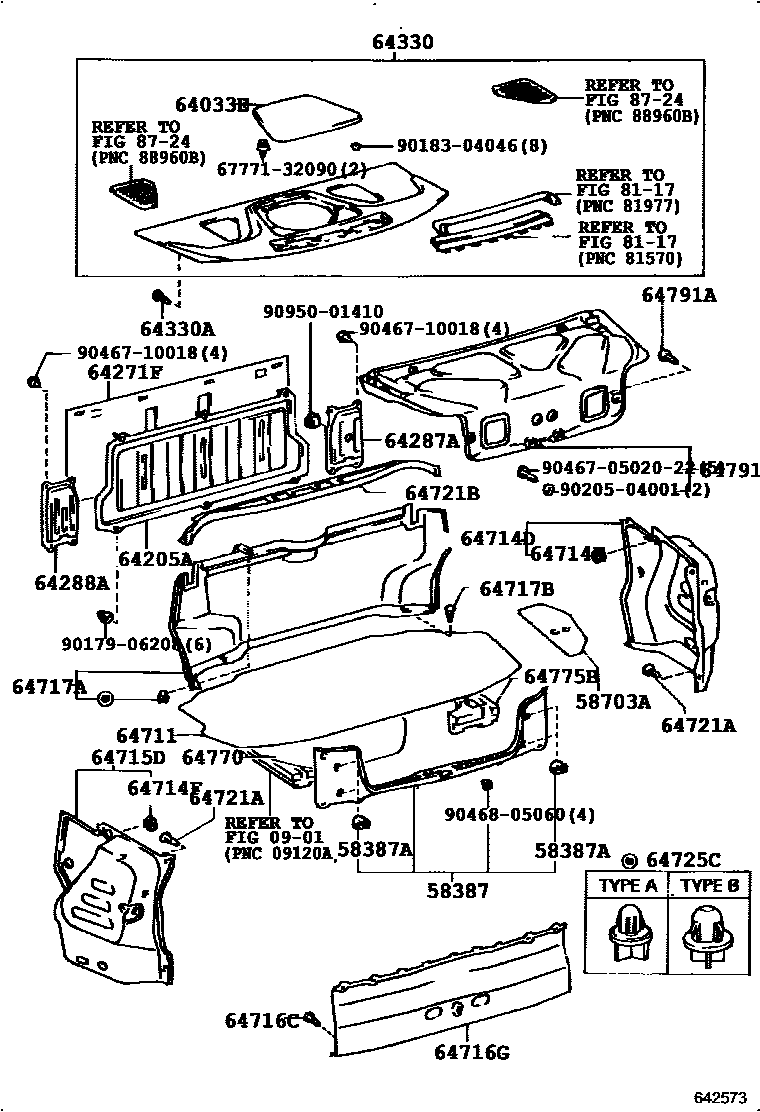

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0901

58387PLATE, REAR FLOOR FINISH

main58387-30050-C0iJZS147,UZS143199110-199708

GRAPHITE,TRIM0#,1#,6#

58387APLUG, HOLE(FOR REAR FLOOR FINISH PLATE)

main90950-01436-C1iJZS147,UZS143199110-199708

GRAPHITE,TRIM0#,1#,6#

sub90950-01436

sub64353-50010

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-30100iJZS147,UZS143..V,Z199408-199708

main58703-30100iJZS147,UZS143199110-199408

main58703-30120iJZS147..V199508-199708

main58703-30120iJZS147..Q199408-199708

64033EGRILLE SUB-ASSY, REAR SPEAKER

main64033-30040-B0iJZS147..Q199110-199708

SHADOW GRAY,TRIM1#

sub64033-30040

main64033-30040-E0iJZS147,UZS143..V,Z199110-199708

SABLE,TRIM0#

sub64033-30040

main64033-30040-G0iJZS147,UZS143199110-199708

LI.SPRUCE,TRIM6#

sub64033-30040

64205ACOVER SUB-ASSY, ROOM PARTITION

main64275-30030iJZS147,UZS143199110-199708

64271FTRIM, ROOM PARTITION

main64271-30150iJZS147,UZS143199110-199308

sub64271-30170

main64271-30170iJZS147,UZS143199308-199708

64287ACOVER, ROOM PARTITION, NO.4 RH

main64287-30010iJZS147,UZS143199110-199708

64288ACOVER, ROOM PARTITION, NO.4 LH

main64288-30010iJZS147,UZS143199110-199708

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-3A060-B0iJZS147..V199210-199508

SHADOW GRAY,TRIM1#

main64330-3A060-B0iJZS147..Q199408-199708

main64330-3A060-B0iJZS147..V199508-199708

main64330-3A060-E0iJZS147..Q199408-199708

main64330-3A060-E0iJZS147..V199210-199508

SABLE,TRIM0#

main64330-3A060-E0iJZS147..V199508-199708

main64330-3A060-G1iJZS147..Q199408-199708

main64330-3A060-G1iJZS147..V199508-199708

main64330-3A060-G1iJZS147199210-199508

LI.SPRUCE,TRIM6#

main64330-3A130-B0iJZS147..V199210-199508

main64330-3A130-B0iJZS147..V199408-199508

main64330-3A130-B0iJZS147..Q199508-199708

main64330-3A130-B0iUZS143199110-199708

SHADOW GRAY,TRIM1#

main64330-3A130-E0iJZS147..Q199408-199508

main64330-3A130-E0iJZS147199210-199508

main64330-3A130-E0iUZS143199110-199708

SABLE,TRIM0#

main64330-3A130-E0iJZS147..Q199508-199708

main64330-3A130-G1iJZS147199210-199508

main64330-3A130-G1iJZS147199110-199708

LI.SPRUCE,TRIM6#

main64330-3A130-G1iJZS147..Q199508-199708

main64330-3A130-G1iJZS147..Q199408-199508

main64330-3A200-B0iJZS147..V199608-199708

main64330-3A200-B0iJZS147..V199508-199608

main64330-3A200-B0iJZS147..Q199408-199708

GRAY,TRIM1#

main64330-3A200-E0iJZS147..Q199408-199708

SABLE,TRIM0#

main64330-3A200-E0iJZS147..V199508-199608

main64330-3A200-E0iJZS147..V199608-199708

main64330-3A200-G0iJZS147..Q199408-199708

LI.SPLUCE,TRIM6#

main64330-3A200-G0iJZS147..V199508-199608

main64330-3A200-G0iJZS147..V199608-199708

main64330-3A210-B0iUZS143199508-199708

main64330-3A210-B0iJZS147..Q199408-199708

main64330-3A210-E0iJZS147..V199508-199708

main64330-3A210-E0iJZS147..Q199408-199708

main64330-3A210-G0iJZS147..Q199408-199708

main64330-3A210-G0iJZS147..V199508-199708

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-05022-B0iJZS147,UZS143199110-199303

SHADOW GRAY,TRIM0#,1#,6#

sub90467-05022

main90467-06055-B0iJZS147,UZS143199303-199708

SHADOW GRAY,TRIM0#,1#,6#

sub90467-06055

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-30330-C1iJZS147,UZS143199110-199312

BLACK,TRIM0#,1#,6#

sub64711-30331

main64711-30331-C1iJZS147,UZS143199312-199708

BLACK,TRIM0#,1#,6#

main64711-30340-C1iJZS147,UZS143199110-199312

sub64711-30341

main64711-30341-C1iJZS147,UZS143199312-199708

64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH

main64071-30030-C0iJZS147,UZS143199110-199708

main64714-30180-C1iJZS147,UZS143199110-199708

BLACK,TRIM0#,1#,6#

64714FPLUG, HOLE(FOR LUGGAGE COMPARTMENT SIDE COVER)

main90950-01436-C1iJZS147,UZS143199110-199708

GRAPHITE,TRIM0#,1#,6#

sub90950-01436

sub64353-50010

64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH

main64715-30160-C1iJZS147,UZS143199110-199708

BLACK,TRIM0#,1#,6#

64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)

main90467-05125-C0iJZS147,UZS143199404-199708

BLACK,TRIM0#,1#,6#

sub90467-05125

main90904-67017-C0iJZS147,UZS143199110-199404

GRAPHITE,TRIM0#,1#,6#

sub90904-67017

64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR

main64716-30160-C1iJZS147,UZS143199110-199708

BLACK,TRIM0#,1#,6#

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-30200-C1iUZS143199110-199508

BLACK,TRIM0#,1#,6#

main64717-30200-C1iUZS143199210-199508

main64717-30201-C1iJZS147,UZS143..V,Z199508-199708

main64717-30201-C1iJZS147,UZS143..V,Z199508-199708

BLACK,TRIM0#,1#,6#

main64717-30240-C0iJZS147199210-199508

BLACK,TRIM0#,1#,6#

main64717-30241-C0iJZS147..V199508-199708

BLACK,TRIM0#,1#,6#

main64717-30241-C0iJZS147..Q199508-199708

64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)

main90467-05020-22iJZS147,UZS143199110-199404

GRAPHITE,TRIM0#,1#,6#

sub90467-05020

sub90467-05027

main90467-05125-C0iJZS147,UZS143199404-199708

BLACK,TRIM0#,1#,6#

sub90467-05125

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-05125-C0iJZS147,UZS143199404-199708

BLACK,TRIM0#,1#,6#

sub90467-05125

main90467-05125-C0iJZS147,UZS143199404-199708

sub90467-05125

main90904-67017-C0iJZS147,UZS143199110-199404

GRAPHITE,TRIM0#,1#,6#

sub90904-67017

main90904-67017-C0iJZS147,UZS143199110-199404

sub90904-67017

64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1

main64721-30070-C1iJZS147,UZS143199110-199708

BLACK,TRIM0#,1#,6#

64725CRETAINER, LUGGAGE COMPARTMENT COVER

main64725-30140iJZS147199301-199708

main64725-30150iJZS147199301-199708

64770COVER ASSY, SPARE WHEEL

main64770-30080iJZS147,UZS143..Q,Z199110-199708

main64770-30090iJZS147..Q199110-199708

64775BGUARD, SPARE WHEEL

main64775-30010iJZS147,UZS143199110-199508

main64775-30030iJZS147,UZS143199508-199708

64791COVER, BACK DOOR TRIM

main64791-30050-C1iJZS147,UZS143199110-199708

BLACK,TRIM0#,1#,6#

64791ACLIP(FOR BACK DOOR TRIM)

main90467-05105-C0iJZS147,UZS143199110-199404

BLACK,TRIM0#,1#,6#

sub90467-05105

main90467-05125-C0iJZS147,UZS143199404-199708

BLACK,TRIM0#,1#,6#

sub90467-05125

8117

8724

6777132090WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-32090

9017906208

main90179-06208

9018304046

main90183-04046

9020504001

main90205-04001

904670502022

main90467-0502022

9046710018

main90467-10018

9046805060

main90468-05060

9095001410

main90950-01410

36 parts on this diagram · 1 diagram in section
