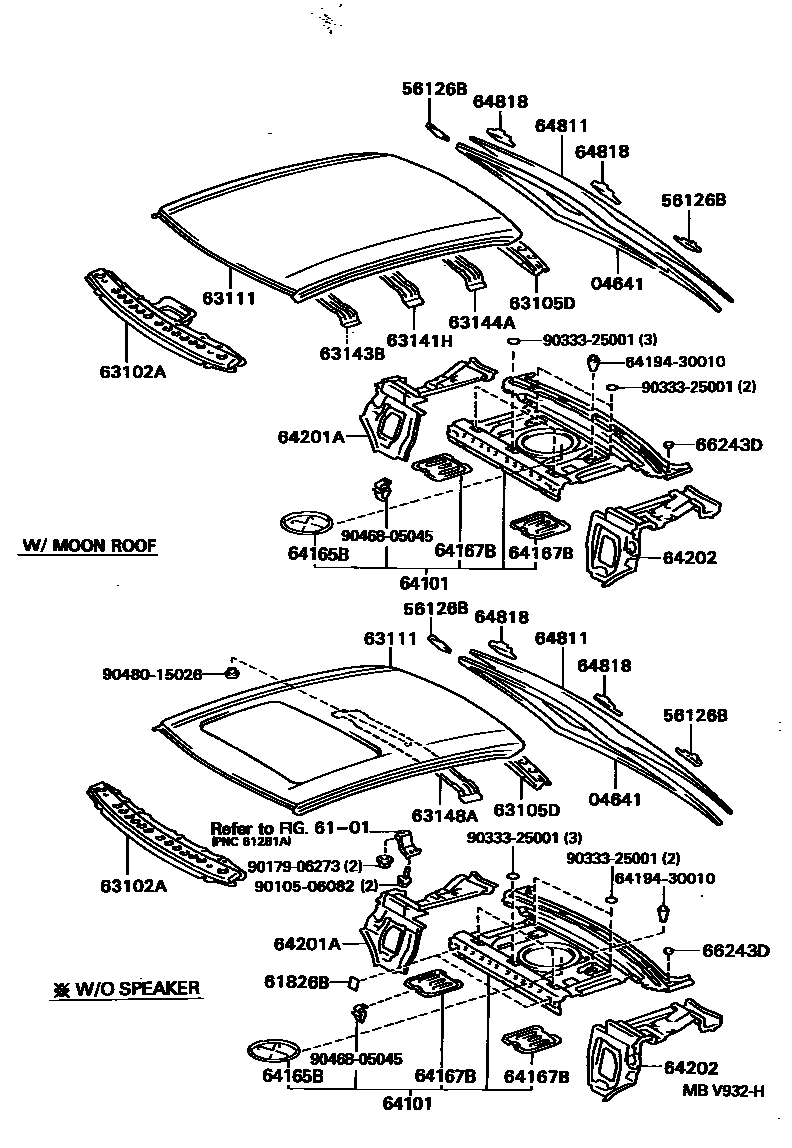

ROOF PANEL & BACK WINDOW GLASS
04641DAM KIT, BACK WINDOW GLASS
sub56117-50020
56126BSPACER, WINDSHIELD GLASS, NO.2
6101
61826BPLATE, NOISE CONTROL, NO.3
UPPER BACK PANEL,UPPER BACK PANEL
QUARTER PANEL
63102APANEL SUB-ASSY, WINDSHIELD HEADER
63105DFRAME SUB-ASSY, BACK WINDOW, UPPER
63111PANEL, ROOF
63141HREINFORCEMENT, ROOF PANEL, CENTER
63143BREINFORCEMENT, ROOF PANEL, NO.3
63144AREINFORCEMENT, ROOF PANEL, NO.4
63148AREINFORCEMENT, ROOF PANEL, NO.7
64165BCOVER, UPPER BACK PANEL HOLE, NO.1
64167BCOVER, UPPER BACK PANEL HOLE, NO.3
64201AEXTENSION SUB-ASSY, PACKAGE TRAY, RH
64202EXTENSION SUB-ASSY, PACKAGE TRAY, LH
66243DPROTECTOR, REAR BODY, NO.1
6419430010BRACKET, NOISE SHUTTER SUPPORT
main64194-30010
9010506082
main90105-06082
9017906273
main90179-06273
9033325001
main90333-25001
9046805045
main90468-05045
9048015026
main90480-15026
25 parts on this diagram · 2 diagrams in section
