SIDE MEMBER
61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH
61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61103AREINFORCEMENT SUB-ASSY, COWL SIDE, RH
61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH
61107BREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
61146BGUSSET, FRONT BODY PILLAR, LOWER LH
61161PILLAR, FRONT BODY, UPPER INNER RH
61162PILLAR, FRONT BODY, UPPER INNER LH
61166ABRACKET, INSTRUMENT PANEL TO COWL SIDE, LH
61173REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER
61174AREINFORCEMENT, FRONT BODY PILLAR, UPPER INNER LH
61182BBRACKET, INSTRUMENT PANEL SIDE, NO.1 LH
61211RAIL, ROOF SIDE, OUTER RH
sub61211-30191
61212RAIL, ROOF SIDE, OUTER LH
sub61212-30191
61218ARAIL SUB-ASSY, ROOF SIDE, OUTER UPPER NO.3 RH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61261CHANNEL, ROOF DRIP, RH
61262CHANNEL, ROOF DRIP, LH
61267ACHANNEL, ROOF DRIP SIDE, REAR RH
61268CHANNEL, ROOF DRIP SIDE, REAR LH
61281ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1
61311BPILLAR, CENTER BODY, OUTER RH
61312BPILLAR, CENTER BODY, OUTER LH
61343APILLAR, CENTER BODY, INNER RH
61344APILLAR, CENTER BODY, INNER LH
61367REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER
61377BRACKET, REAR DOOR CHECK ARM, RH
61378ABRACKET, REAR DOOR CHECK ARM, LH
61415BEXTENSION, ROCKER, OUTER RH
61416BEXTENSION, ROCKER, OUTER LH
61427REINFORCEMENT, ROCKER PANEL, NO.5 RH
61428CREINFORCEMENT, ROCKER PANEL, NO.5 LH
61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH
61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61667CSEAL, QAURTER PANEL, NO.1
61668CSEAL, QUARTER PANEL, NO.2
61711PANEL, ROOF SIDE, OUTER RH
61712PANEL, ROOF SIDE, OUTER LH
61731BPANEL, ROOF SIDE, INNER RH
61732BPANEL, ROOF SIDE, INNER LH
61824CPAD, NOISE SHUTTER, NO.1
61827APLATE, NOISE CONTROL, NO.4
62151BPAD, COWL SIDE SILENCER
9011906500
main90119-06500
9014860002
main90148-60002
9015945010
main90159-45010
9015960507
main90159-60507
9017908025
main90179-08025
9033330002
main90333-30002
9033330009
main90333-30009
9046708163
main90467-08163
9046708164
main90467-08164
9048007006
main90480-07006
9048016024
main90480-16024
9095001392
main90950-01392
9095001419
main90950-01419
9095001580
main90950-01580
9095001684
main90950-01684
9095001810
main90950-01810
9095001859
main90950-01859
9165560820
main91655-60820

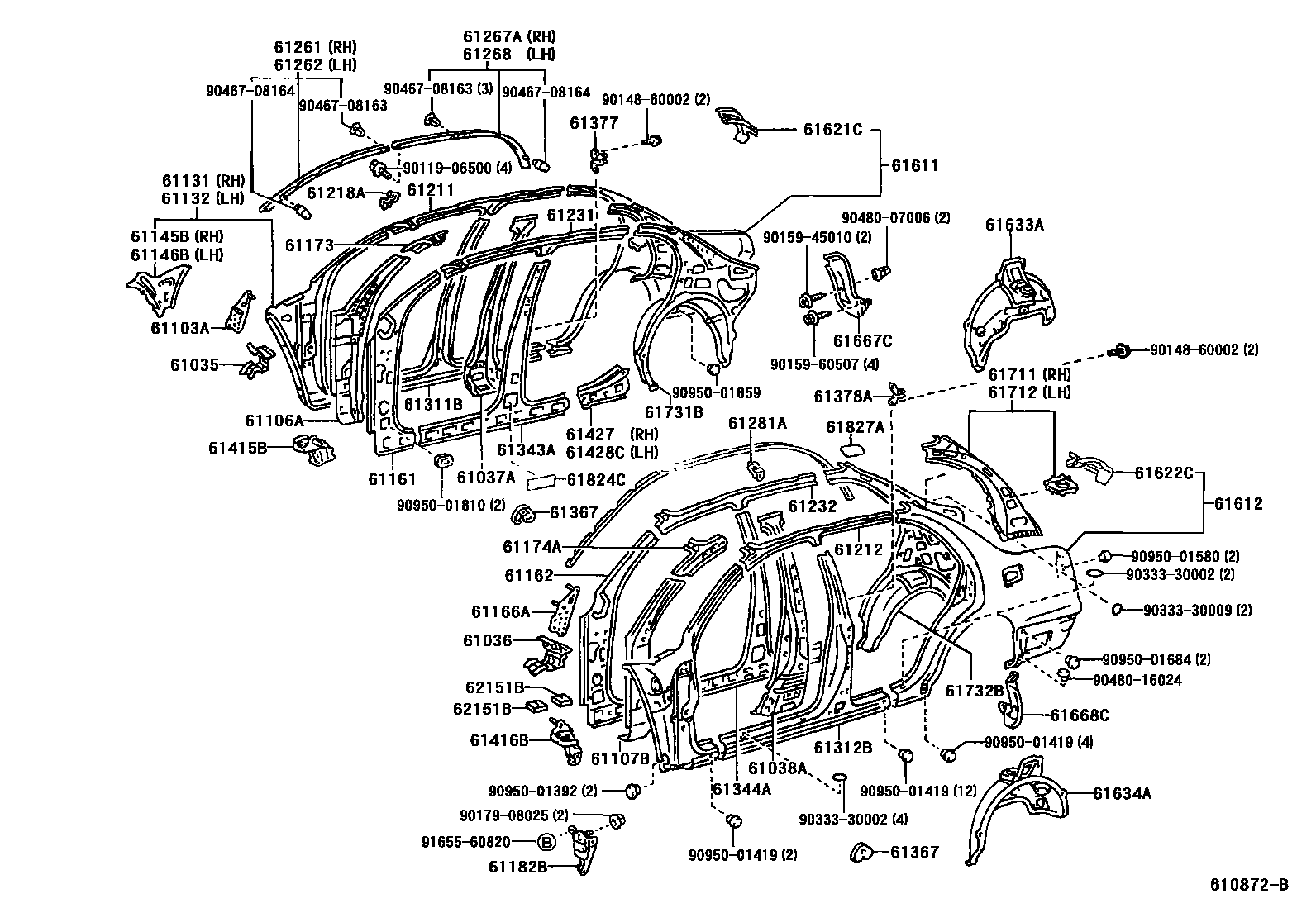

71 parts on this diagram · 1 diagram in section
