MAT & CARPET
58191AFOOTREST, FRONT FLOOR, RH
58510CCARPET ASSY, FRONT FLOOR, FRONT
sub58510-3F310
sub58510-3F310
sub58510-3F310
sub58510-3F310
sub58510-3F310
IVORY,TRIM0#
SHADOW GRAY,TRIM1#
LI.SPRUCE,TRIM6#
IVORY,TRIM0#
SHADOW GRAY,TRIM1#
SPRUCE,TRIM6#
sub58510-3F300
sub58510-3F300
sub58510-3F300
sub58510-3F300
sub58510-3F300
sub58510-3F310
sub58510-3F310
sub58510-3F310
sub58510-3F311
sub58510-3F311
sub58510-3F311
sub58510-3F820
sub58510-3F820
IVORY,TRIM0#
SHADOW GRAY,TRIM1#
LI.SPRUCE,TRIM6#
sub58510-3F810
sub58510-3F810
sub58510-3F820
sub58510-3F820
sub58510-3F820
58543BBRACKET, FLOOR CARPET, RH
58544BBRACKET, FLOOR CARPET, LH
6401
6777132090WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-32090
6777189104WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-89104
6792195500RETAINER, FRONT DOOR SCUFF PLATE
main67921-95500
9015960081
main90159-60081
9018906063
main90189-06063
9046706147
main90467-06147
9046710121
main90467-10121
9090467017
main90904-67017
9356014012
main93560-14012

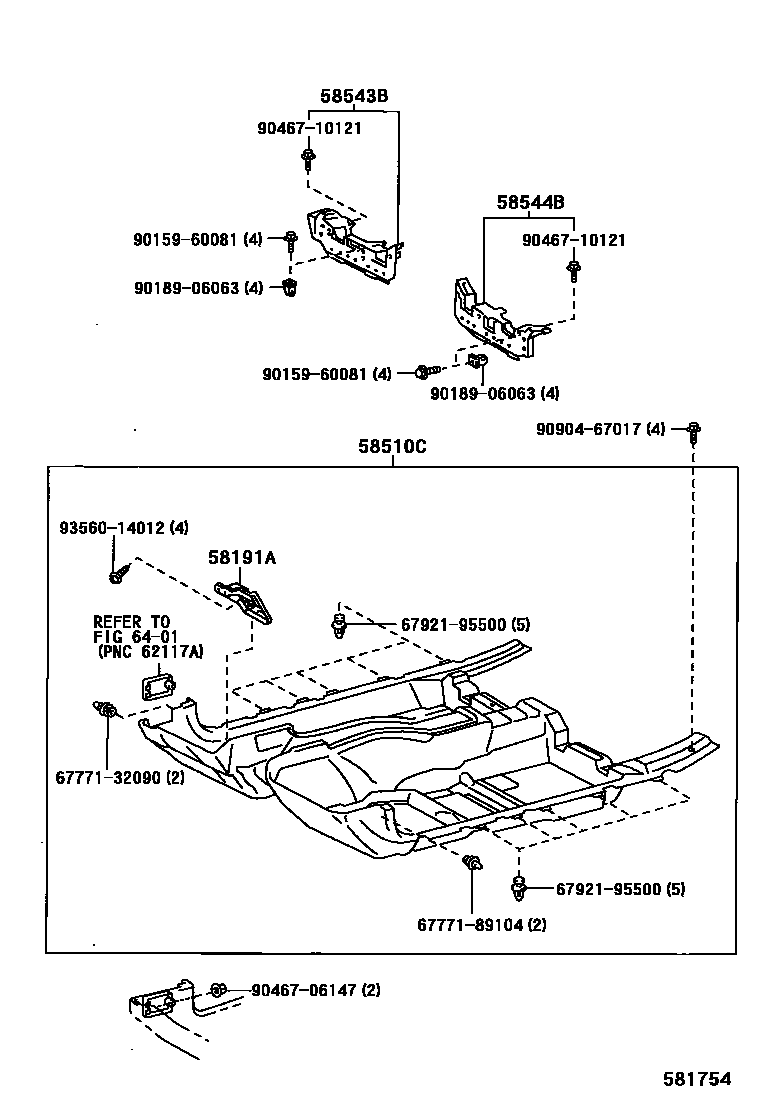

14 parts on this diagram · 1 diagram in section
