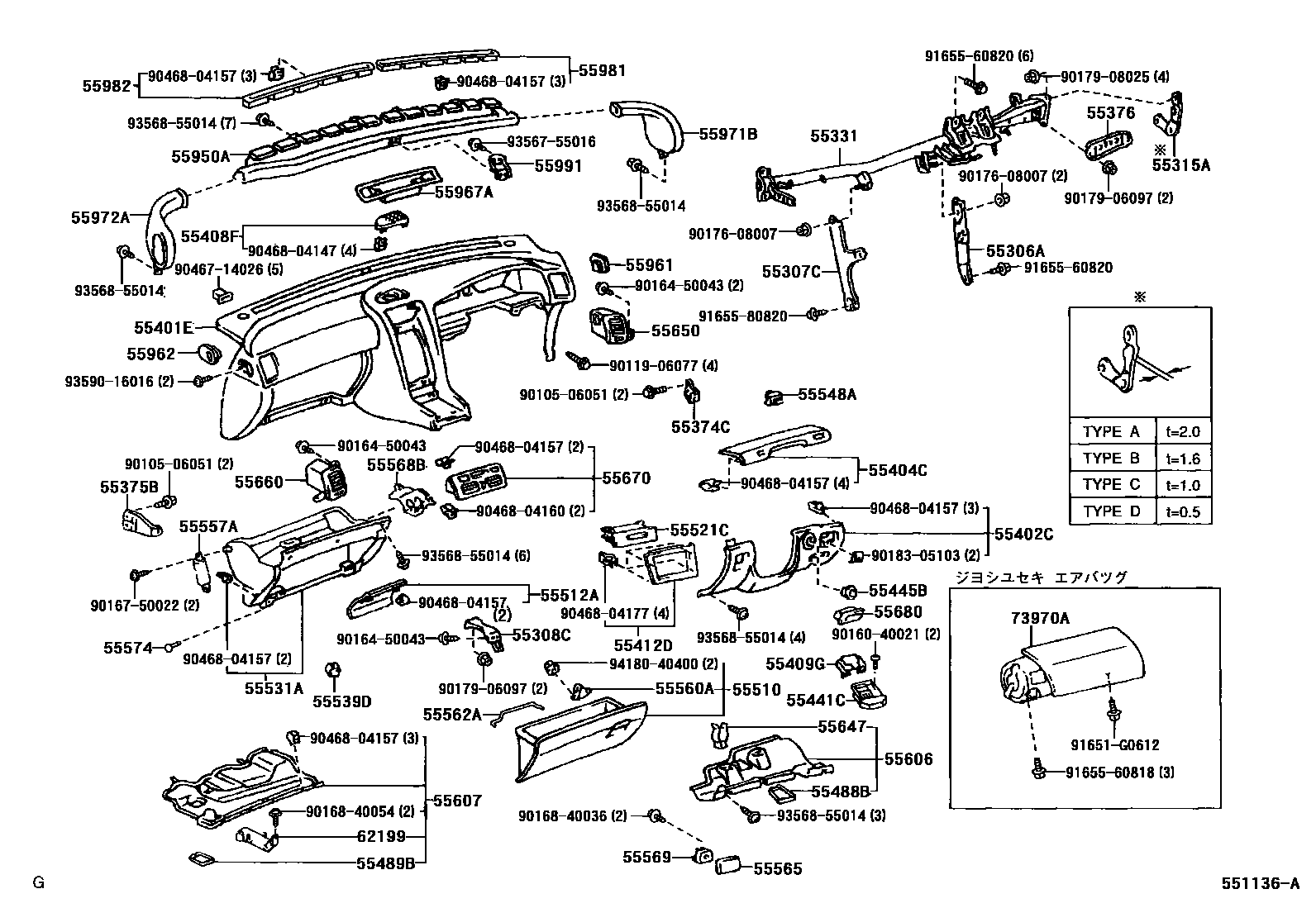

INSTRUMENT PANEL & GLOVE COMPARTMENT
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55315ASPACER, INSTRUMENT PANEL, NO.1
55331REINFORCEMENT, INSTRUMENT PANEL
55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
SHADOW GRAY,TRIM1#
SABLE,TRIM0#
SPRUCE GRAY,TRIM6#
SHADOW GRAY,TRIM1#
SABLE,TRIM0#
SPRUCE GRAY,TRIM6#
55402CPAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH
IVORY,TRIM0#
GRAY,TRIM1#
LI.SPRUCE,TRIM6#
55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2
55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1
55409GRETAINER SUB-ASSY, COIN BOX
55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER
55441CBOX, INSTRUMENT PANEL COIN
55445BPLATE, INSTRUMENT PANEL FINISH
55488BLENS, FRONT FOOT LAMP, NO.1
55489BLENS, FRONT FOOT LAMP, NO.2
55510DOOR ASSY, GLOVE COMPARTMENT
IVORY,TRIM0#
GRAY,TRIM1#
LI.SPRUCE,TRIM6#
55512APLATE, GLOVE COMPARTMENT
55521CCOVER, STEREO OPENING
sub55521-32011
55539DCOVER, SPARE SWITCH HOLE
55548ACOVER, INSTRUMENT PANEL HOLE
55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK
55560ALOCK ASSY, GLOVE COMPARTMENT DOOR
55562ALINK, GLOVE COMPARTMENT DOOR LOCK
55565HANDLE, GLOVE COMPARTMENT DOOR LOCK
55568BPLATE, GLOVE COMPARTMENT DOOR FINISH
55569COVER, GLOVE COMPARTMENT DOOR LOCK
55574SHAFT, GLOVE COMPARTMENT DOOR HINGE
55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1
55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2
55647CLAMP, INSTRUMENT PANEL UNDER COVER
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
55660REGISTER ASSY, INSTRUMENT PANEL, NO.2
55670REGISTER ASSY, INSTRUMENT PANEL, NO.3
55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1
sub55680-17050
55950ANOZZLE ASSY, DEFROSTER
55961NOZZLE, SIDE DEFROSTER, NO.1
55962NOZZLE, SIDE DEFROSTER, NO.2
55967ANOZZLE, DEFROSTER, LOWER
55971BDUCT, SIDE DEFROSTER NOZZLE, NO.1
55972ADUCT, SIDE DEFROSTER NOZZLE, NO.2
55981GARNISH, DEFROSTER NOZZLE, NO.1
55982GARNISH, DEFROSTER NOZZLE, NO.2
55991BRACKET, DEFROSTER DUCT, NO.1
62199HOLDER, FUSEE
73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER
9010506051
main90105-06051
9011906077
main90119-06077
9016040021
main90160-40021
9016450043
main90164-50043
9016750022
main90167-50022
9016840036
main90168-40036
9016840054
main90168-40054
9017608007
main90176-08007
9017906097
main90179-06097
9017908025
main90179-08025
9018305103
main90183-05103
9046714026
main90467-14026
9046804147
main90468-04147
9046804157
main90468-04157
9046804160
main90468-04160
9046804177
main90468-04177
91651G0612
main91651-G0612
9165560818
main91655-60818
9165560820
main91655-60820
9165580820
main91655-80820
9356755016
main93567-55016
9356855014
main93568-55014
9359016016
main93590-16016
9418040400
main94180-40400
73 parts on this diagram · 1 diagram in section
