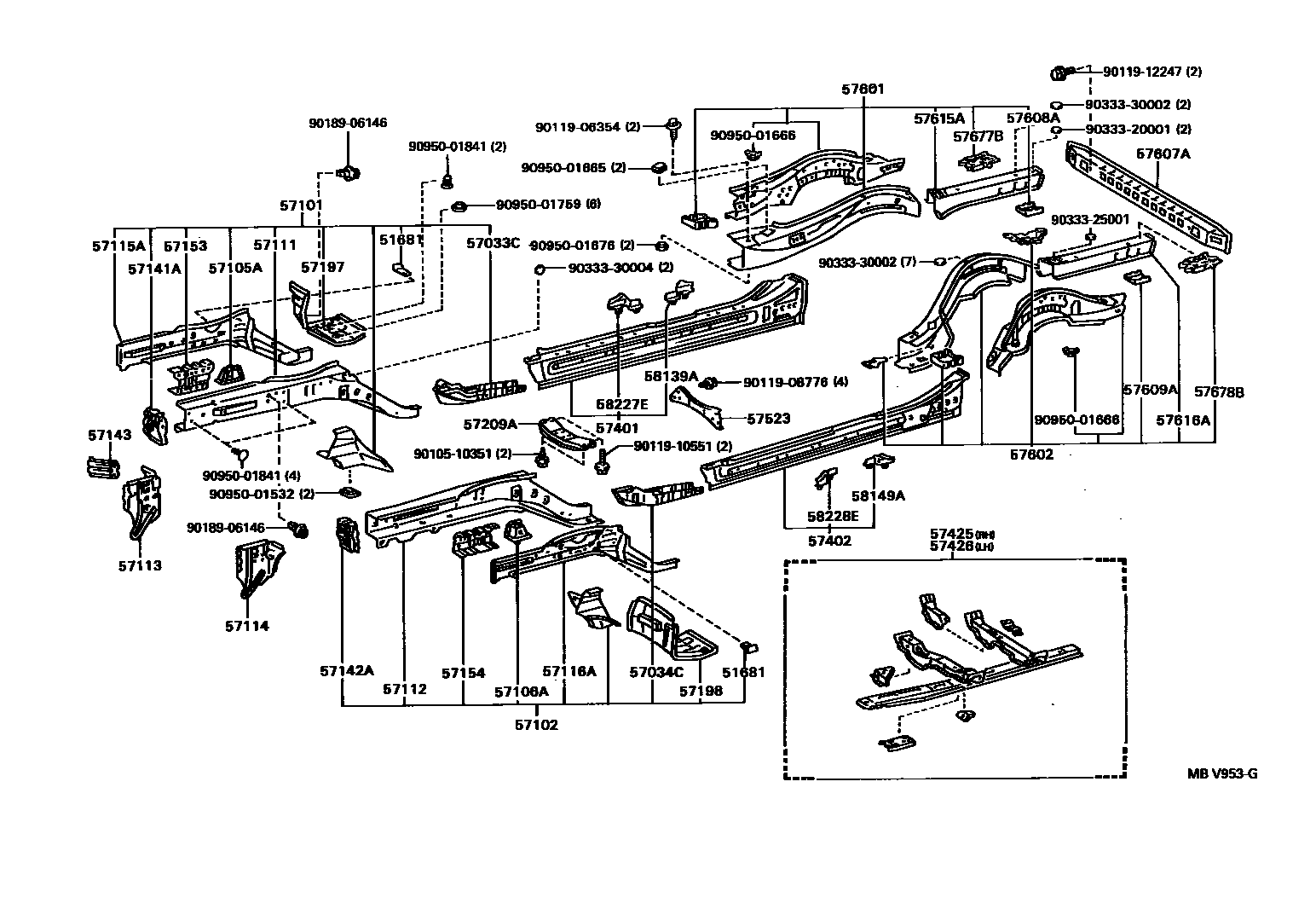

FLOOR SIDE MEMBER
51681BRACKET, FLEXIBLE HOSE
57033CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH
57034CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 LH
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57105APLATE SUB-ASSY, FRONT SIDE MEMBER, RH
57106APLATE SUB-ASSY, FRONT SIDE MEMBER, LH
57111MEMBER, FRONT SIDE, RH
57112MEMBER, FRONT SIDE, LH
57113EXTENSION, FRONT SIDE MEMBER, RH
57114EXTENSION, FRONT SIDE MEMBER, LH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57141ASUPPORT, FRONT BUMPER ARM, RH
57142ASUPPORT, FRONT BUMPER ARM, LH
57143REINFORCEMENT, FRONT SIDE MEMBER, REAR RH
57153REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH
57154REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH
57197BOX, TORQUE, FRONT RH
57198BOX, TORQUE, FRONT LH
57209AMEMBER SUB-ASSY, ENGINE REAR MOUNTING
57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57425REINFORCEMENT, FRONT FLOOR, NO.2 RH
57426REINFORCEMENT, FRONT FLOOR, NO.2 LH
57523BRACE, CENTER FLOOR CROSSMEMBER
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
57608AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4
57609AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5
57615AMEMBER, REAR FLOOR SIDE, REAR RH
57616AMEMBER, REAR FLOOR SIDE, REAR LH
57677BREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.6 RH
57678BREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.6 LH
58139APLATE, FRONT FLOOR SIDE, REAR RH
58149APLATE, FRONT FLOOR SIDE, REAR LH
58227EPLATE, FRONT FLOOR PANEL SIDE, RH
58228EPLATE, FRONT FLOOR PANEL SIDE, LH
9010510351
9011906354
9011908776
9011910551
9011912247
9018906146
9033320001
9033325001
9033330002
9033330004
9095001532
9095001665
9095001666
9095001676
9095001759
9095001841
55 parts on this diagram · 2 diagrams in section
