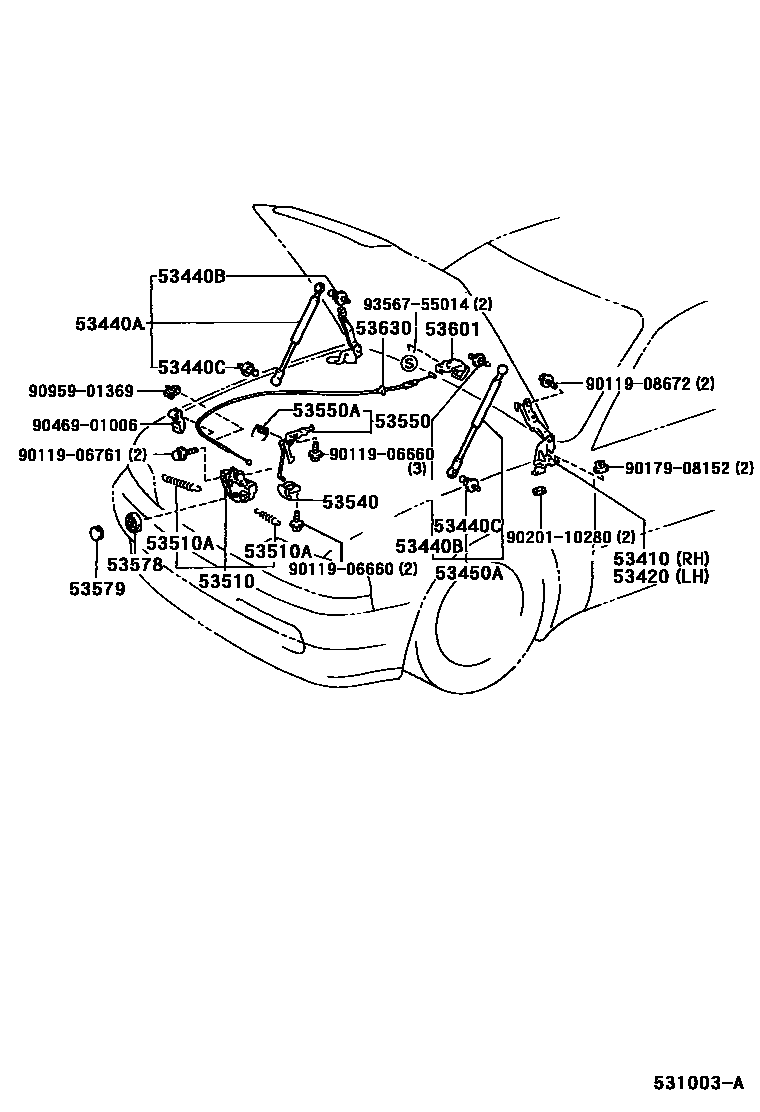

HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
53440ASUPPORT ASSY, HOOD, RH
53440BBOLT, HOOD SUPPORT, NO.1
sub68961-20051
53440CBOLT, HOOD SUPPORT, NO.2
sub68961-20051
53450ASUPPORT ASSY, HOOD, LH
53510LOCK ASSY, HOOD
53510ASPRING, TENSION(FOR HOOD LOCK)
53540LEVER ASSY, AUXILIARY CATCH RELEASE
53550HOOK ASSY, HOOD AUXILIARY CATCH
53550ASPRING, TORSION(FOR HOOD LOCK HOOK)
WD=1.8,CW=4
53578NUT, HOOD LOCK
53579CAP, HOOD LOCK NUT
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
53630CABLE ASSY, HOOD LOCK CONTROL
9011906660
main90119-06660
9011906761
main90119-06761
9011908672
main90119-08672
9017908152
main90179-08152
9020110280
main90201-10280
9046901006
main90469-01006
9095901369
main90959-01369
9356755014
main93567-55014
23 parts on this diagram · 1 diagram in section
