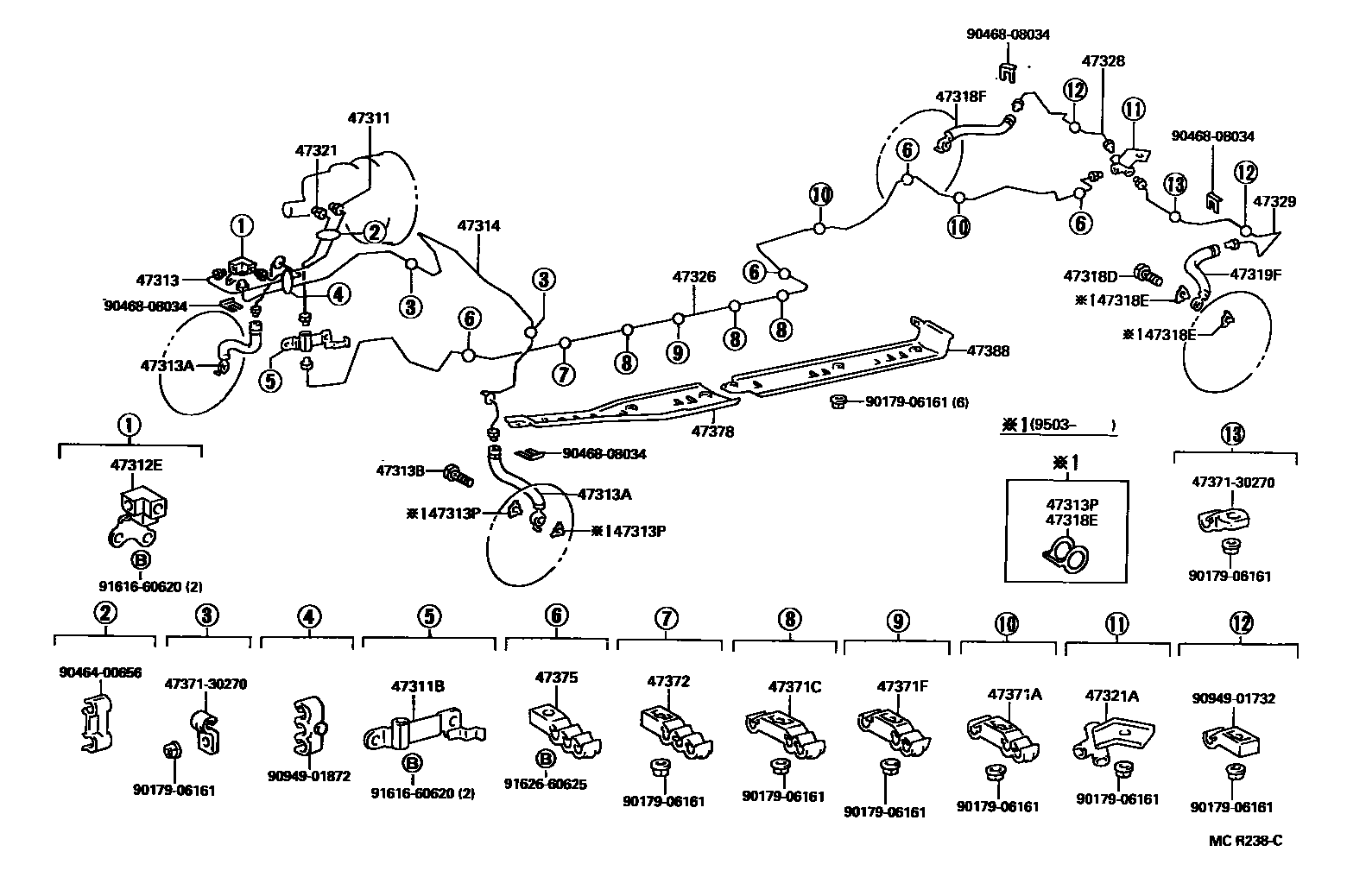

BRAKE TUBE & CLAMP

0001 1 0002 1��(������ ���-���� ����) 0003 1��(������ ����-�) 0004 1��(����� ���-� ��-�� ����) 0005 1��(������ ���-���� ����) 0006 1��(������ ����-�/����� ���-�

47311TUBE, FRONT BRAKE, NO.1

main47311-30440iJZS147..Q199110-199708

main47311-30440iJZS147..Q199210-199608

main47311-30440iJZS147,UZS143..V,Z199110-199708

main47311-30450iJZS147..Q199110-199708

main47311-30450iJZS147..Q199210-199608

main47311-30470iJZS147..Q199210-199608

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10188iJZS147..Q199110-199708

main90412-10189iJZS147..Q199210-199608

main90412-10189iJZS147..Q199110-199708

main90412-10189iJZS147,UZS143..V,Z199110-199708

47312TUBE, FRONT BRAKE, NO.2

main47312-30300iJZS147,UZS143199110-199708

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90413-10283iJZS147..Q199210-199608

47313TUBE, FRONT BRAKE, NO.3

main47313-30190iJZS147..Q199210-199608

main47313-30190iJZS147..Q199110-199708

main47313-30240iJZS147..Q199210-199608

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02674iJZS147199110-199508

sub90947-02837

main90947-02737iUZS143199210-199508

sub90947-02838

main90947-02837iJZS147199508-199708

main90947-02838iUZS143199508-199708

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10044iJZS147,UZS143199110-199409

main90401-10058iJZS147,UZS143199409-199708

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-30010iJZS147,UZS143199110-199503

main47389-50020iJZS147,UZS143199503-199708

47314TUBE, FRONT BRAKE, NO.4

main47314-30240iJZS147..Q199210-199608

main47314-30240iJZS147..Q199110-199708

main47314-30280iJZS147..Q199210-199608

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10044iJZS147,UZS143199110-199409

main90401-10058iJZS147,UZS143199409-199708

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-30010iJZS147,UZS143199110-199503

main47389-50020iJZS147,UZS143199503-199708

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02672iJZS147,UZS143199110-199508

sub90947-02839

main90947-02839iJZS147,UZS143199508-199708

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02672iJZS147,UZS143199110-199508

sub90947-02839

main90947-02839iJZS147,UZS143199508-199708

47321TUBE, REAR BRAKE, NO.1

main47321-30160iJZS147,UZS143..V,Z199110-199708

main47321-30160iJZS147..Q199110-199708

main47321-30160iJZS147..Q199210-199608

main47321-30170iJZS147..Q199210-199608

main47321-30170iJZS147..Q199110-199708

main47321-30190iJZS147..Q199210-199608

47321AWAY(FOR REAR BRAKE TUBE)

main90413-10265iJZS147..Q199110-199708

47326TUBE, REAR BRAKE, NO.6

main47326-30030iJZS147..Q199110-199508

sub47326-30070

main47326-30040iJZS147..Q199110-199508

sub47326-30080

main47326-30050iUZS143199210-199708

main47326-30070iJZS147..V199508-199605

main47326-30080iJZS147..Q199508-199708

main47326-30090iJZS147..Q199605-199708

47328TUBE, REAR BRAKE, NO.8

main47328-30010iJZS147..Q199110-199708

47329TUBE, REAR BRAKE, NO.9

main47329-30040iJZS147..Q199110-199708

47371ACLAMP, BRAKE TUBE, NO.1

main47371-30190iJZS147,UZS143199110-199708

47371CCLAMP, BRAKE TUBE, NO.7

main47371-30300iUZS143199210-199708

main47371-50060iJZS147..Q199508-199509

main47371-50060iJZS147199110-199708

47371FCLAMP, BRAKE TUBE, NO.10

main47371-30180iJZS147..Q199508-199708

main47371-30260iJZS147..Q199110-199508

47372CLAMP, BRAKE TUBE, NO.2

main47371-30170iJZS147199110-199708

main47371-30180iUZS143199210-199708

47375CLAMP, BRAKE TUBE, NO.5

main47371-30200iJZS147..Q199508-199708

main47371-30200iJZS147199110-199508

main47371-30280iUZS143199210-199708

47378PROTECTOR, BRAKE TUBE

main47378-30010iJZS147199110-199708

main47378-30020iUZS143199210-199708

47388PROTECTOR, BRAKE TUBE, LOWER

main47388-30010iJZS147199110-199708

main47388-30020iUZS143199210-199708

4737130270BRACKET, CONNECTOR

main47371-30270

9017906161

main90179-06161

9046400656

main90464-00656

9046808034

main90468-08034

9094901732

main90949-01732

9094901872

main90949-01872

9161660620

main91616-60620

9162660625

main91626-60625

33 parts on this diagram · 6 diagrams in section
