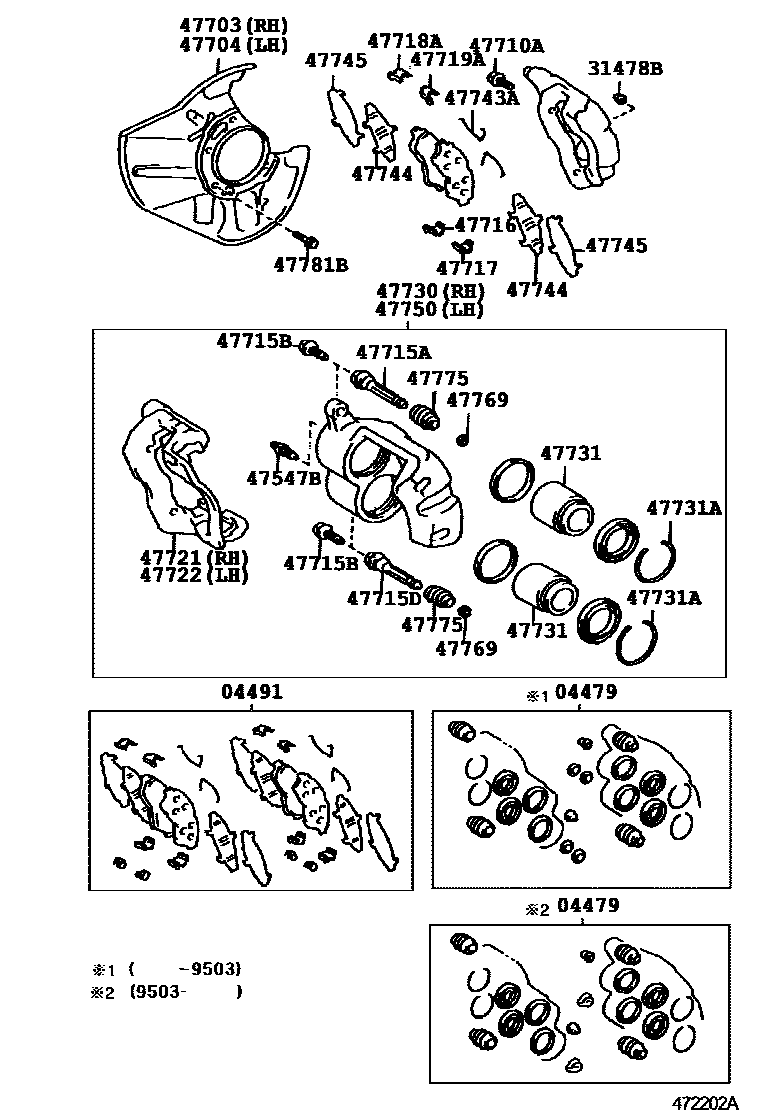

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0004 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-30120iJZS147,UZS143199110-199503

main04479-30121iJZS147,UZS143199503-199508

main04479-30190iJZS147,UZS143199508-199708

sub04479-30191

04491PAD KIT, DISC BRAKE, FRONT

main04491-30280iJZS147..V199110-199210

sub04491-30281

main04491-30281iJZS147..V199210-199308

sub04465-30120

main04491-30291iJZS147..Q199110-199505

sub04465-30080

main04491-30330iUZS143199210-199304

sub04491-50120

main04491-50120iUZS143199304-199411

sub04491-50121

main04491-50180iJZS147,UZS143..V,Z199411-199505

sub04465-50040

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iJZS147,UZS143199110-199708

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-27030iJZS147,UZS143199110-199708

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47781-30150iJZS147..V199110-199508

sub47781-30191

sub90148-60028

main47781-30160iJZS147..Q199110-199708

main47781-30170iUZS143199210-199508

sub47781-30180

main47781-30180iUZS143199508-199708

main47781-30190iJZS147..V199508-199609

sub47781-30191

sub90148-60028

main47781-30191iJZS147..V199609-199708

sub47781-30210

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47782-30150iJZS147..V199110-199508

sub47782-30191

sub90148-60028

main47782-30160iJZS147..Q199110-199708

main47782-30170iUZS143199210-199508

sub47782-30180

main47782-30180iUZS143199508-199708

main47782-30190iJZS147..V199508-199609

sub47782-30191

sub90148-60028

main47782-30191iJZS147..V199609-199708

sub47782-30210

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12228iJZS147,UZS143199110-199708

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-30060iJZS147,UZS143199509-199708

main47715-50020iJZS147,UZS143199110-199508

main47715-50030iJZS147,UZS143199508-199509

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08164iJZS147,UZS143199110-199708

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-22070iJZS147,UZS143199509-199708

main47715-50010iJZS147,UZS143199508-199509

main47715-50020iJZS147,UZS143199110-199508

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-24010iJZS147,UZS143..V,Z199303-199308

main47716-30080iJZS147,UZS143..V,Z199110-199303

sub47716-24010

sub47716-50050

main47716-30100iJZS147..Q199110-199302

sub47716-50010

main47716-30160iJZS147..Q199509-199708

main47716-50010iJZS147..Q199302-199509

main47716-50050iJZS147,UZS143..V,Z199304-199411

sub47716-50051

main47716-50051iJZS147,UZS143..V,Z199411-199508

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-24020iJZS147,UZS143..V,Z199303-199308

main47716-30090iJZS147,UZS143..V,Z199110-199303

sub47716-24020

sub47716-50060

main47716-30110iJZS147..Q199110-199302

sub47716-50030

main47716-30170iJZS147..Q199509-199708

main47716-50030iJZS147..Q199302-199509

main47716-50060iUZS143199304-199411

sub47716-50061

main47716-50061iJZS147,UZS143..V,Z199411-199508

47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)

main47717-24010iJZS147,UZS143..V,Z199303-199411

main47717-30050iJZS147..Q199508-199708

main47717-30070iJZS147,UZS143..V,Z199508-199708

main47717-50011iJZS147..Q199302-199508

main47717-50051iJZS147,UZS143..V,Z199411-199508

47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)

main47717-24020iJZS147,UZS143..V,Z199303-199411

main47717-30060iJZS147..Q199508-199708

main47717-30080iJZS147,UZS143..V,Z199508-199708

main47717-50031iJZS147..Q199302-199508

main47717-50061iJZS147,UZS143..V,Z199411-199508

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-30130iJZS147,UZS143..V,Z199110-199402

sub47721-30132

main47721-30132iJZS147,UZS143..V,Z199402-199508

main47721-30140iJZS147..Q199110-199708

main47721-30180iJZS147,UZS143..V,Z199508-199708

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-30050iJZS147,UZS143..V,Z199110-199402

sub47722-30052

main47722-30052iJZS147,UZS143..V,Z199402-199508

main47722-30060iJZS147..Q199110-199708

main47722-30100iJZS147,UZS143..V,Z199508-199708

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-30230iJZS147,UZS143..V,Z199110-199304

sub47730-30231

main47730-30231iJZS147,UZS143..V,Z199304-199402

sub47730-30233

main47730-30233iJZS147,UZS143..V,Z199402-199508

main47730-30240iJZS147..Q199110-199304

sub47730-30241

main47730-30241iJZS147..Q199304-199508

sub47730-30490

main47730-30390iJZS147..Q199508-199708

sub47730-30490

main47730-30400iJZS147,UZS143..V,Z199508-199708

47731PISTON, FRONT DISC BRAKE

main47731-30140iJZS147,UZS143199509-199708

main47731-50030iJZS147,UZS143199110-199509

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90520-52006iJZS147,UZS143199509-199708

main90522-50002iJZS147,UZS143199110-199509

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-30020iJZS147,UZS143..V,Z199110-199708

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-14130iJZS147,UZS143..V,Z199304-199708

main47744-33020iJZS147..Q199508-199708

main47744-50010iJZS147..Q199110-199508

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-14060iUZS143199304-199708

main47745-30050iJZS147..Q199110-199302

sub47745-50010

main47745-33020iJZS147..Q199508-199708

main47745-50010iJZS147..Q199302-199508

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-30230iJZS147,UZS143..V,Z199110-199304

sub47750-30231

main47750-30231iJZS147,UZS143..V,Z199304-199402

sub47750-30233

main47750-30233iJZS147,UZS143..V,Z199402-199508

main47750-30240iJZS147..Q199110-199304

sub47750-30241

main47750-30241iJZS147..Q199304-199508

sub47750-30490

main47750-30390iJZS147..Q199508-199708

sub47750-30490

main47750-30400iJZS147,UZS143..V,Z199508-199708

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iJZS147,UZS143199508-199708

main47769-50010iJZS147,UZS143199110-199508

SUB PIN SIDE

main47769-50020iJZS147,UZS143199110-199508

MAIN PIN SIDE

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-30070iJZS147,UZS143199509-199708

sub47775-50010

main47775-50010iJZS147,UZS143199110-199509

47781BBOLT(FOR DUST COVER SETTING)

main90119-06227iJZS147,UZS143199110-199609

main90148-60028iJZS147,UZS143199609-199708
