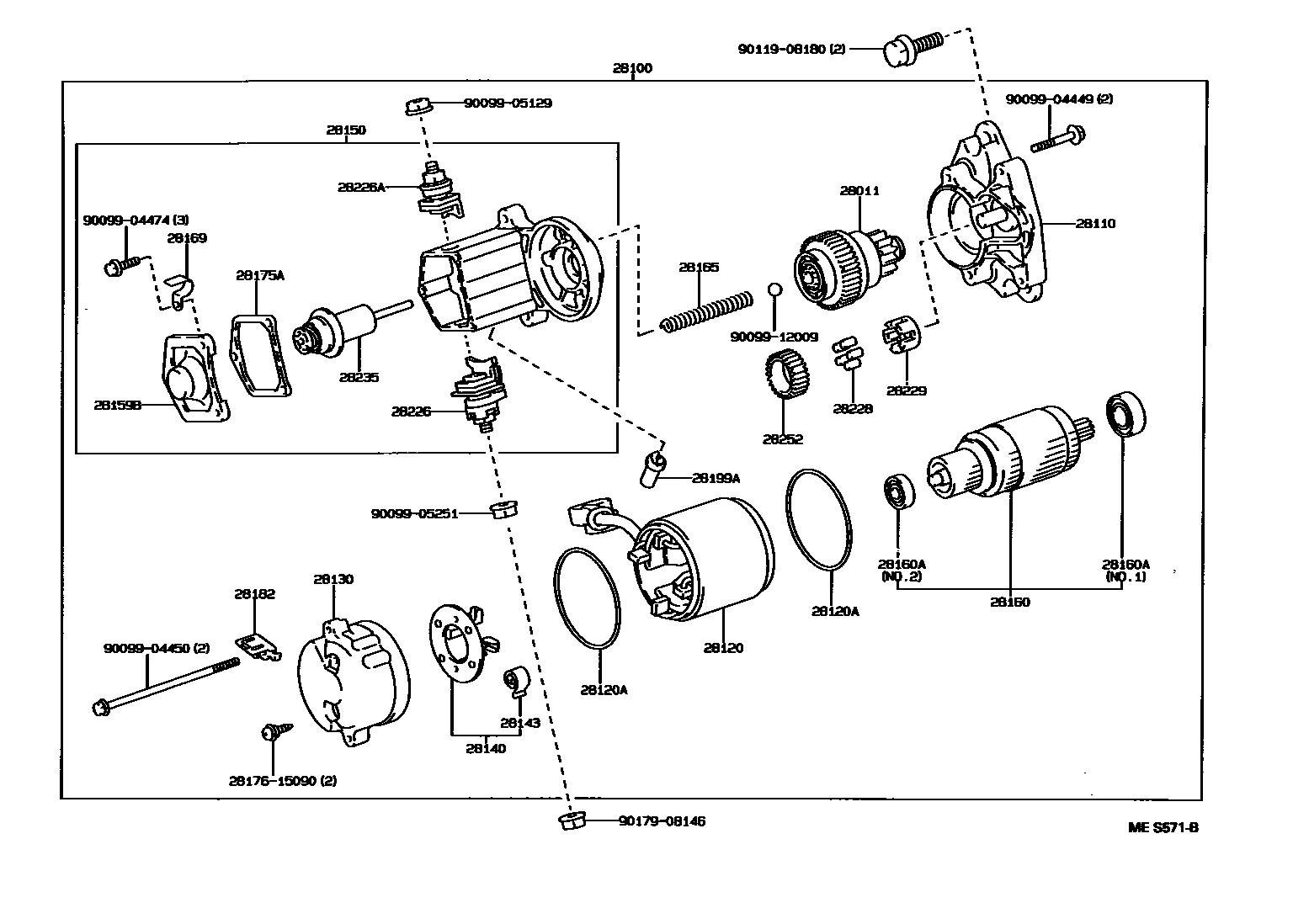

STARTER
28011CLUTCH SUB-ASSY, STARTER
28100STARTER ASSY
sub28100-46100
sub28100-46100
sub28100-46140
sub28100-50020
sub28100-50051
sub28100-50052
28110HOUSING ASSY, STARTER DRIVE
28120YOKE ASSY, STARTER
28120ARING, O(FOR STARTER YOKE)
28130FRAME ASSY, STARTER COMMUTATOR END
28140HOLDER ASSY, STARTER BRUSH
28143SPRING, STARTER BRUSH
28159BCOVER, MAGNET SWITCH
28160ARMATURE ASSY, STARTER
28160ABEARING, STARTER ARMATURE
28165SPRING, STARTER MAGNET SWITCH RETURN
28169CLAMP, STARTER MOTOR LEAD WIRE
28175AGASKET, MAGNET SWITCH COVER
28182STAY, STARTER COMMUTATOR END FRAME
28199APROTECTOR, DUST STARTER
28228ROLLER, STARTER IDLE GEAR CLUTCH
28229RETAINER, STARTER IDLE GEAR
28235PLUNGER, MAGNET SWITCH
28252GEAR, STARTER IDLE
2817615090SCREW, STARTER
main28176-15090
9009904449
main90099-04449
9009904450
main90099-04450
9009904474
main90099-04474
9009905129
main90099-05129
9009905251
main90099-05251
9009912009
main90099-12009
9011908180
main90119-08180
9017908146
main90179-08146
32 parts on this diagram · 3 diagrams in section
