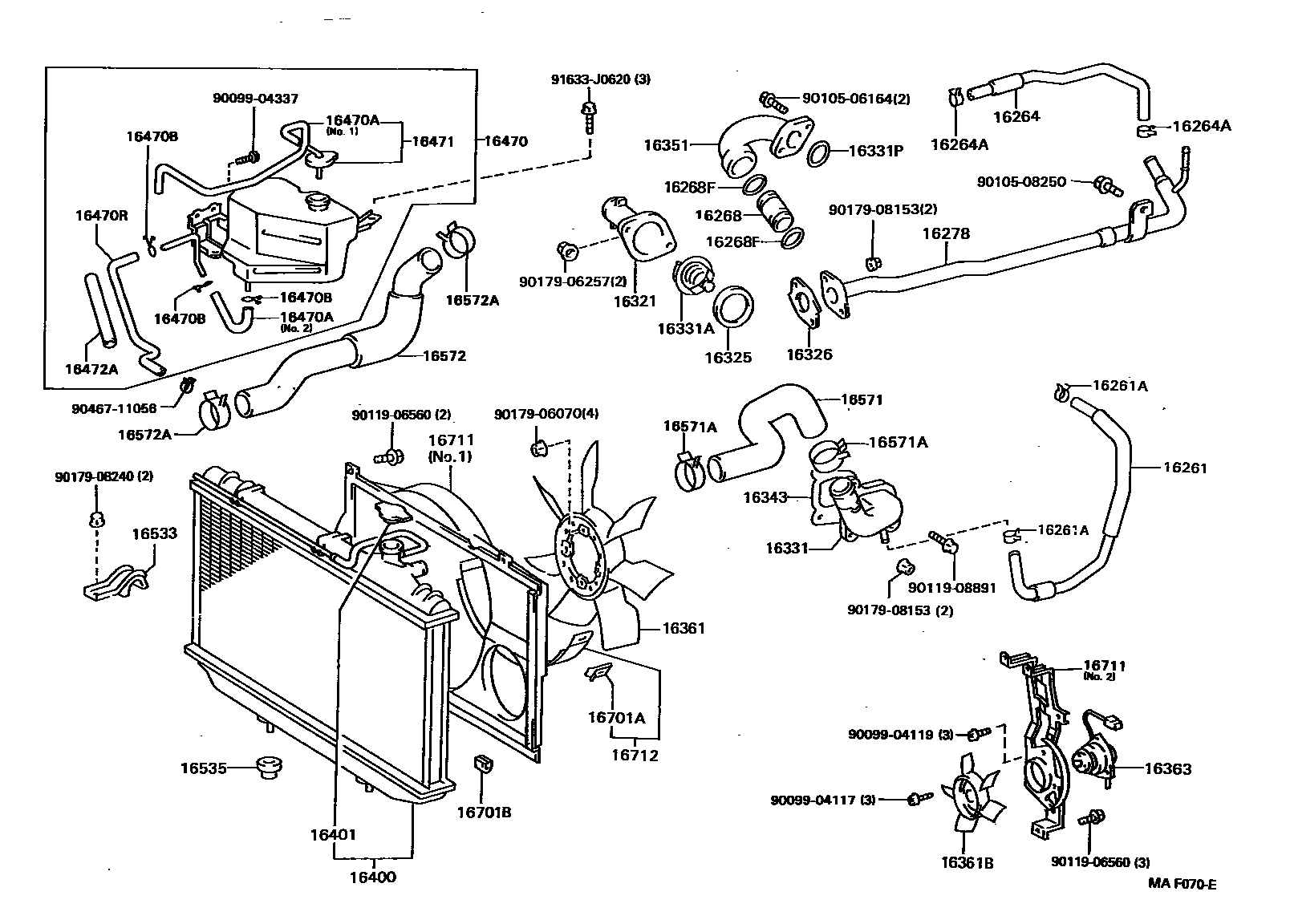

RADIATOR & WATER OUTLET
16261HOSE, WATER BY-PASS
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
sub96135-51300
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
sub96135-51300
16268PIPE, WATER BY-PASS, NO.1
16278PIPE, WATER BY-PASS, NO.2
16321INLET, WATER
16325GASKET, WATER INLET HOUSING, NO.1
16326GASKET, WATER INLET HOUSING, NO.2
16331PRING,O(FOR WATER OUTLET)
16343GASKET, WATER OUTLET HOUSING
16361FAN
16361BFAN, NO.2
16363MOTOR, COOLING FAN
16401CAP SUB-ASSY, RADIATOR
sub16401-20353
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)
16471CAP SUB-ASSY, RESERVE TANK
16472APROTECTOR, HOSE
16533SUPPORT, RADIATOR, UPPER
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
sub90467-37005
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16701SHROUD SUB-ASSY, FAN
16701ACLIP(FOR FAN SHROUD)
16701BCUSHION, FAN SHROUD
16711SHROUD, FAN
16712SHROUD, FAN, NO.2
9009904117
main90099-04117
9009904119
main90099-04119
9009904337
main90099-04337
9010506164
main90105-06164
9010508250
main90105-08250
9011906560
main90119-06560
9011908891
main90119-08891
9017906070
main90179-06070
9017906257
main90179-06257
9017908153
main90179-08153
9017908240
main90179-08240
9046711056
main90467-11056
91633J0620
main91633-J0620
50 parts on this diagram · 7 diagrams in section
