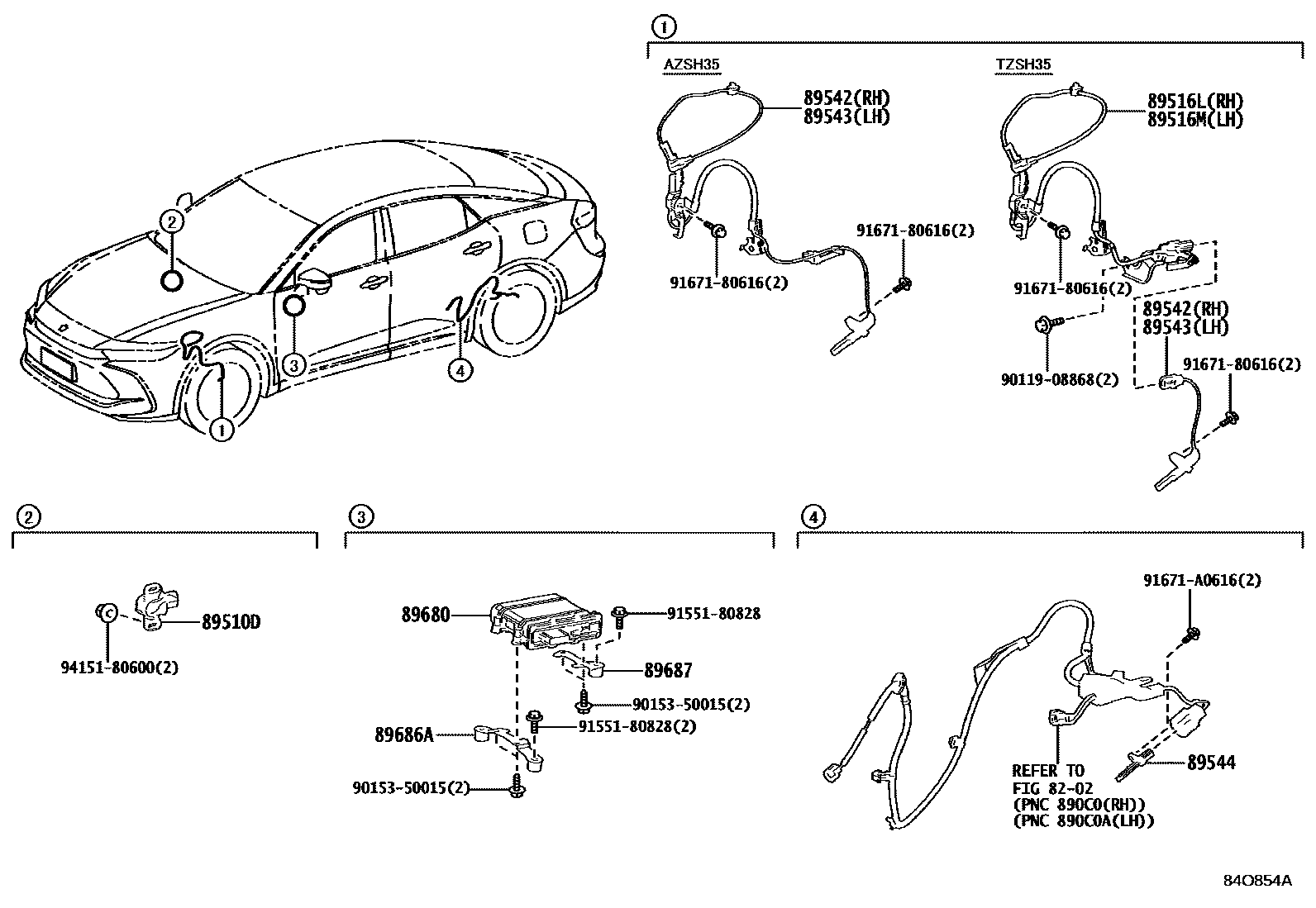

ABS & VSC

8202

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-42020iAZSH35,TZSH35¥7,900202209

89516LWIRE, SKID CONTROL SENSOR W/SUSPENSION CONTROL, RH

main89516-30240iTZSH35¥3,750202209

89516MWIRE, SKID CONTROL SENSOR W/SUSPENSION CONTROL, LH

main89516-30250iTZSH35¥4,640202209

89542SENSOR, SPEED, FRONT RH

main89542-30320iAZSH35¥8,100202209

main89542-78040iTZSH35¥8,100202209

89543SENSOR, SPEED, FRONT LH

main89543-30310iAZSH35¥8,100202209

main89543-78040iTZSH35¥8,100202209

89544SENSOR, SKID CONTROL

main89544-48050iAZSH35,TZSH35¥8,400202209

89680SUPPLY ASSY, BRAKE CONTROL POWER

main89680-48020iAZSH35..Z¥24,900202209

main89680-48030iTZSH35¥24,900202209-202404

89686ABRACKET, BRAKE CONTROL POWER SUPPLY, NO.1

main89686-30140iAZSH35,TZSH35¥840202209

89687BRACKET, BRAKE CONTROL POWER SUPPLY, NO.2

main89687-30020iAZSH35,TZSH35¥540202209

9011908868

main90119-08868¥70

9015350015

main90153-50015¥60

9155180828

main91551-80828¥80

9167180616

main91671-80616¥60

91671A0616

main91671-A0616¥60

9415180600

main94151-80600¥60

16 parts on this diagram · 1 diagram in section
