HEADLAMP
52537DRETAINER, FRONT BUMPER END, RH
52538DRETAINER, FRONT BUMPER END, LH
53181ECOVER, HEADLAMP, RH
53182ECOVER, HEADLAMP, LH
8110ALENS SUB-ASSY, HEADLAMP, RH
8110BLENS SUB-ASSY, HEADLAMP, LH
81110HEADLAMP ASSY, RH
81131AUNIT, HEADLAMP, RH
81132BGASKET, HEADLAMP LENS
8113ALED, HEADLAMP FRONT TURN SIGNAL
81150HEADLAMP ASSY, LH
81175UNIT ASSY, HEADLAMP, LH
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81193ERETAINER, HEADLAMP PROTECTOR, UPPER RH NO.3
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81194ERETAINER, HEADLAMP PROTECTOR, UPPER LH NO.3
85661MOTOR, HEADLAMP LEVELING, RH
85662MOTOR, HEADLAMP LEVELING, LH
85967CCOMPUTER, LIGHT CONTROL LED, RH
85967DCOMPUTER, LIGHT CONTROL LED, LH
9007502051
main90075-02051
9007502052
main90075-02052
9007502054
main90075-02054
9007502060
main90075-02060
9007502071
main90075-02071
9010506298
main90105-06298
9015960621
main90159-60621
9018906238
main90189-06238
9046709232
main90467-09232

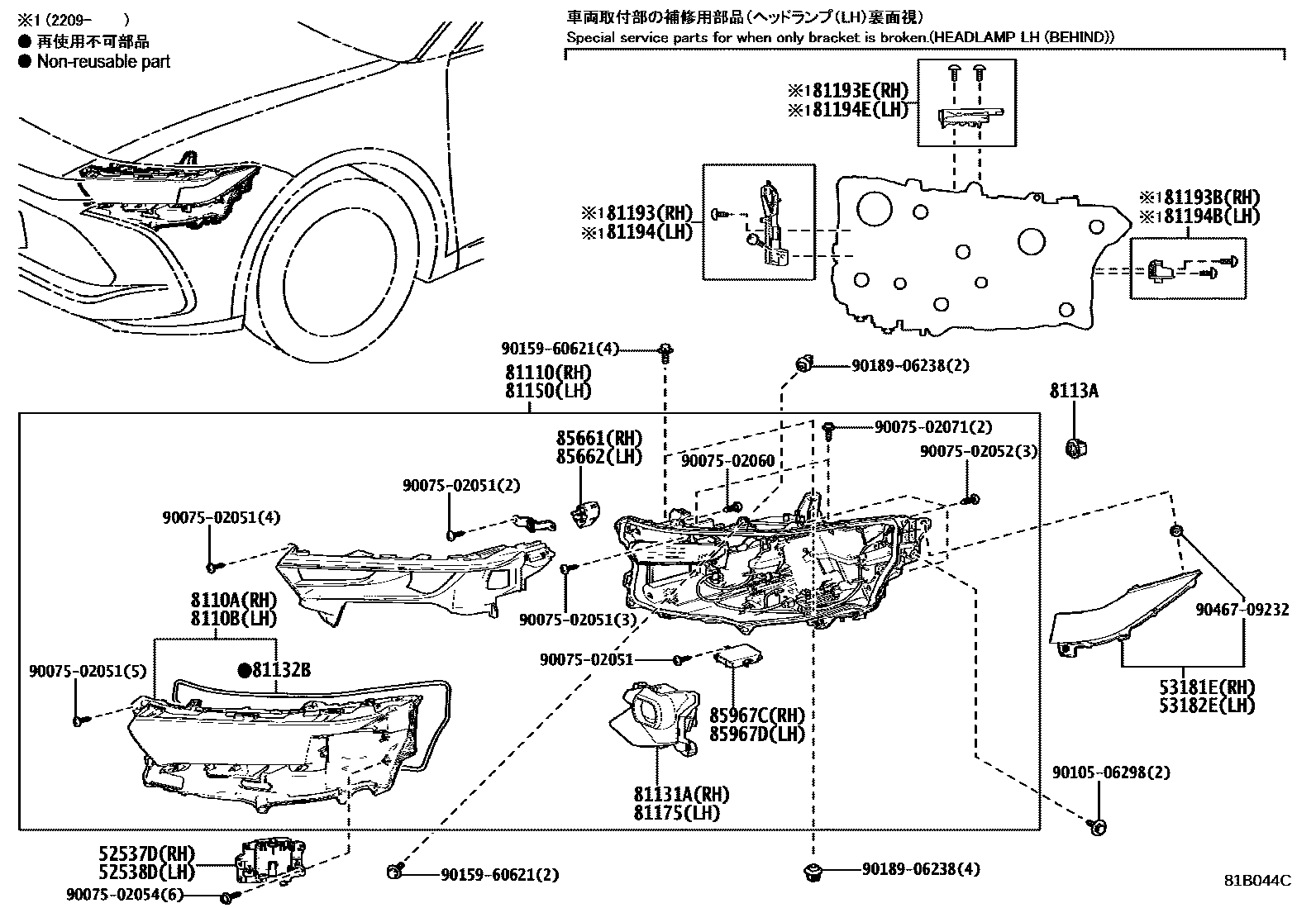

31 parts on this diagram · 2 diagrams in section
