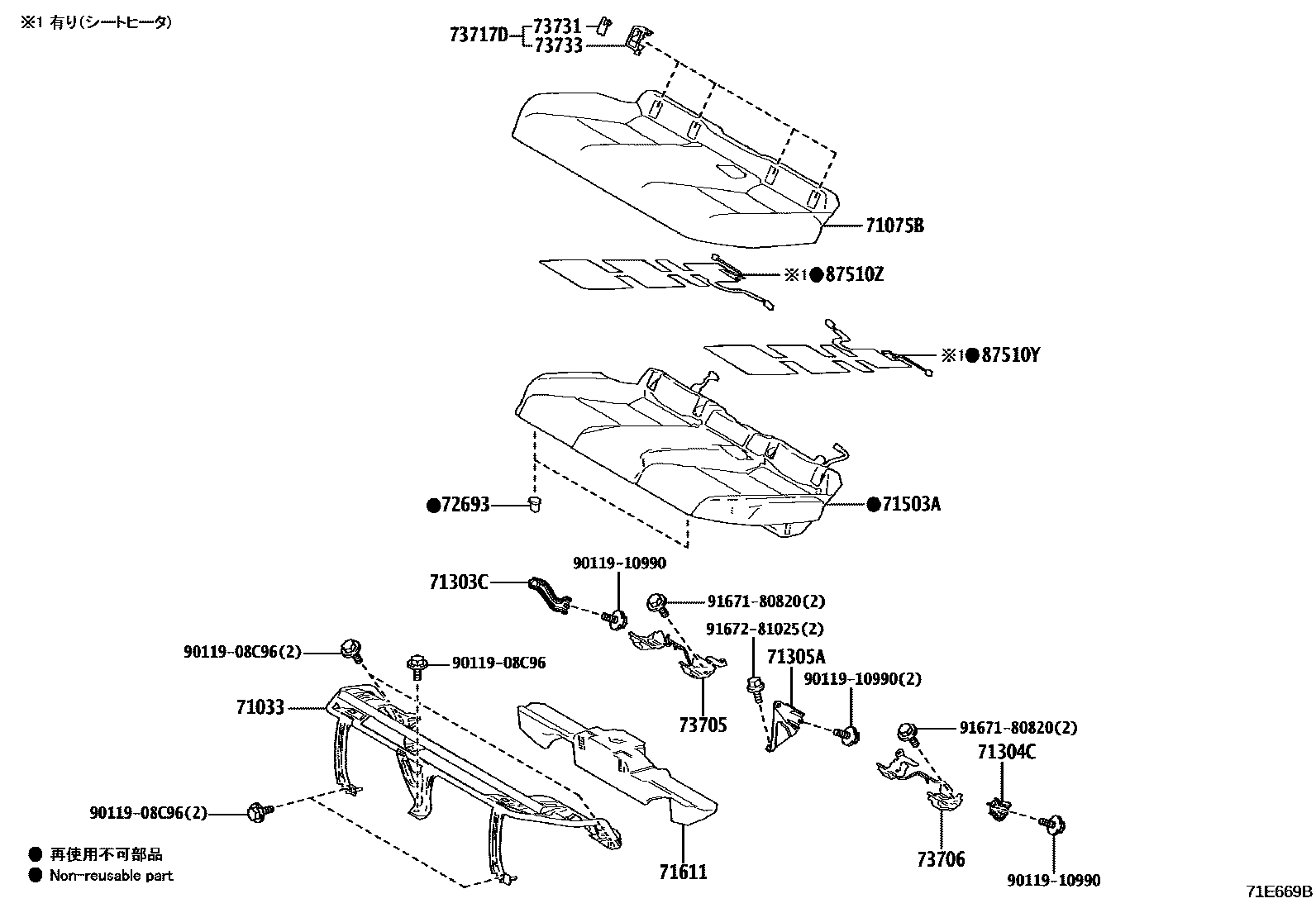

REAR SEAT & SEAT TRACK
71033LEG SUB-ASSY, REAR SEAT CUSHION
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
BLACK,TRIM2#
BLACK/LT.GRAY,TRIM2#
BLACK,TRIM2#
BLACK/LT.GRAY,TRIM2#
FROMAGE,TRIM0#
FROMAGE,TRIM0#
BLACK,TRIM20,23
BLACK/OCHER,TRIM21
BLACK/LT.GRAY,TRIM2#
71303CHINGE SUB-ASSY, REAR SEATBACK, RH
71304CHINGE SUB-ASSY, REAR SEATBACK, LH
71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER
71503APAD SUB-ASSY, REAR SEAT CUSHION
71611PAD, REAR SEAT CUSHION
72693HOOK, REAR SEAT CUSHION LOCK
73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
73717DCOVER, CHILD RESTRAINT SEAT TETHER ANCHOR
FROMAGE,TRIM0#
BLACK,TRIM2#
73731COVER, CHILD RESTRAINT SEAT
FROMAGE,TRIM0#
BLACK,TRIM2#
73733COVER, CHILD RESTRAINT SEAT BASE
FROMAGE,TRIM0#
BLACK,TRIM2#
87510YHEATER ASSY, REAR NO.1 SEAT CUSHION, LH
87510ZHEATER ASSY, REAR NO.1 SEAT CUSHION, RH
9011908C96
9011910990
9167180820
9167281025
19 parts on this diagram · 7 diagrams in section
