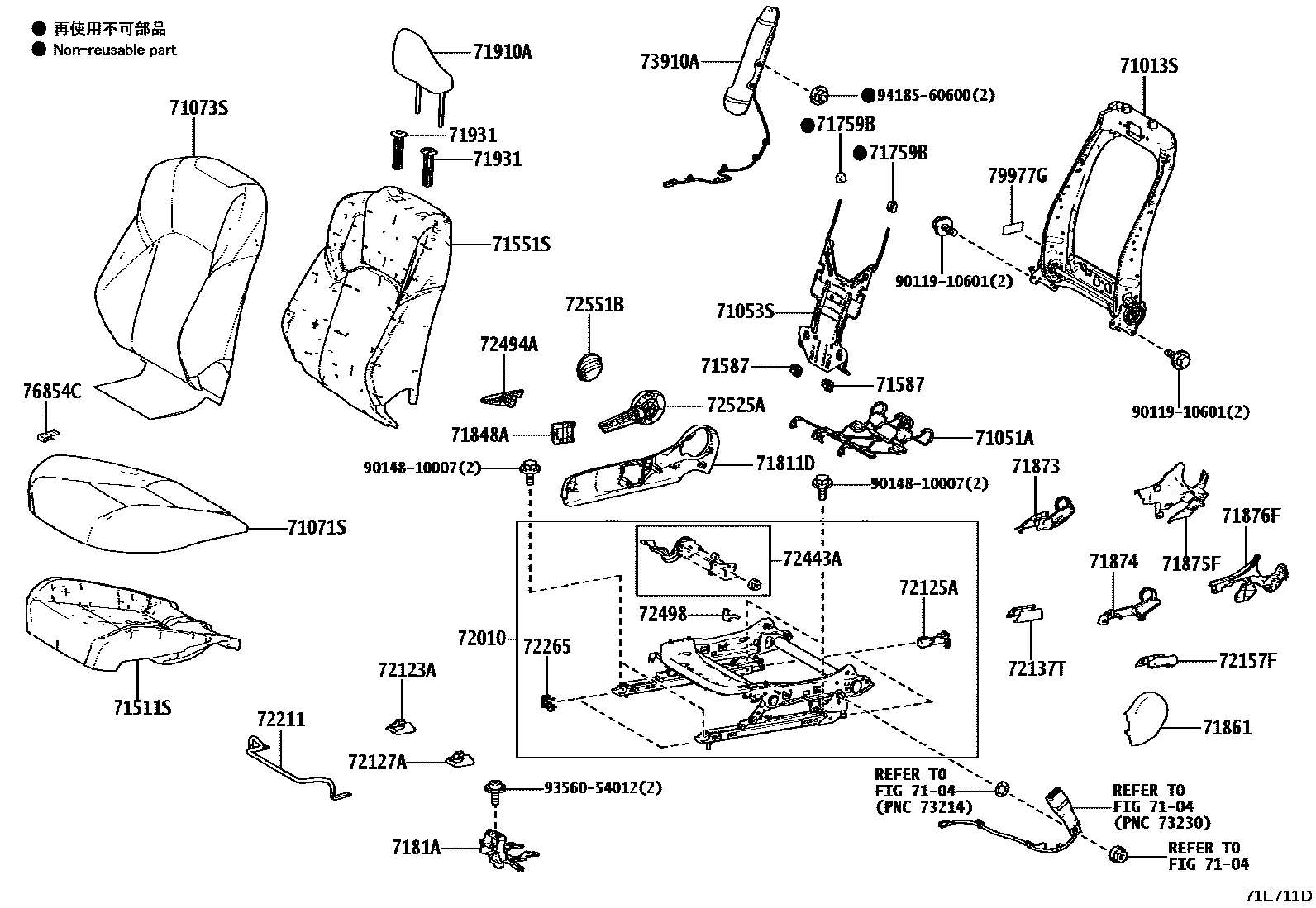

FRONT SEAT & SEAT TRACK
71013SFRAME SUB-ASSY, FRONT SEATBACK, RH
7104
71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH
71053SSPRING SUB-ASSY, FRONT SEATBACK, RH
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
BLACK,TRIM2#
BLACK/LT.GRAY,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK/LT.GRAY,TRIM2#
FROMAGE,TRIM0#
BLACK,TRIM20
BLACK/OCHER,TRIM21
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
BLACK,TRIM2#
BLACK/LT.GRAY,TRIM2#
BLACK,TRIM2#
BLACK/LT.GRAY,TRIM2#
BLACK,TRIM2#
BLACK,TRIM20
BLACK/OCHER,TRIM21
BLACK/LT.GRAY,TRIM2#
FROMAGE,TRIM0#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71587PROTECTOR, FRONT SEATBACK EDGE
71759BHOOK, FRONT SEATBACK
71811DSHIELD, FRONT SEAT CUSHION, RH
BLACK,TRIM0#,2#
7181AHOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH
71848ACAP, SEAT ADJUSTER COVER, RH
BLACK,TRIM2#
71861SHIELD, FRONT SEAT CUSHION, INNER RH
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
BLACK,TRIM2#
BLACK,TRIM0#,2#
71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
71910AHEADREST ASSY, FRONT SEAT
sub71910-30M20
sub71910-30M20
sub71910-30M20
sub71910-30M20
sub71910-30M20
sub71910-30M20
sub71910-30M20
sub71910-30M20
sub71910-30M20
sub71910-30M20
BLACK,TRIM2#
BLACK/LT.GRAY,TRIM2#
71931SUPPORT, FRONT SEAT HEADREST
72010ADJUSTER ASSY, FRONT SEAT, RH
72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH
72125ACOVER, SEAT TRACK, UPPER REAR
72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH
72137TCOVER, SEAT TRACK BRACKET, OUTER REAR RH
72157FCOVER, SEAT TRACK BRACKET, INNER REAR RH
72211HANDLE, SEAT TRACK ADJUSTING
72265COVER, SEAT TRACK UPPER RAIL, RH
72443AGEAR, VERTICAL ADJUSTER, RH
72494AHANDLE, FRONT SEAT VERTICAL ADJUSTER, RH
BLACK,TRIM2#
72498COVER, VERTICAL ADJUSTER BRACKET
72525AHANDLE, RECLINING ADJUSTER RELEASE, RH
BLACK,TRIM2#
72551BCOVER, RECLINING HINGE, RH
BLACK,TRIM2#
73910AAIRBAG ASSY, FRONT SEAT, RH
76854CRETAINER, FRONT SEAT CUSHION COVER
79977GFELT, FRONT SEATBACK, RH
9011910601
main90119-10601
9014810007
main90148-10007
9356054012
main93560-54012
9418560600
main94185-60600
40 parts on this diagram · 4 diagrams in section
