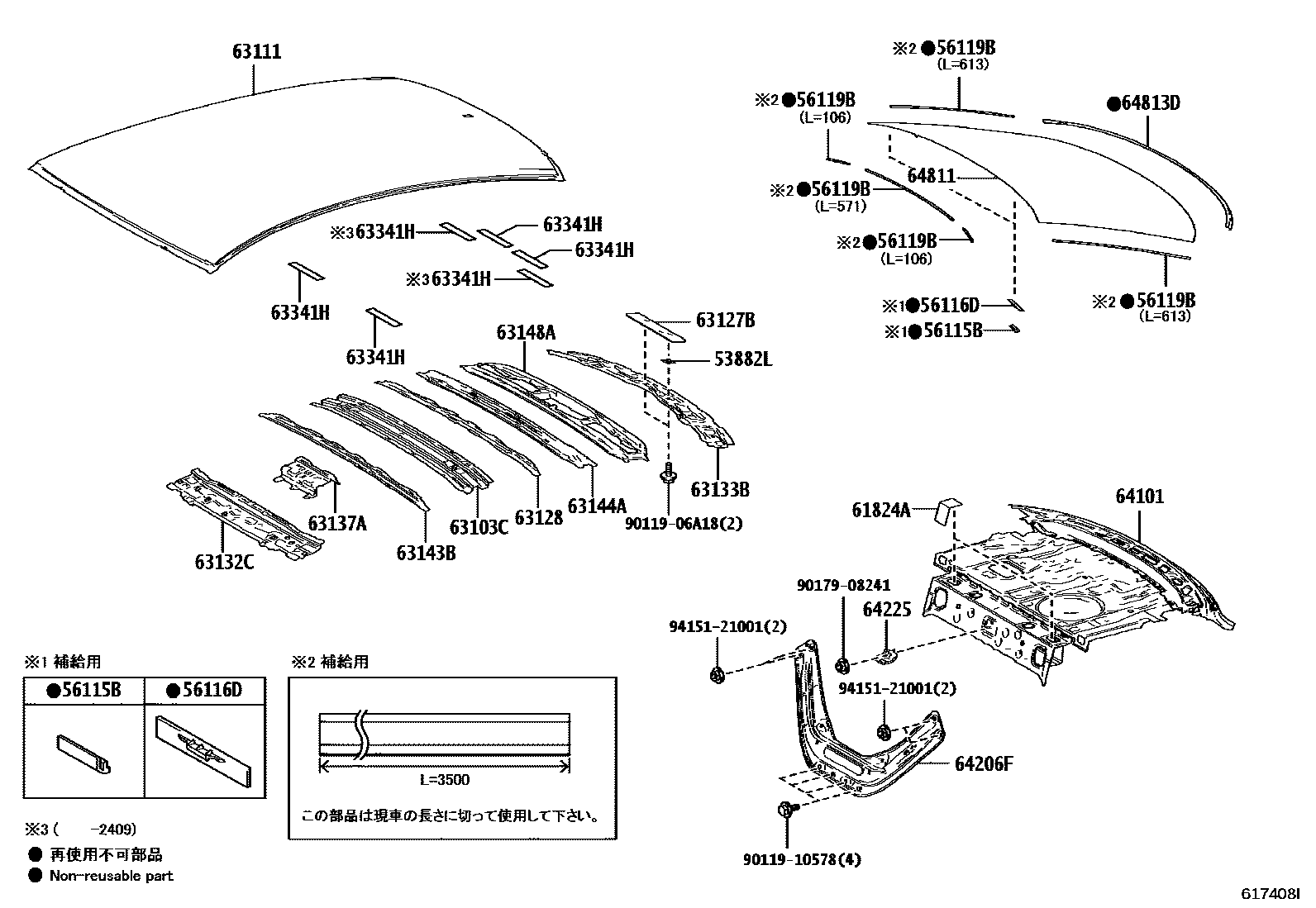

ROOF PANEL & BACK WINDOW GLASS
56115BSTOPPER, BACK WINDOW GLASS, NO.1
56116DSTOPPER, BACK WINDOW GLASS, NO.2
56119BDAM, BACK WINDOW GLASS ADHESIVE
61824APLATE, NOISE CONTROL, NO.1
63103CREINFORCEMENT SUB-ASSY, ROOF PANEL
63127BDAMPER, BACK WINDOW UPPER FREME
63128REINFORCEMENT, ROOF PANEL, NO.6
63132CPANEL, WINDSHIELD HEADER, INNER
63133BFRAME, BACK WINDOW
63137ABRACKET, DOME LAMP, NO.1
63143BREINFORCEMENT, ROOF PANEL, NO.3
63144AREINFORCEMENT, ROOF PANEL, NO.4
63148AREINFORCEMENT, ROOF PANEL, NO.7
63341HPAD, ROOF SILENCER
64101PANEL SUB-ASSY, UPPER BACK
64206FPANEL SUB-ASSY, ROOM PARTITION
64225HANGER, REAR SEAT CUSHION SUPPORT
64811GLASS, BACK WINDOW
64813DDAM, BACK WINDOW GLASS ADHESIVE
9011906A18
main90119-06A18
9011910578
main90119-10578
9017908241
main90179-08241
9415121001
main94151-21001
25 parts on this diagram · 5 diagrams in section
