FLOOR SIDE MEMBER
51908EBRACKET SUB-ASSY, RECEIVER HITCH
51967EHOOK, TRANSPORT, REAR RH
51997ACAP, RECEIVER HITCH
5701
57013BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
57014BBRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH
57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH
57023AMEMBER SUB-ASSY, REAR SIDE, RH
57024AMEMBER SUB-ASSY, REAR SIDE, LH
57025DMEMBER SUB-ASSY, FRONT SIDE, OUTER RH
57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH
57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH
57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH
57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57462MEMBER, CENTER FLOOR CROSS, NO.2
57505CREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57605DMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57606FMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
57646REINFORCEMENT, REAR SIDE MEMBER TO BODY, RH
57647REINFORCEMENT, REAR SIDE MEMBER TO BODY, LH
57653AMEMBER, REAR FLOOR CROSS, NO.2
58027FPANEL SUB-ASSY, CENTER FLOOR SIDE, RH
58028DPANEL SUB-ASSY, CENTER FLOOR SIDE, LH
9011506166
main90115-06166
9011912439
main90119-12439
9011912451
main90119-12451

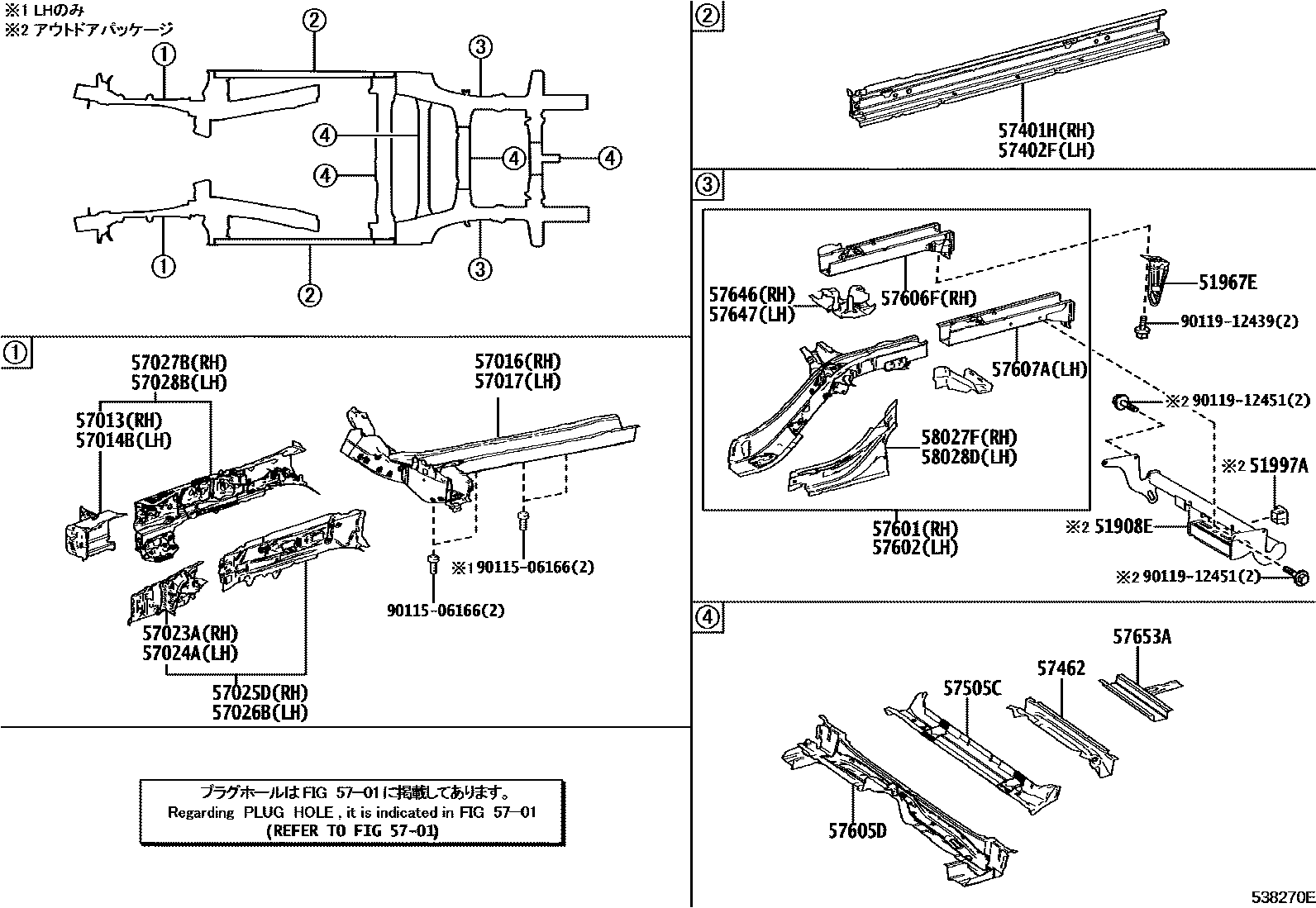

31 parts on this diagram · 1 diagram in section
