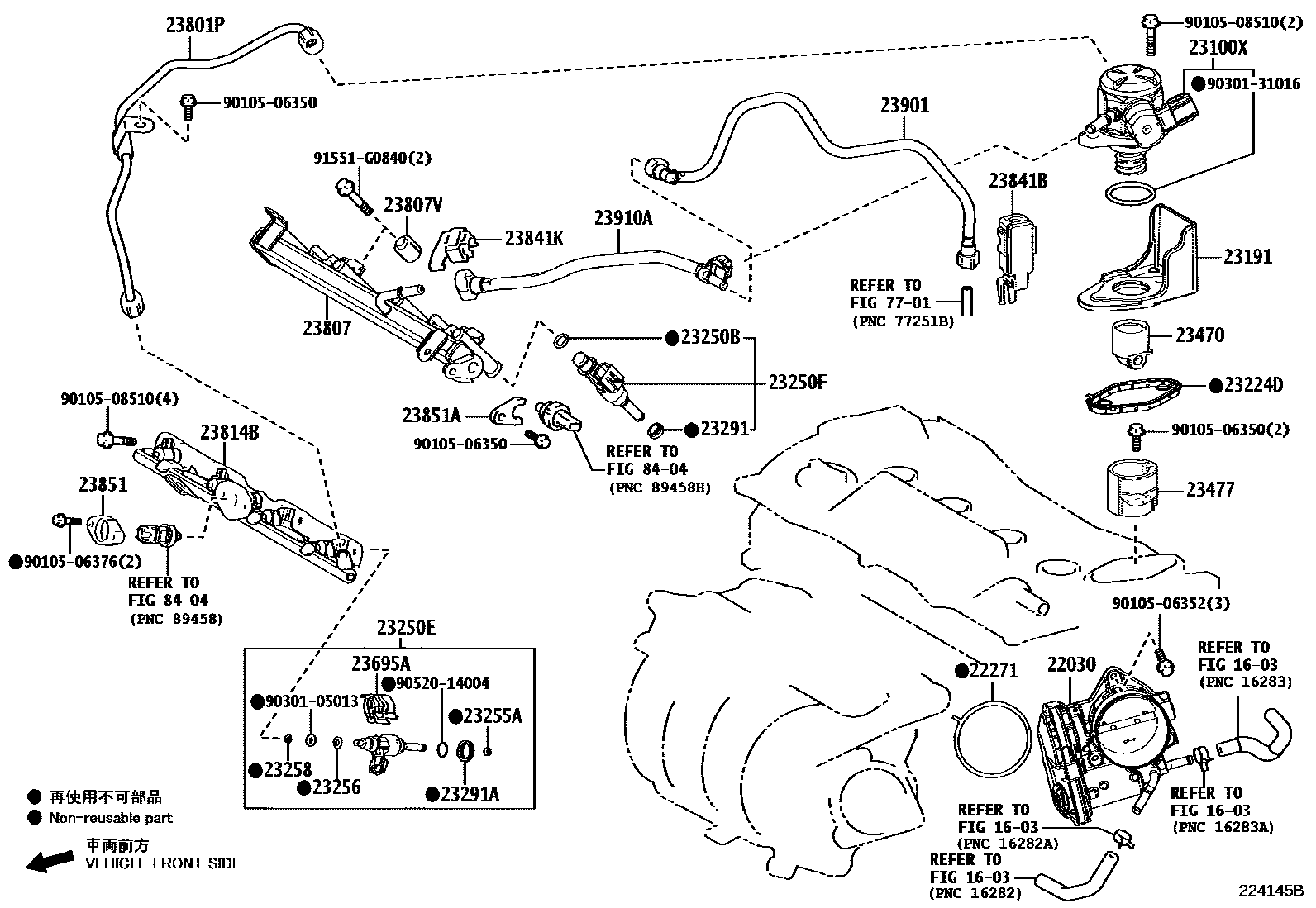

FUEL INJECTION SYSTEM
1603
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22271GASKET, THROTTLE BODY
23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)
23191FLANGE, FUEL PUMP
23224DGASKET, FUEL PUMP SPACER
23250BRING, O(FOR FUEL INJECTOR)
23250EINJECTOR ASSY, FUEL(FOR DIRECT)
23250FINJECTOR ASSY, FUEL(FOR PORT)
23255ASEAL, FUEL INJECTOR
23256RING, FUEL INJECTOR BACK-UP, NO.1
23258RING, FUEL INJECTOR BACK-UP, NO.3
23291INSULATOR, INJECTOR VIBRATION
23291AINSULATOR, INJECTOR VIBRATION
23470LIFTER ASSY, FUEL PUMP
23477GUIDE, FUEL PUMP LIFTER
23695ACLAMP, NOZZLE HOLDER
23801PPIPE SUB-ASSY, FUEL, NO.1
23807PIPE SUB-ASSY, FUEL DELIVERY
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23814BPIPE, FUEL DELIVERY
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23841KCLAMP, FUEL PIPE
23851HOLDER, FUEL PRESSURE SENSOR, NO.1
23851AHOLDER, FUEL PRESSURE SENSOR, NO.2
23901TUBE SUB-ASSY, FUEL
23910ATUBE SUB-ASSY, FUEL
7701
8404
9010506350
9010506352
9010506376
9010508510
9030105013
9030131016
9052014004
91551G0840
37 parts on this diagram · 2 diagrams in section
