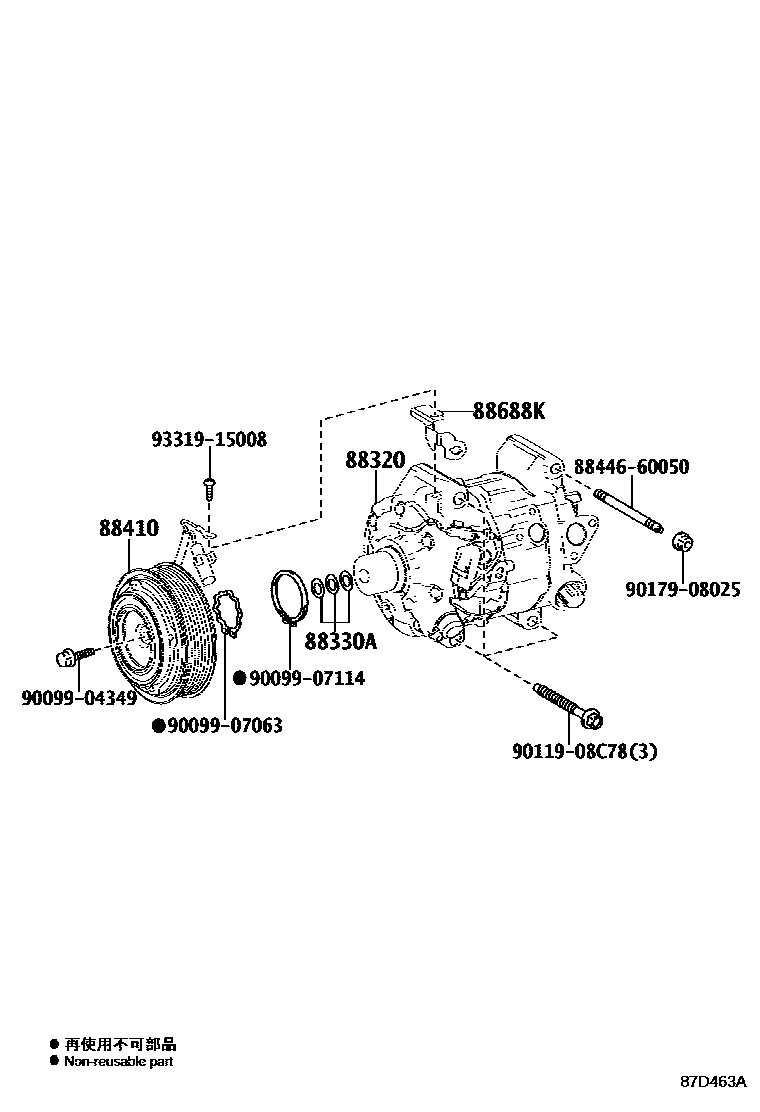

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1

88320COMPRESSOR ASSY, COOLER

main88320-3A440iGRS210,214201509-201512

main88320-3A450iGRS211201509-201512

main88320-3A510iGRS210,214201512-201804

main88320-3A520iGRS211201512-201804

main88320-48320iARS210201509-201804

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iGRS21#201212-201509

88410CLUTCH ASSY, MAGNET

main88410-0N010iARS210201509-201804

main88410-33180iGRS21#201212-201403

main88410-33190iGRS21#201509-201804

88688KBRACKET, COOLER COMPRESSOR

main88688-33570iARS210,GRS21#201509-201804

8844660050BOLT, IDLE PULLEY

main88446-60050

9009904349

main90099-04349

9009907063

main90099-07063

9009907114

main90099-07114

9011908C78

main90119-08C78

9017908025

main90179-08025

9331915008

main93319-15008

11 parts on this diagram · 5 diagrams in section
