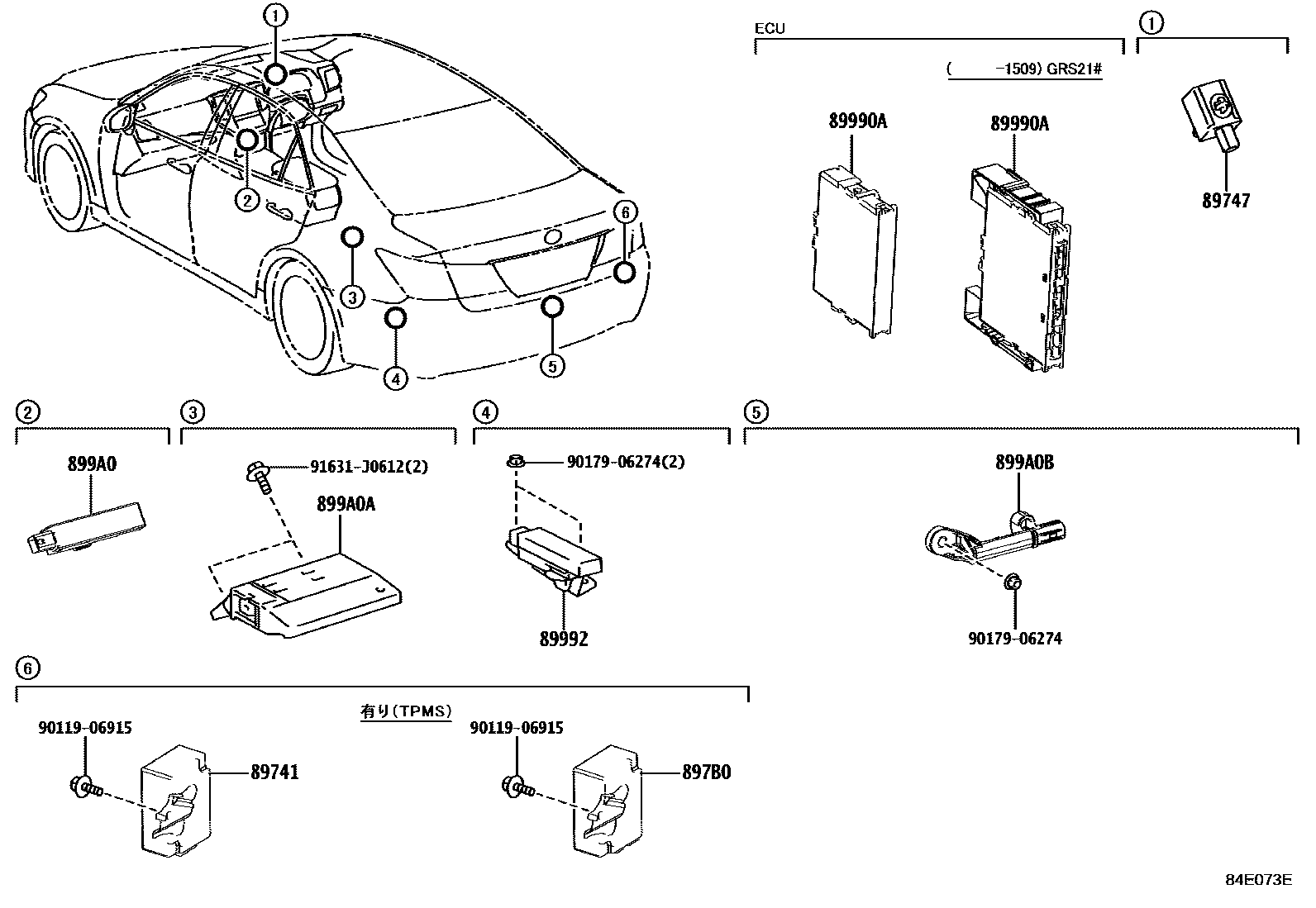

WIRELESS DOOR LOCK

89741RECEIVER, DOOR CONTROL

main89740-30400iAWS210,211,GRS21#201212-201509

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iAWS21#,GRS21#,GWS214201212-201509

897B0RECEIVER ASSY, ELECTRICAL KEY & TPMS

main897B0-30410iGWS214201309-201406

main897B0-30411iAWS215,GWS214201407-201509

89990ACOMPUTER ASSY, SMART KEY

main89990-30350iGRS21#..ATHG,ATHS,ROY,ROYG201212-201509

main89990-30351iARS210,GRS21#..ATHG,ATHS,ROY,ROYG201509-201804

main89990-30360iAWS210,211..ATHG,ATHS,ROY,ROYG201301-201509

main89990-30361iAWS210,211..ATHG,ATHS,ROY,ROYG201509-201804

main89990-30370iGRS210,211..ATH,ROYAL201212-201509

main89990-30371iARS210,GRS210,211..ATH,ROYAL201509-201804

main89990-30380iAWS210,211..ATH,ROYAL201301-201509

main89990-30381iAWS210,211..ATH,ROYAL201509-201804

main89990-30410iAWS215,GWS214201309-201509

main89990-30411iAWS215,GWS214201509-201804

89992OSCILLATOR, INDOOR ELECTRICAL KEY

main89992-30070iAWS21#,GRS21#,GWS214201212-201509

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-60010iAWS21#,GRS21#,GWS214201212-201509

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-22010iAWS21#,GRS21#,GWS214201212-201509

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main89997-30100iAWS21#,GRS21#,GWS214201212-201509

9011906915

main90119-06915

9017906274

main90179-06274

91631J0612

main91631-J0612

11 parts on this diagram · 1 diagram in section
