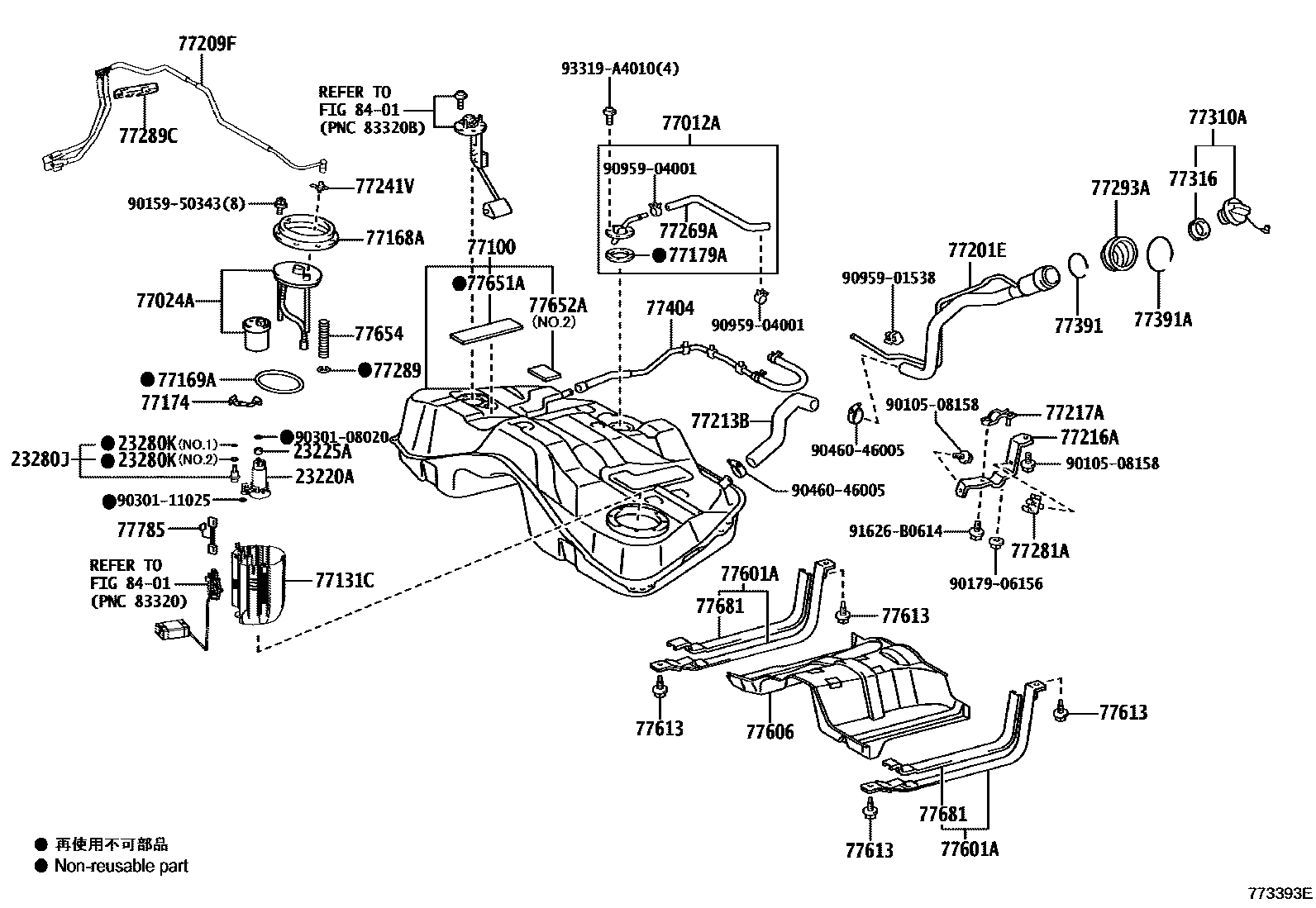

FUEL TANK & TUBE

0001 1����� ��� 0002 1����� ��� 0003 1����� ��� 0004 1����� ��� 0005 1����� ��� 0006 1����� ����� 0007 1����� ����� 0008 1����� ����� 0009 1����� ����� 0010 1����� ����� 0011 1��������� �����

23220APUMP ASSY, FUEL W/FILTER

main23220-31480i4GRFSE..GRS210,211201509-201804

main23220-36070i2ARFSE..AWS21#201301-201509

main23220-38041i2GRFXE..GWS214201509-201804

23225ASPACER, FUEL PUMP

main23225-21010i2GRFSE..GRS214201509-201804

main23225-21020i2ARFSE,4GRFSE..AWS21#,GRS210,211201212-201509

main23225-23010i2GRFXE..GWS214201309-201509

main23225-31010i8ARFTS..ARS210201509-201804

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-31020i2GRFSE..GRS214201212-201509

main23280-38020i2ARFSE,2GRFXE,4GRFSE..AWS21#,GRS210,211,GWS214201509-201804

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013×3i2ARFSE,2GRFSE,4GRFSE..AWS21#,GRS21#201509-201804

main90301-15024i2ARFSE,2GRFSE,4GRFSE..AWS21#,GRS21#201509-201804

77012ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.1

main77012-30150iAWS21#,GWS214201301-201509

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-30110iGRS214201212-201509

main77024-30210iGRS210,211201509-201804

main77024-30220iAWS21#201301-201509

main77024-30230iGWS214201309-201509

sub77024-30231

main77024-30240iARS210201509-201804

77100TANK ASSY, FUEL

main77001-30561iGRS21#201212-201509

main77001-30601iAWS21#,GWS214201301-201509

77131CSUB-TANK, FUEL, NO.1

main77131-22041iARS210201509-201804

main77131-30063iGRS210,211201212-201509

main77131-30071iGRS214201212-201509

main77131-30110iAWS21#,GWS214201509-201804

77168APLATE, FUEL TANK VENT TUBE SET

main77168-52020iAWS21#,GWS214201301-201509

77169AGASKET, FUEL SUCTION TUBE SET

main77169-30010iGRS21#201509-201804

main77169-52010iARS210,AWS21#,GWS214201509-201804

77174SUPPORT, FUEL SUCTION, NO.1

main77174-30050iGWS214201509-201804

main77174-48020iAWS21#,GRS210,211201212-201509

main77174-48040iARS210201509-201804

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-20040iARS210,AWS21#,GWS214201509-201804

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-30420iGRS21#201212-201509

main77201-30430iARS210,AWS21#,GWS214201509-201804

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-30220iGRS214201212-201509

main77209-30300iAWS21#201509-201804

main77209-30320iGRS210,211201212-201509

main77209-30330iGWS214201509-201804

main77209-30360iARS210201509-201804

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-22100iAWS21#,GWS214201301-201509

main77213-30191iGRS21#201509-201804

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-30051iAWS21#,GRS21#,GWS214201212-201509

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-30131iAWS21#,GRS21#,GWS214201212-201509

77241VCLIP, TUBE JOINT

main77241-33011iARS210,AWS21#201509-201804

77269AHOSE, FUEL TANK BREATHER

main77269-22010iAWS21#,GWS214201301-201509

main77269-30060iGRS21#201212-201509

77281ACLAMP, FUEL FILLER PIPE

main77281-50020iARS210,AWS21#,GRS21#,GWS214201509-201804

77289HOLDER, FUEL TANK PIPE SETTING

main77289-52090iAWS21#,GRS21#,GWS214201212-201509

77289CCLAMP, FUEL TUBE, NO.4

main77289-30070×2iGRS214201212-201509

main77289-30100iAWS21#,GWS214201301-201509

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-30110iAWS21#,GRS21#,GWS214201212-201509

77310ACAP ASSY, FUEL TANK

main77300-52030iAWS21#,GRS21#,GWS214201212-201509

77316GASKET, FUEL TANK CAP

main77316-52040iAWS21#,GRS21#,GWS214201212-201509

77391RING, FUEL INLET BOX

main77391-12020iAWS21#,GRS21#,GWS214201212-201509

77391ARING, FUEL INLET BOX

main77391-30020iAWS21#,GRS21#,GWS214201212-201509

77404HOSE SUB-ASSY, FUEL TANK VENT

main77404-30060iAWS21#,GWS214201301-201509

main77404-53040iARS210201509-201804

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-22110iARS210,AWS21#,GWS214201509-201804

main77601-30171×2iGRS21#201212-201509

main77601-53020iARS210,AWS21#,GWS214201509-201804

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-30190iGRS21#201509-201804

main77606-53031iAWS210201301-201307

main77606-53033iARS210,AWS21#,GWS214201509-201804

77613BOLT, FUEL TANK BAND SET

main90119-10971×4iAWS21#,GRS21#,GWS214201212-201509

77651ACUSHION, FUEL TANK, NO.1

main77651-53010iAWS21#,GWS214201301-201509

77652ACUSHION, FUEL TANK, NO.2

main77652-12100×10iARS210,AWS21#,GWS214201509-201804

77654CUSHION, FUEL TANK, NO.2

main77652-22090iAWS21#,GWS214201301-201509

main77652-30090iGRS21#201212-201509

77681SEAT, FUEL TANK BAND, RH

main77681-22020×2iAWS21#,GWS214201301-201509

main77681-30010×2iGRS21#201212-201509

77785HARNESS, FUEL PUMP

main77785-30020iGWS214201509-201708

main77785-30021iGWS214201709-201804

main77785-30040iGRS214201509-201708

main77785-30041iGRS214201709-201804

main77785-30050iARS210201509-201804

main77785-30070iAWS21#201509-201804

main77785-48040iGRS210,211201509-201804

8401

9010508158

main90105-08158

9015950343

main90159-50343

9017906156

main90179-06156

9030108020

main90301-08020

9030111025

main90301-11025

9046046005

main90460-46005

9095901538

main90959-01538

9095904001

main90959-04001

91626B0614

main91626-B0614

93319A4010

main93319-A4010

47 parts on this diagram · 11 diagrams in section
