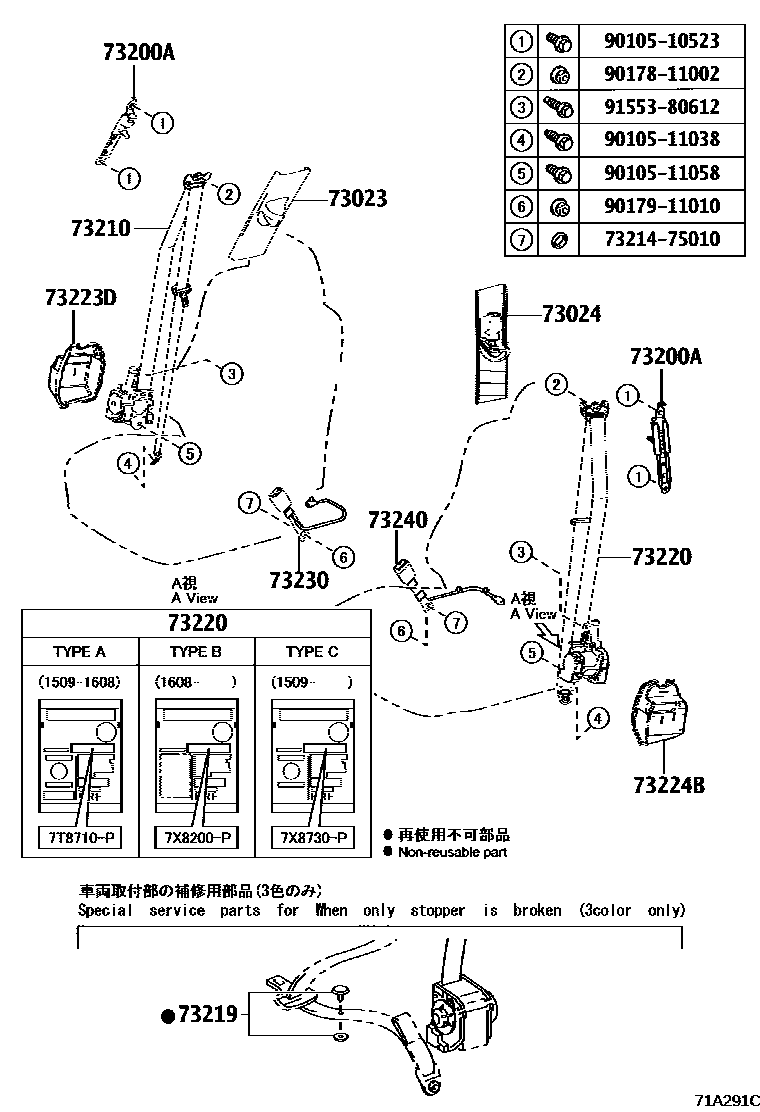

SEAT BELT & CHILD RESTRAINT SEAT

0001 1������� 0003 1�����

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-33030-A3iAWS210,211,GRS210,211..ROY,ROYAL,ROYG201509-201804

FLAXEN,TRIM0#

sub73023-58010

main73023-33030-B0iAWS215,GWS214201509-201804

GRAY,TRIM0#,2#,3#,4#,8#

sub73023-58010

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-33030-A3iAWS210,211,GRS210,211..ROY,ROYAL,ROYG201509-201804

FLAXEN,TRIM0#

sub73024-58010

main73024-33030-B0iAWS215,GWS214201509-201804

GRAY,TRIM0#,2#,3#,4#,8#

sub73024-58010

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12070×2iAWS21#,GRS21#,GWS214201507-201509

main73200-53010×2iAWS21#,GRS21#,GWS214201212-201506

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-30A30-A2iAWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG201509-201608

IVORY/FLAXEN,TRIM0#

main73210-30A30-A5iAWS210,211..ATHS201506-201509

WHITE,TRIM24

main73210-30A30-C1iAWS210,211,GRS210,211..ROY,ROYAL,ROYG201212-201509

BLACK/FLAXEN,TRIM4#

main73210-30A30-C2iARS210,AWS210,211,GRS211,214..ATHG201509-201608

BLACK/GRAY,TRIM2#,3#,4#,8#

main73210-30F60-A0iARS210,AWS210,211,GRS211,214..ATHG,ATHS201608-201804

WHITE,TRIM0#

main73210-30F60-A1iAWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG201608-201804

IVORY,TRIM0#

main73210-30F60-C0iAWS210,211,GRS210,211..ROY,ROYAL,ROYG201608-201804

BLACK/FLAXEN,TRIM2#

main73210-30F60-C1iARS210..ATHS201608-201804

BLACK/GRAY,TRIM2#,3#,4#,6#,8#

73219STOPPER, TONGUE PLATE

main73219-33010iAWS21#,GRS21#,GWS214201212-201509

main73219-33020iARS210,AWS21#,GRS21#,GWS214201509-201804

main73219-33030iARS210,AWS21#,GRS21#,GWS214201509-201804

main73219-50010iAWS21#,GRS21#,GWS214201506-201509

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-30E30-A2iAWS21#,GRS210,211,GWS214..MJ,ROY,ROYG201509-201608

main73220-30E30-A4iAWS210,211..ATHS201506-201509

WHITE,TRIM24

main73220-30E30-C1iAWS210,211,GRS210,211..ROY,ROYG201509-201608

main73220-30E30-C2iARS210,AWS210,211,GRS211,214..ATHS201509-201608

main73220-30E50-A0iARS210,AWS210,211,GRS211,214..ATHG,ATHS201608-201804

main73220-30E50-A1iAWS21#,GRS210,211,GWS214..MJ,ROY,ROYG201608-201804

IVORY,TRIM0#

main73220-30E50-C0iAWS210,211,GRS210,211..ROY,ROYG201608-201804

main73220-30E50-C1iARS210..ATHS201608-201804

main73220-30E70-A0iARS210,AWS210,211,GRS211,214..ATHG,ATHS201509-201804

main73220-30E70-A1iAWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG201509-201804

main73220-30E70-C0iAWS210,211,GRS210,211..ROY,ROYAL,ROYG201509-201804

main73220-30E70-C1iARS210..ATHS201509-201804

73223COVER, SEAT BELT RETRACTOR

main73223-30170×2iARS210,AWS21#,GRS21#,GWS214201509-201804

73223DCOVER, FRONT SEAT BELT RETRACTOR, RH

main73223-30180iARS210,AWS21#,GRS21#,GWS214201509-201804

73224BCOVER, FRONT SEAT BELT RETRACTOR, LH

main73224-30120iAWS21#,GRS21#,GWS214201212-201509

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-30A80-A0iAWS210,211,GRS210,211..ROY201212-201509

FLAXEN,TRIM0#

main73230-30A80-A1iAWS210,211..ATHS201506-201509

WHITE,TRIM24

main73230-30A80-C0iAWS210,211,GRS210,211..ROY201509-201804

BLACK,TRIM2#,3#,4#,6#,8#

main73230-30B90-A0iAWS210,211,GRS210,211..ROYAL201509-201804

FLAXEN,TRIM0#

main73230-30B90-C0iARS210,AWS210,211,GRS211..ATH201509-201804

BLACK,TRIM2#,3#,8#

main73230-30C10-A0iAWS21#,GRS210,211,GWS214..MJ,ROYG201509-201804

FLAXEN,TRIM0#

main73230-30C10-A2iARS210,AWS210,211,GRS211,214..ATHG201509-201804

WHITE,TRIM0#

main73230-30C10-C0iARS210,AWS21#,GRS211,214,GWS214..ATHG,MJ201509-201804

BLACK,TRIM2#,4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-30B80-A0iAWS21#,GRS210,211,GWS214..MJ,ROY,ROYG201212-201509

FLAXEN,TRIM0#

main73230-30B80-A2iARS210,AWS210,211,GRS211,214..ATHG,ATHS201509-201804

WHITE,TRIM0#

main73230-30B80-C0iGRS21#..ATHS201212-201509

BLACK,TRIM4#

main73230-30C00-A0iAWS210,211,GRS210,211..ROYAL201509-201804

FLAXEN,TRIM0#

main73230-30C00-C0iAWS210,211,GRS210,211..ROYAL201212-201509

BLACK,TRIM4#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010510523

main90105-10523

9010511038

main90105-11038

9010511058

main90105-11058

9017811002

main90178-11002

9017911010

main90179-11010

9155380612

main91553-80612

18 parts on this diagram · 2 diagrams in section
