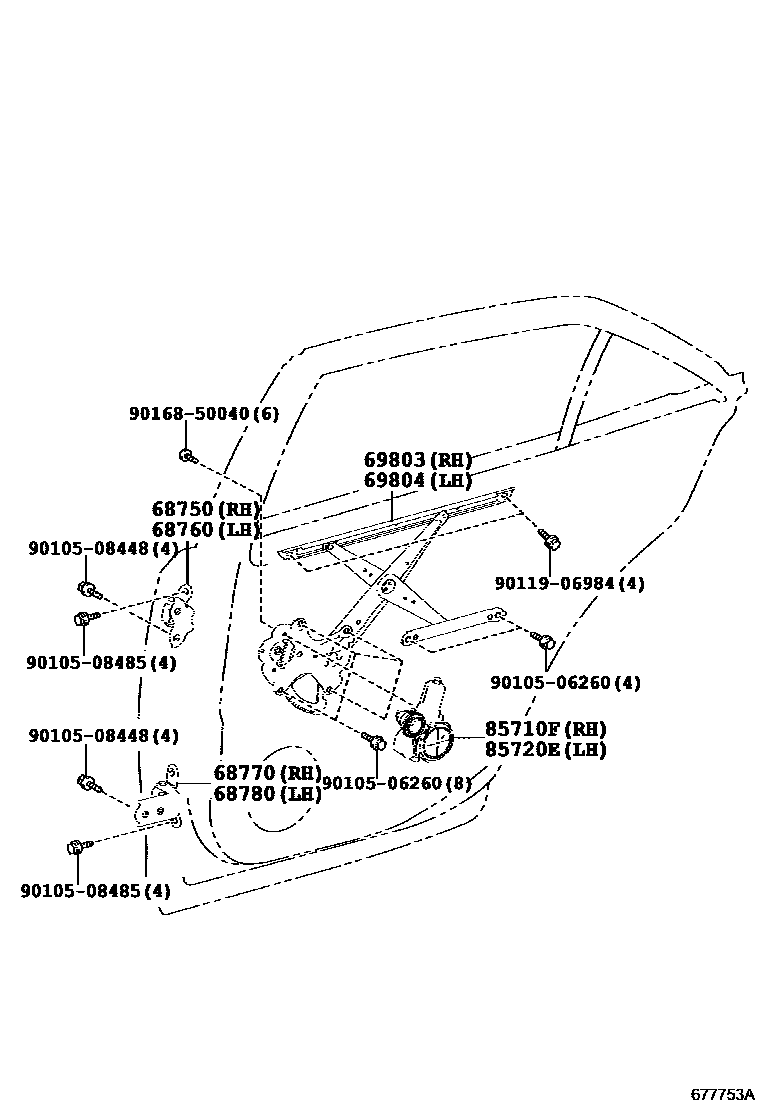

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20122iAWS21#,GRS21#,GWS214¥1,850201212-201509

main68750-20122iARS210,AWS21#,GRS21#,GWS214¥1,850201509-201804

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20122iAWS21#,GRS21#,GWS214¥1,850201212-201509

main68760-20122iARS210,AWS21#,GRS21#,GWS214¥1,850201509-201804

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-33040iAWS21#,GRS21#,GWS214¥2,700201212-201509

main68770-33040iARS210,AWS21#,GRS21#,GWS214¥2,700201509-201804

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-33040iAWS21#,GRS21#,GWS214¥2,700201212-201509

main68780-33040iARS210,AWS21#,GRS21#,GWS214¥2,700201509-201804

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69801-30290iAWS21#,GRS21#,GWS214¥4,560201212-201509

main69801-30290iARS210,AWS21#,GRS21#,GWS214¥4,560201509-201804

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69802-30290iAWS21#,GRS21#,GWS214¥4,560201212-201509

main69802-30290iARS210,AWS21#,GRS21#,GWS214¥4,560201509-201804

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-30530iAWS210,211,GRS21#¥33,300201212-201509

main85710-30550iAWS215,GWS214¥33,300201309-201509

main85710-30560iARS210,AWS210,211,GRS21#¥27,700201509-201804

main85710-30590iAWS215,GWS214¥27,700201509-201804

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-30470iAWS210,211,GRS21#¥33,300201212-201509

main85720-30490iAWS215,GWS214¥33,300201309-201509

main85720-30500iARS210,AWS210,211,GRS21#¥27,700201509-201804

main85720-30530iAWS215,GWS214¥27,700201509-201804

9010506260

main90105-06260¥60

9010508448

main90105-08448¥80

9010508485

main90105-08485¥80

9011906984

main90119-06984¥60

9016850040

main90168-50040¥70

13 parts on this diagram · 1 diagram in section
