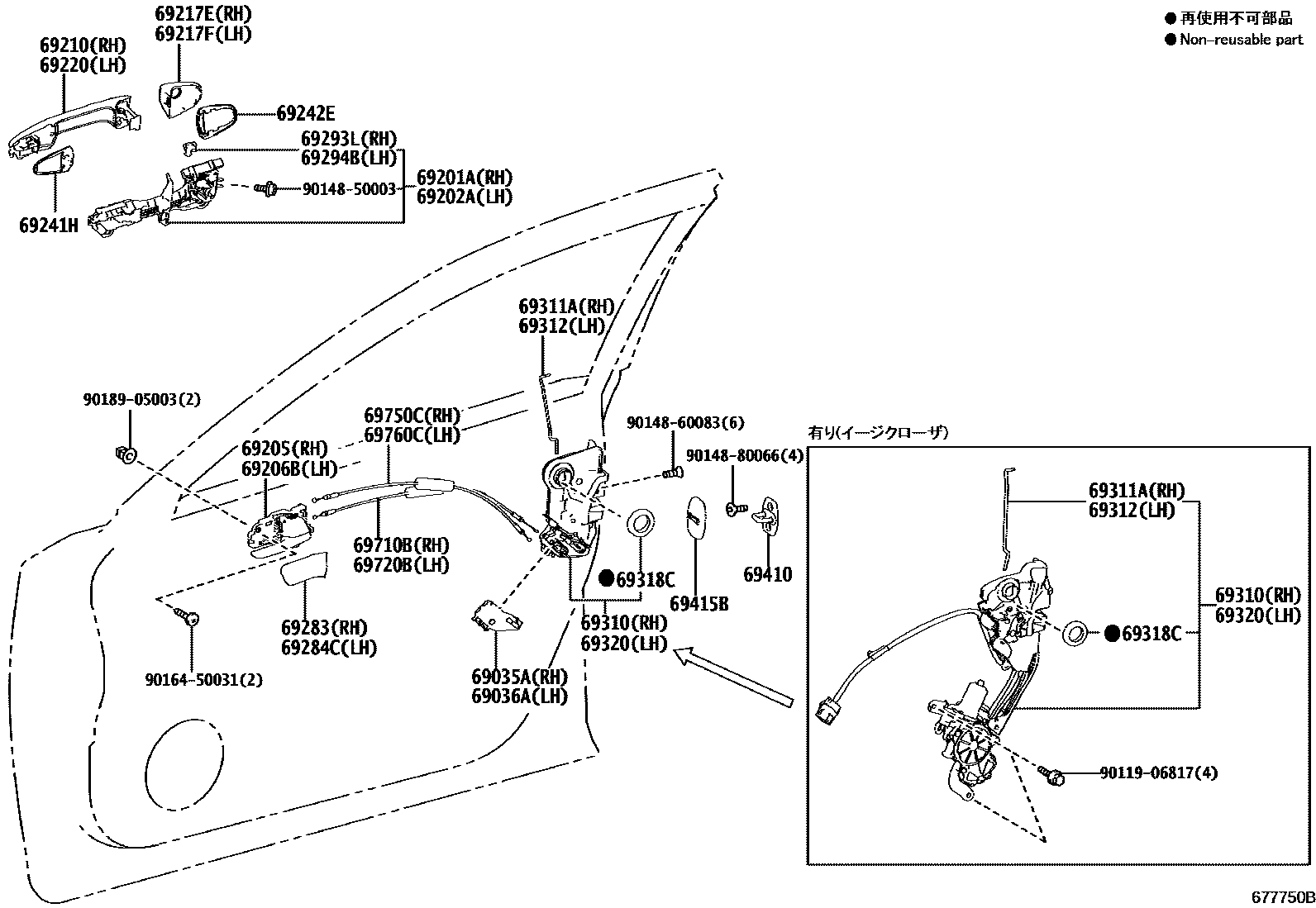

FRONT DOOR LOCK & HANDLE

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-30010iGRS214..ATHS;AWS210,211,GRS210,211..ATH,ATHG,ATHS,ROY,ROYAL201212-201804

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-30010iGRS214..ATHS;ARS210,AWS210,211,GRS210,211..ATH,ATHG,ATHS,ROY,ROYAL201212-201804

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-42070iAWS21#,GRS21#,GWS214201212-201804

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-42040iAWS21#,GRS21#,GWS214201212-201804

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-30210-C0iAWS210,211,GRS21#..ATH,ATHS201212-201509

BLACK,TRIM2#,3#

sub69205-30210

main69205-30210-C0iAWS210,211..ROY201301-201509

BLACK,TRIM0#,2#,4#

sub69205-30210

main69205-30210-C0iAWS215,GWS214201309-201701

BLACK,TRIM0#,2#

sub69205-30210

main69205-30210-C1iARS210..ATHS201701-201804

BLACK,TRIM0#,2#,3#,4#,6#

sub69205-30210

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-30210-C0iARS210,AWS210,211..ATHS201309-201701

BLACK,TRIM0#,2#

sub69206-30210

main69206-30210-C0iAWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG201212-201509

BLACK,TRIM2#,3#

sub69206-30210

main69206-30210-C0iAWS210,211..ROY201301-201509

BLACK,TRIM0#,2#,4#

sub69206-30210

main69206-30210-C1iARS210..ATHS201701-201804

BLACK,TRIM0#,2#,3#,4#,6#

sub69206-30210

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-30340-A0iAWS210,211,GRS210,211..ATH,ROYAL201212-201804

WHITE PEARL CS.,062

main69210-30340-B0iARS210,AWS210,211,GRS210,211..ATH,ROYAL201212-201804

SILVER ME.,1F7

main69210-30340-B1iARS210,AWS210,211,GRS210,211..ATH,ROYAL201212-201804

PRECIOUS SILVER,1J6

main69210-30340-C0iARS210,AWS210,211,GRS210,211..ATH,ROYAL201212-201804

BLACK,202

main69210-30340-C1iAWS211..ATH;AWS210,GRS210,211..ATH,ROYAL201212-201804

PRECIOUS BLACK,219

main69210-30340-D0iARS210,AWS210,211,GRS210,211..ATH,ROYAL201212-201804

DK. RED M.M.,3Q3

main69210-30340-J0iAWS210,211,GRS210,211..ROYAL201212-201804

DK.BLUE MC.,8S6

main69210-30350-A0iAWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG201212-201804

WHITE PEARL CS.,062

main69210-30350-B0iARS210,AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG201212-201804

SILVER ME.,1F7

main69210-30350-B1iARS210,AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG201212-201804

PRECIOUS SILVER,1J6

main69210-30350-C0iAWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG201212-201804

BLACK,202

main69210-30350-C1iAWS211..ATHG,ATHS,ROY;AWS210,GRS21#..ATHG,ATHS,ROY,ROYG201212-201804

PRECIOUS BLACK,219

main69210-30350-D0iAWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG201212-201804

DK. RED M.M.,3Q3

main69210-30350-G2iAWS210,211..ATHS201506-201509

LUMINOUS GREEN M.M.,6W5

main69210-30350-J0iAWS21#,GRS210,211,GWS214..MJ,ROY,ROYG201212-201804

DK.BLUE MC.,8S6

main69210-30350-J4iAWS210,211..ATHS201506-201509

COOL SODA ME.,8V7

main69210-30350-D2iAWS210,GRS211..ATHG201312-201402

main69210-30360-B0iARS210,AWS210,211,GRS211,214..ATHG,ATHS201509-201804

main69210-30360-D1iARS210,AWS210,211,GRS211,214..ATHG,ATHS201509-201804

main69210-30360-D3iARS210,AWS210,211,GRS211,214..ATHG,ATHS201512-201804

main69210-30360-E0iARS210,AWS210,211,GRS211,214..ATHG,ATHS201509-201804

main69210-30360-E1iARS210,AWS210,211,GRS211,214..ATHG,ATHS201509-201804

main69210-30360-E2iARS210,AWS210,211,GRS211,214..ATHG,ATHS201509-201804

main69210-30360-F0iARS210,AWS210,211,GRS211,214..ATHG,ATHS201509-201804

main69210-30360-G0iARS210,AWS210,211,GRS211,214..ATHG,ATHS201509-201804

main69210-30360-G1iARS210,AWS210,211,GRS211,214..ATHG,ATHS201509-201804

main69210-30360-J0iARS210,AWS210,211,GRS211,214..ATHG,ATHS201509-201804

main69210-30360-J2iARS210,AWS210,211,GRS211,214..ATHG,ATHS201509-201804

main69210-30360-J3iARS210,AWS210,211,GRS211,214..ATHG,ATHS201509-201804

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69217-30090-A0iAWS210,211,GRS210,211..ATH,ROYAL201212-201804

WHITE PEARL CS.,062

main69217-30090-B0iAWS210,211,GRS210,211..ATH,ROYAL201212-201804

SILVER ME.,1F7

main69217-30090-B1iAWS210,211,GRS210,211..ATH,ROYAL201212-201804

PRECIOUS SILVER,1J6

main69217-30090-C0iAWS210,211,GRS210,211..ATH,ROYAL201212-201804

BLACK,202

main69217-30090-C1iARS210,AWS210,211,GRS211..ATH201212-201804

PRECIOUS BLACK,219

main69217-30090-D0iAWS210,211,GRS210,211..ATH,ROYAL201212-201804

DK. RED M.M.,3Q3

main69217-30090-J0iAWS211..ROYAL;AWS210,GRS210,211..ATH,ROYAL201212-201804

DK.BLUE MC.,8S6

main69217-30120iARS210,AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG201212-201804

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69250-30070-A0iARS210,AWS210,211,GRS210,211..ATH,ROYAL201212-201804

WHITE PEARL CS.,062

main69250-30070-B0iARS210,AWS210,211,GRS210,211..ATH,ROYAL201212-201804

SILVER ME.,1F7

main69250-30070-B1iAWS210,211,GRS210,211..ATH,ROYAL201212-201804

PRECIOUS SILVER,1J6

main69250-30070-C0iAWS210,211,GRS210,211..ATH,ROYAL201212-201804

BLACK,202

main69250-30070-C1iAWS211..ATH;AWS210,GRS210,211..ATH,ROYAL201212-201804

PRECIOUS BLACK,219

main69250-30070-D0iARS210,AWS210,211,GRS210,211..ATH,ROYAL201212-201804

DK. RED M.M.,3Q3

main69250-30070-J0iAWS211..ROYAL;AWS210,GRS210,211..ATH,ROYAL201212-201804

DK.BLUE MC.,8S6

main69250-30090iAWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG201212-201804

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-30340-A0iARS210,AWS210,211,GRS210,211..ATH,ROYAL201212-201804

WHITE PEARL CS.,062

main69210-30340-B0iAWS210,211,GRS210,211..ATH,ROYAL201212-201804

SILVER ME.,1F7

main69210-30340-B1iARS210,AWS210,211,GRS210,211..ATH,ROYAL201212-201804

PRECIOUS SILVER,1J6

main69210-30340-C0iAWS210,211,GRS210,211..ATH,ROYAL201212-201804

BLACK,202

main69210-30340-C1iAWS211..ATH;AWS210,GRS210,211..ATH,ROYAL201212-201804

PRECIOUS BLACK,219

main69210-30340-D0iAWS210,211,GRS210,211..ATH,ROYAL201212-201804

DK. RED M.M.,3Q3

main69210-30340-J0iAWS211..ROYAL;AWS210,GRS210,211..ATH,ROYAL201212-201804

DK.BLUE MC.,8S6

main69210-30350-A0iARS210,AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG201212-201804

WHITE PEARL CS.,062

main69210-30350-B0iARS210,AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG201212-201804

SILVER ME.,1F7

main69210-30350-B1iAWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG201212-201804

PRECIOUS SILVER,1J6

main69210-30350-C0iARS210,AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG201212-201804

BLACK,202

main69210-30350-C1iAWS211..ATHG,ATHS,ROY;AWS210,GRS21#..ATHG,ATHS,ROY,ROYG201212-201804

PRECIOUS BLACK,219

main69210-30350-D0iAWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG201212-201804

DK. RED M.M.,3Q3

main69210-30350-G2iAWS210,211..ATHS201506-201509

LUMINOUS GREEN M.M.,6W5

main69210-30350-J0iAWS21#,GRS210,211,GWS214..MJ,ROY,ROYG201212-201804

DK.BLUE MC.,8S6

main69210-30350-J4iAWS210,211..ATHS201506-201509

COOL SODA ME.,8V7

main69210-30350-D2iAWS210,GRS211..ATHG201312-201402

main69210-30360-B0iARS210,AWS210,211,GRS211,214..ATHG,ATHS201509-201804

main69210-30360-D1iARS210,AWS210,211,GRS211,214..ATHG,ATHS201509-201804

main69210-30360-D3iARS210,AWS210,211,GRS211,214..ATHG,ATHS201512-201804

main69210-30360-E0iARS210,AWS210,211,GRS211,214..ATHG,ATHS201509-201804

main69210-30360-E1iARS210,AWS210,211,GRS211,214..ATHG,ATHS201509-201804

main69210-30360-E2iARS210,AWS210,211,GRS211,214..ATHG,ATHS201509-201804

main69210-30360-F0iARS210,AWS210,211,GRS211,214..ATHG,ATHS201509-201804

main69210-30360-G0iARS210,AWS210,211,GRS211,214..ATHG,ATHS201509-201804

main69210-30360-G1iARS210,AWS210,211,GRS211,214..ATHG,ATHS201509-201804

main69210-30360-J0iARS210,AWS210,211,GRS211,214..ATHG,ATHS201509-201804

main69210-30360-J2iARS210,AWS210,211,GRS211,214..ATHG,ATHS201509-201804

main69210-30360-J3iARS210,AWS210,211,GRS211,214..ATHG,ATHS201509-201804

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-30120iAWS21#,GRS21#,GWS214201212-201804

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-30100iAWS21#,GRS21#,GWS214201212-201804

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-30060-C1iAWS21#,GRS21#,GWS214201212-201612

BLACK

sub69283-30060

main69283-30060-C2iARS210,AWS21#,GRS21#,GWS214201612-201804

BLACK

sub69283-30060

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-30060-C1iAWS21#,GRS21#,GWS214201212-201612

BLACK

sub69284-30060

main69284-30060-C2iARS210,AWS21#,GRS21#,GWS214201612-201804

BLACK

sub69284-30060

69293LSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-12030iAWS21#,GRS21#,GWS214201212-201804

69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-12040iAWS21#,GRS21#,GWS214201212-201804

69310LOCK ASSY, FRONT DOOR, RH

main69030-30A70iGRS214..ATHS;AWS210,211,GRS210,211..ATH,ATHG,ATHS,ROY,ROYAL201212-201804

main69030-30A80iGRS214..ATHG;AWS21#,GRS210,211,GWS214..MJ,ROYG201212-201804

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-30160iGRS214..ATHS;AWS210,211,GRS210,211..ATH,ATHG,ATHS,ROY,ROYAL201212-201804

main69311-30170iGRS214..ATHG;AWS21#,GRS210,211,GWS214..MJ,ROYG201212-201804

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-30160iGRS214..ATHS;AWS210,211,GRS210,211..ATH,ATHG,ATHS,ROY,ROYAL201212-201804

main69312-30170iGRS214..ATHG;AWS21#,GRS210,211,GWS214..MJ,ROYG201212-201804

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iAWS21#,GRS21#,GWS214201212-201804

69320LOCK ASSY, FRONT DOOR, LH

main69040-30A80iGRS214..ATHS;ARS210,AWS210,211,GRS210,211..ATH,ATHG,ATHS,ROY,ROYAL201212-201804

main69040-30A90iGRS214..ATHG;AWS21#,GRS210,211,GWS214..MJ,ROYG201212-201804

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-30070iAWS21#,GRS21#,GWS214201212-201804

sub69410-33030

69415BCOVER, DOOR LOCK STRIKER, FRONT

main69415-33010iAWS21#,GRS21#,GWS214201212-201408

main69415-60020iAWS21#,GRS21#,GWS214201409-201804

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-30230iGRS214..ATHS;AWS210,211,GRS210,211..ATH,ATHG,ATHS,ROY,ROYAL201212-201804

main69710-30240iGRS214..ATHG;AWS21#,GRS210,211,GWS214..MJ,ROYG201212-201804

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-30230iGRS214..ATHS;AWS210,211,GRS210,211..ATH,ATHG,ATHS,ROY,ROYAL201212-201804

main69710-30240iGRS214..ATHG;AWS21#,GRS210,211,GWS214..MJ,ROYG201212-201804

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-30190iGRS214..ATHS;AWS210,211,GRS210,211..ATH,ATHG,ATHS,ROY,ROYAL201212-201508

sub69750-30210

main69750-30200iGRS214..ATHG;AWS21#,GRS210,211,GWS214..MJ,ROYG201212-201804

main69750-30210iGRS214..ATHS;ARS210,AWS210,211,GRS210,211..ATH,ATHG,ATHS,ROY,ROYAL201509-201804

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-30190iGRS214..ATHS;AWS210,211,GRS210,211..ATH,ATHG,ATHS,ROY,ROYAL201212-201508

sub69750-30210

main69750-30200iGRS214..ATHG;AWS21#,GRS210,211,GWS214..MJ,ROYG201212-201804

main69750-30210iGRS214..ATHS;ARS210,AWS210,211,GRS210,211..ATH,ATHG,ATHS,ROY,ROYAL201509-201804

9011906817

main90119-06817

9014850003

main90148-50003

9014860083

main90148-60083

9014880066

main90148-80066

9016450031

main90164-50031

9018905003

main90189-05003

33 parts on this diagram · 1 diagram in section
