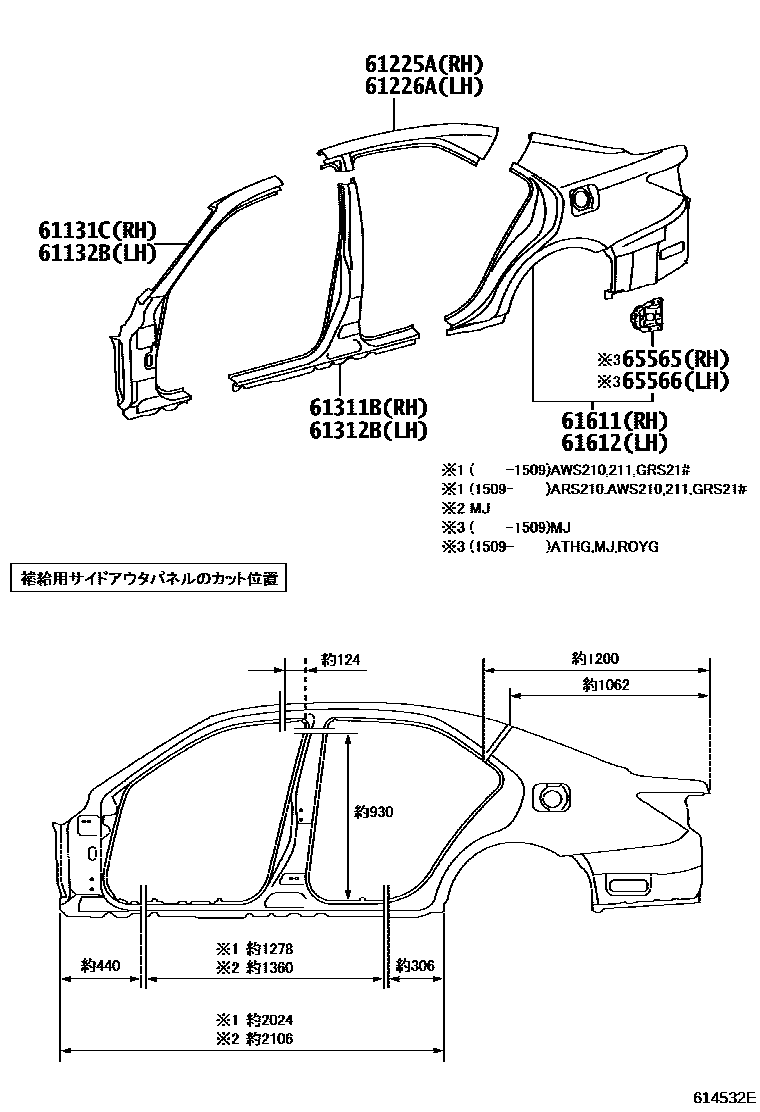

SIDE MEMBER

0001 1������� 0002 1�������,RH 0003 1�������,LH

61131CPILLAR, FRONT BODY, OUTER RH

main61131-30340iAWS21#,GRS21#,GWS214201212-201804

61132BPILLAR, FRONT BODY, OUTER LH

main61132-30350iAWS21#,GRS21#,GWS214201212-201804

61225ARAIL, ROOF SIDE OUTER UPPER NO.1, RH

main61225-30070iAWS210,211,GRS21#201212-201804

main61225-30080iAWS215,GWS214201309-201804

61226ARAIL, ROOF SIDE OUTER UPPER NO.1, LH

main61226-30070iAWS210,211,GRS21#201212-201804

main61226-30080iAWS215,GWS214201309-201804

61311BPILLAR, CENTER BODY, OUTER RH

main61311-30300iARS210,AWS210,211,GRS21#201212-201804

main61311-30310iAWS215,GWS214201309-201804

61312BPILLAR, CENTER BODY, OUTER LH

main61312-30400iAWS210,211,GRS21#201212-201804

main61312-30410iAWS215,GWS214201309-201804

61611PANEL, QUARTER, RH

main61611-30A30iARS210,AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL201212-201804

main61611-30A40iAWS215,GWS214201309-201804

main61611-30A50iARS210,AWS210,211,GRS21#..ATHG,ROYG201509-201804

61612PANEL, QUARTER, LH

main61612-30A70iAWS210,211,GRS21#201212-201804

main61612-30A80iAWS215,GWS214201309-201804

main61612-30A90iARS210,AWS210,211,GRS21#..ATHG,ROYG201509-201804

65565PATCH, SIDE PANEL REAR END, RH

main65565-30010iAWS215,GWS214201309-201804

65566PATCH, SIDE PANEL REAR END, LH

main65565-30010iAWS215,GWS214201309-201804

10 parts on this diagram · 3 diagrams in section
