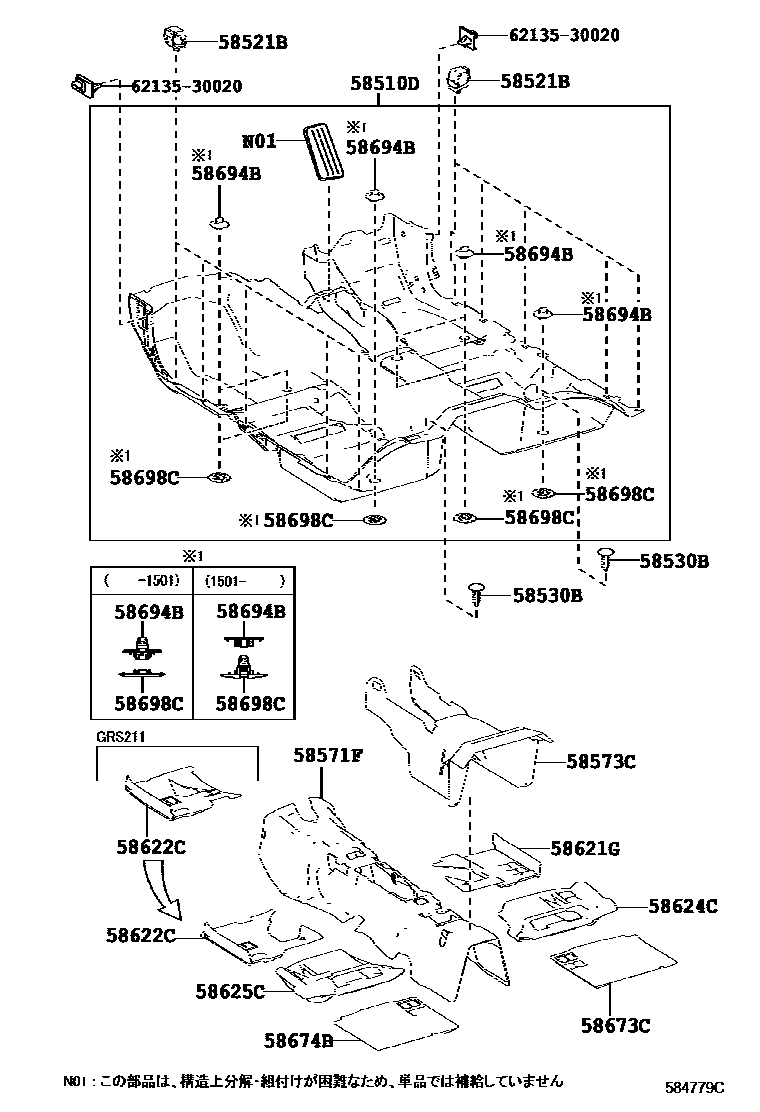

MAT & CARPET

58510DCARPET ASSY, FLOOR, FRONT

main58510-30D80-C0iAWS210..ROY201301-201412

BLACK,TRIM0#,2#,4#

sub58510-30D81

main58510-30D80-C0iAWS210,GRS210,214..ATHG201212-201412

BLACK,TRIM2#,3#

sub58510-30D81

main58510-30D80-C0iAWS210,GRS210,214..ATHG201212-201412

BLACK,TRIM0#,4#

sub58510-30D81

main58510-30D80-C0iAWS210,GRS210,214..ATH,ATHS201212-201412

BLACK,TRIM2#

sub58510-30D81

main58510-30D81-C0iAWS210..ROYAL,ROYG;GRS210..ROY,ROYAL,ROYG201501-201509

BLACK,TRIM2#,3#

main58510-30D81-C0iAWS210..ROY201501-201804

BLACK,TRIM0#,2#,4#

main58510-30D81-C0iAWS210..ROY201501-201509

BLACK,TRIM2#

main58510-30D81-C0iAWS210..ROY201501-201509

BLACK,TRIM0#,4#

main58510-30D81-C0iGRS214..ATHS201509-201804

BLACK,TRIM0#,2#,3#,4#,8#

main58510-30D81-C0iGRS214..ATHS201509-201804

BLACK,TRIM0#,2#

main58510-30D81-C0iGRS214..ATHS201509-201804

BLACK,TRIM2#,3#,8#

main58510-30D81-C0iGRS214..ATHS201509-201804

BLACK,TRIM0#,2#,3#,4#,6#,8#

main58510-30D90-C0iAWS211..ROYAL,ROYG;GRS211..ROY,ROYAL,ROYG201212-201412

BLACK,TRIM0#,4#

sub58510-30D91

main58510-30D90-C0iAWS211..ROY201407-201412

BLACK,TRIM0#,2#,4#

sub58510-30D91

main58510-30D90-C0iAWS211..ROYAL,ROYG;GRS211..ROY,ROYAL,ROYG201212-201412

BLACK,TRIM2#

sub58510-30D91

main58510-30D90-C0iAWS211,GRS211..ATH,ATHS201212-201412

BLACK,TRIM2#,3#

sub58510-30D91

main58510-30D91-C0iAWS211..ATHS201509-201804

BLACK,TRIM0#,2#,3#,4#,8#

main58510-30D91-C0iAWS211..ATHS201509-201804

BLACK,TRIM0#,2#,3#,4#,6#,8#

main58510-30D91-C0iAWS211..ATHS201501-201804

BLACK,TRIM0#,2#,4#

main58510-30D91-C0iAWS211..ATHS201509-201804

BLACK,TRIM0#,2#

main58510-30D91-C0iAWS211..ATHS201509-201804

BLACK,TRIM2#,3#,8#

main58510-30D91-C0iAWS211,GRS211..ATHG201501-201509

BLACK,TRIM0#,4#

main58510-30D91-C0iAWS211,GRS211..ATHG201501-201509

BLACK,TRIM2#

main58510-30D91-C0iAWS211,GRS211..ATHG201501-201509

BLACK,TRIM2#,3#

main58510-30E00-C0iGWS214201309-201412

BLACK,TRIM0#,2#

sub58510-30E01

main58510-30E01-C0iGWS214201509-201804

BLACK,TRIM0#,2#,4#

main58510-30E01-C0iGWS214201501-201509

BLACK,TRIM0#,2#

main58510-30F80-C0iAWS215201407-201412

BLACK,TRIM0#,2#

sub58510-30F81

main58510-30F81-C0iAWS215201501-201509

BLACK,TRIM0#,2#

main58510-30F81-C0iAWS215201509-201804

BLACK,TRIM0#,2#,4#

58521BHOOK, FLOOR CARPET

main58521-22110iAWS21#,GRS21#,GWS214201212-201804

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-05164-B8iAWS21#,GRS21#,GWS214201212-201804

LT.GRAY

sub90467-05164

58571FPAD, FRONT FLOOR, FRONT

main58571-30250iAWS210,GRS210,214,GWS214201212-201411

sub58571-30251

main58571-30251iARS210,AWS210,GRS210,214,GWS214201412-201804

main58571-30270iAWS211,215,GRS211201212-201411

sub58571-30271

main58571-30271iAWS211,215,GRS211201412-201804

58573CPAD, FRONT FLOOR CENTER

main58573-30160iAWS210,GRS21#201212-201304

sub58573-30161

main58573-30161iAWS210,211,GRS21#201305-201804

main58573-30171iAWS215,GWS214201309-201804

58621GPAD, FRONT FLOOR SILENCER, RH

main58621-30170iAWS210,GRS21#201212-201304

sub58621-30171

main58621-30171iAWS21#,GRS21#,GWS214201305-201804

58622CPAD, FRONT FLOOR SILENCER, LH

main58622-30210iAWS210,GRS210,214201212-201304

sub58622-30211

main58622-30211iARS210,AWS210,GRS210,214,GWS214201305-201804

main58622-30220iGRS211201212-201304

sub58622-30221

main58622-30221iAWS211,215,GRS211201305-201804

58624CPAD, CENTER FLOOR SILENCER, RH

main58624-30160iAWS210,GRS21#201212-201304

sub58624-30161

main58624-30161iARS210,AWS21#,GRS21#,GWS214201305-201804

58625CPAD, CENTER FLOOR SILENCER, LH

main58625-30110iAWS210,GRS21#201212-201304

sub58625-30111

main58625-30111iAWS21#,GRS21#,GWS214201305-201804

58673CPAD, REAR FLOOR SILENCER, NO.1

main58673-30050iAWS210,GRS21#201212-201304

sub58673-30051

main58673-30051iAWS210,211,GRS21#201305-201804

main58673-30061iAWS215,GWS214201309-201804

58674BPAD, REAR FLOOR SILENCER, NO.2

main58674-30040iAWS210,GRS21#201212-201304

sub58674-30041

main58674-30041iAWS210,211,GRS21#201305-201804

main58674-30051iAWS215,GWS214201309-201804

58694BPLATE, MAT SET, UPPER

main58694-76010iAWS21#,GRS21#,GWS214201212-201501

main58694-78010iAWS21#,GRS21#,GWS214201501-201804

58698CPLATE, MAT SET, LOWER

main58698-76010iAWS21#,GRS21#,GWS214201212-201501

main58698-78010iARS210,AWS21#,GRS21#,GWS214201501-201804

6213530020FRAME, REAR SIDE WINDOW

main62135-30020

14 parts on this diagram · 1 diagram in section
