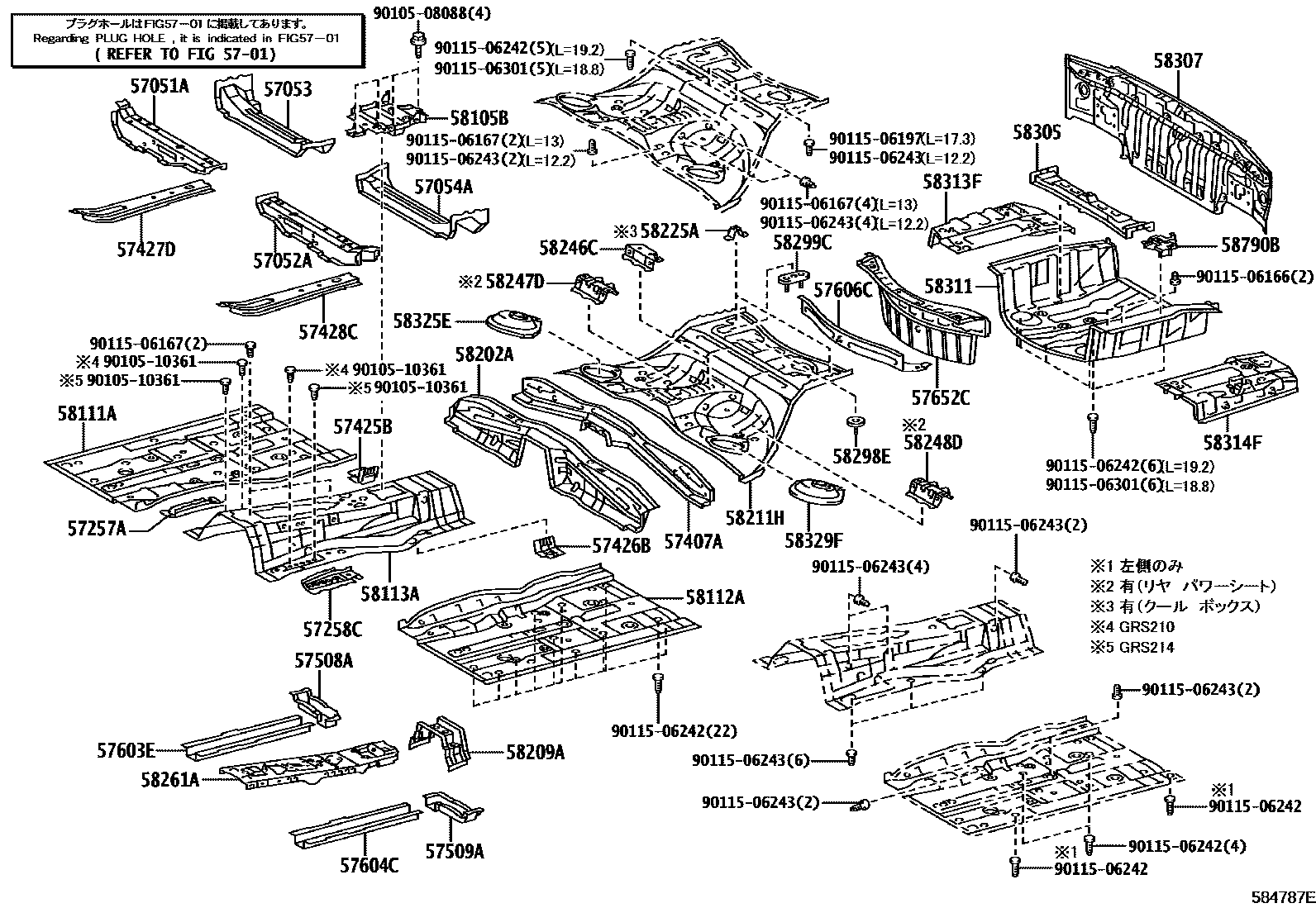

FLOOR PAN & LOWER BACK PANEL
5701
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57257ABRACKET, ENGINE REAR MOUNTING MEMBER, RH
57258CBRACKET, ENGINE REAR MOUNTING MEMBER, LH
57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS
57425BREINFORCEMENT, FRONT FLOOR, NO.2 RH
57426BREINFORCEMENT, FRONT FLOOR, NO.2 LH
57427DREINFORCEMENT, FRONT FLOOR, NO.3 RH
57428CREINFORCEMENT, FRONT FLOOR, NO.3 LH
57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
57603EEXTENSION SUB-ASSY, REAR SIDE MEMBER, RH
57604CEXTENSION SUB-ASSY, REAR SIDE MEMBER, LH
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57652CMEMBER, REAR FLOOR CROSS, NO.1
58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB
58111APAN, FRONT FLOOR, RH
58112APANEL, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58202APAN SUB-ASSY, CENTER FLOOR, FRONT
58209AREINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT
58211HPAN, CENTER FLOOR
58225ABRACKET, CENTER MOUNTING
58246CBRACKET, REAR SEAT HINGE, CENTER NO.2
58247DBRACKET, REAR SEAT HINGE, OUTER RH
58248DBRACKET, REAR SEAT HINGE, OUTER LH
58261ACOVER, TRANSMISSION
58298EBRACKET, HOT AIR INTAKE, NO.1
58299CBRACKET, HOT AIR INTAKE, NO.2
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2
58790BCARRIER ASSY, JACK
9010508088
9010510361
9011506166
9011506167
9011506197
9011506242
9011506243
9011506301
48 parts on this diagram · 8 diagrams in section
