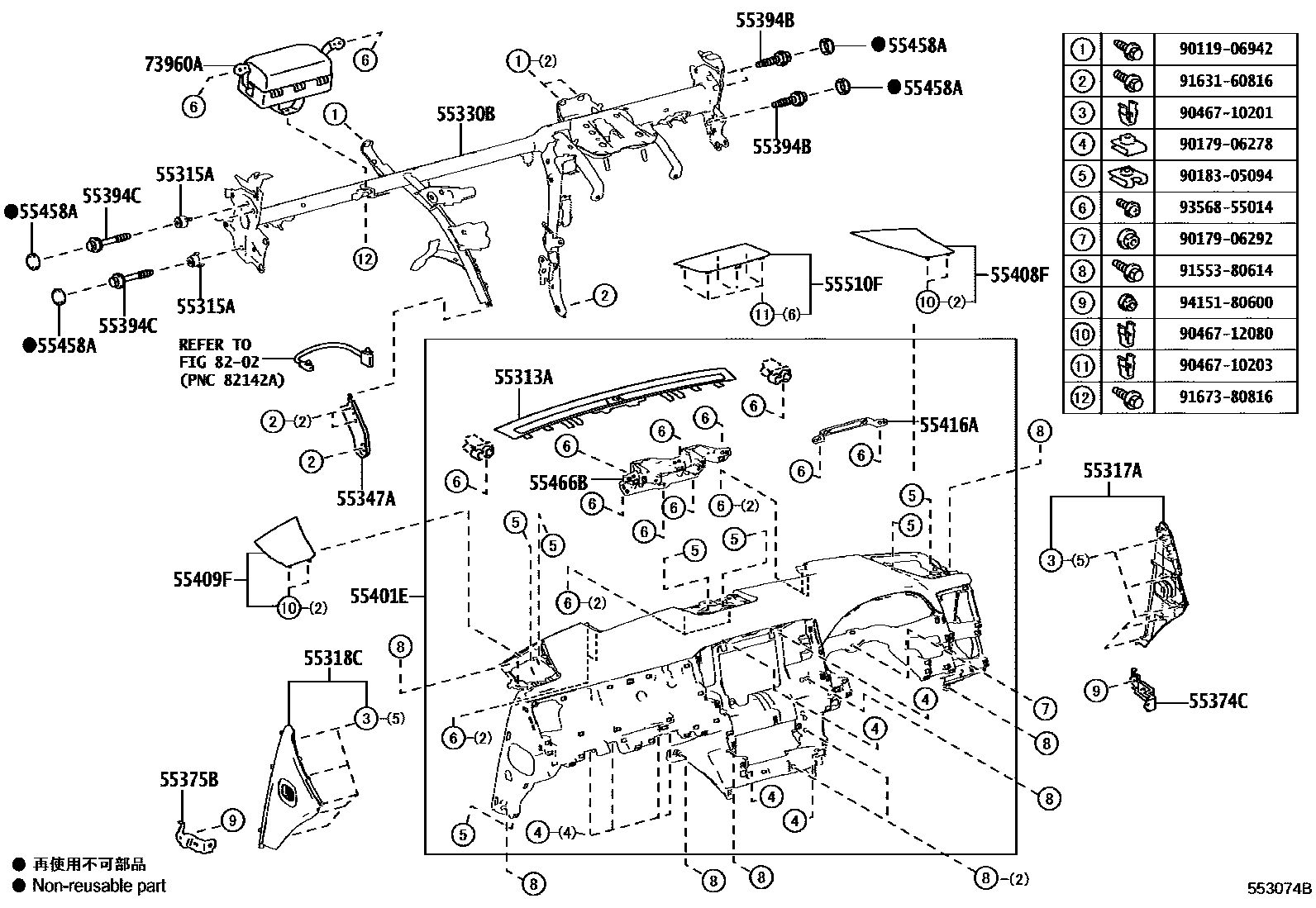

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1��������� 0003 1����� 0004 1����������

55313APANEL, INSTRUMENT MAIN

main55313-30100-C0iARS210,AWS21#,GRS211,214,GWS214..ATHG,MJ201509-201804

BLACK,TRIM0#,2#,3#,4#,8#

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-53040×3iARS210,AWS21#,GRS21#,GWS214201509-201804

55317APANEL, INSTRUMENT SIDE, RH

main55317-30190-C0iARS210,AWS21#,GRS211,214,GWS214..ATHG,MJ201509-201804

BLACK,TRIM0#,2#,3#,4#,8#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-30190-C0iAWS210,211,GRS21#..ATHG201212-201509

BLACK,TRIM2#,3#

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-30430supersedes 55330-30440iAWS210,211,GRS214..ATHG,ATHS,ROY,ROYG;ARS210,AWS215,GRS210,211,GWS214..ATHG,MJ,ROYG201509-201804

main55330-30440iAWS210,211..ATH,ROYAL;GRS210,211..ATH,ATHS,ROY,ROYAL201212-201509

55347ABRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1

main55348-30120iARS210,AWS210,GRS210,214,GWS214201509-201804

main55348-30130iAWS211,215,GRS211201212-201509

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55374-30310iAWS21#,GRS21#,GWS214201212-201509

55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2

main55375-30200iAWS21#,GRS21#,GWS214201212-201509

55394BBOLT, INSTRUMENT PANEL

main55394-22030×3iAWS21#,GRS21#,GWS214201212-201509

55394CBOLT, INSTRUMENT PANEL

main55394-22040×3iARS210,AWS21#,GRS21#,GWS214201509-201804

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55400-30160-C0iAWS210,211,GRS21#..ATHG201212-201509

BLACK,TRIM2#,3#

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55408-30300-C0iAWS210,211,GRS21#..ATHG201212-201509

BLACK,TRIM2#,3#

main55408-30310-C0supersedes 55408-30300-C0iAWS210,211,GRS214..ATHG201509-201804

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55409-30310-C0iARS210,AWS21#,GRS211,214,GWS214..ATHG,MJ201509-201804

BLACK,TRIM0#,2#,3#,4#,8#

main55409-30320-C0supersedes 55409-30310-C0iAWS210,211,GRS214..ATHG201509-201804

55416ARETAINER, METER HOOD, NO.1

main55416-30200iAWS21#,GRS21#,GWS214201212-201509

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-22110×6iAWS21#,GRS21#,GWS214201212-201509

55466BRETAINER, INSTRUMENT PANEL SAFETY PAD, NO.1

main55466-30090iARS210,AWS21#,GRS21#,GWS214201509-201804

55510FCOVER ASSY, SPEAKER OPENING, NO.1

main55510-30210-C0iAWS210,211,GRS210,211..ATH201212-201509

BLACK,TRIM2#,3#

main55510-30220-C0iAWS210,211,GRS21#..ATHG201212-201509

BLACK,TRIM2#,3#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-30110iAWS21#,GRS21#,GWS214201212-201509

8202

9011906942

main90119-06942

9017906278

main90179-06278

9017906292

main90179-06292

9018305094

main90183-05094

9046710201

main90467-10201

9046710203

main90467-10203

9046712080

main90467-12080

9155380614

main91553-80614

9163160816

main91631-60816

9167380816

main91673-80816

9356855014

main93568-55014

9415180600

main94151-80600

31 parts on this diagram · 4 diagrams in section
