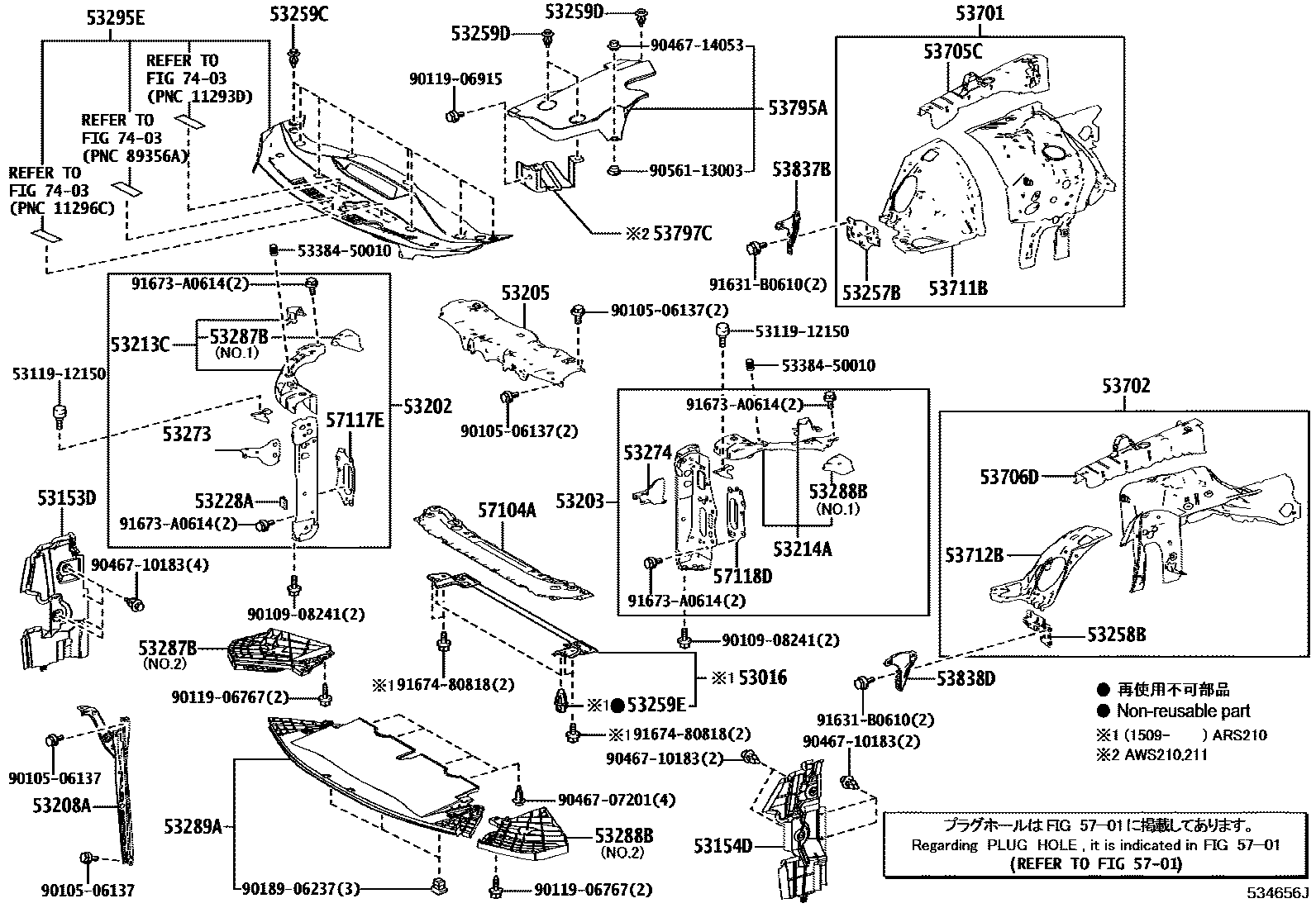

FRONT FENDER APRON & DASH PANEL

0001 1 0003 1 0004 1 0005 1 0006 1 0007 1���������

53016ROD SUB-ASSY, RADIATOR BRACE

main53016-30020iARS210201509-201804

53153DGUIDE, RADIATOR GRILLE SIDE AIR, RH

main53153-30230iAWS210,211,GRS210,211..ROY,ROYAL,ROYG201212-201509

main53153-30240iAWS210,211,GRS21#..ATH,ATHG,ATHS201212-201509

main53153-30270iAWS215,GWS214201309-201804

main53153-30300iAWS210,211,GRS210,211..ROY,ROYAL,ROYG201509-201804

main53153-30310iARS210,AWS210,211,GRS211,214..ATH,ATHG,ATHS201509-201804

53154DGUIDE, RADIATOR GRILLE SIDE AIR, LH

main53154-30220iAWS210,211,GRS210,211..ROY,ROYAL,ROYG201212-201509

main53154-30230iAWS210,211,GRS21#..ATH,ATHG,ATHS201212-201509

main53154-30270iAWS215,GWS214201309-201804

main53154-30290iAWS210,211,GRS210,211..ROY,ROYAL,ROYG201509-201804

main53154-30300iARS210,AWS210,211,GRS211,214..ATH,ATHG,ATHS201509-201804

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-30130iAWS210,211,GRS21#201212-201804

main53202-30140iAWS215,GWS214201309-201804

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-30140iAWS210,211,GRS21#201212-201804

main53203-30150iAWS215,GWS214201309-201804

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-30120iAWS210,211,GRS21#201212-201509

sub53205-30121

sub53205-30122

sub53557-30040

sub90105-08478

sub90119-06932

main53205-30121iARS210,AWS210,211,GRS21#201509-201804

main53205-30130iAWS215,GWS214201309-201509

sub53205-30131

sub53557-30020

sub90119-06932

sub90119-08718

main53205-30131iAWS215,GWS214201509-201804

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-30080iAWS210,211,GRS21#201212-201804

main53208-30090iAWS215,GWS214201309-201804

53213CSUPPORT, RADIATOR, UPPER FRONT

main53213-30903iAWS210,211,GRS21#201212-201804

main53213-30904iAWS215,GWS214201309-201804

53214ASUPPORT, RADIATOR, UPPER LH

main53214-30904iARS210,AWS210,211,GRS21#201212-201804

main53214-30905iAWS215,GWS214201309-201804

53228ABRACKET, RADIATOR MOUNTING, LOWER NO.1

main53228-30070iAWS210,211,GRS21#201212-201804

53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER

main53257-30120iAWS21#,GRS21#,GWS214201212-201804

53258BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH

main53258-30070iAWS21#,GRS21#,GWS214201212-201804

53259CCLIP, RADIATOR SUPPORT TO FRAME SEAL

main90467-07217iARS210,AWS21#,GRS21#,GWS214201212-201804

53259DCLIP, RADIATOR SUPPORT TO FRAME SEAL, NO.2

main90467-07217iARS210,AWS21#,GRS21#,GWS214201212-201804

53259ECLIP, RADIATOR SUPPORT TO FRAME SEAL, NO.3

main53259-30010iARS210201509-201804

53273BRACKET, FRONT BUMPER ARM MOUNTING, RH

main53273-30100iARS210,AWS210,211,GRS21#201212-201804

main53273-30110iAWS215,GWS214201309-201804

53274BRACKET, FRONT BUMPER ARM MOUNTING, LH

main53274-30080iAWS210,211,GRS21#201212-201804

main53274-30090iAWS215,GWS214201309-201804

53287BEXTENSION, RADIATOR SUPPORT, RH

main53287-30080iAWS21#,GRS21#,GWS214201212-201804

main53287-30130iAWS210,211201301-201509

main53287-30140iAWS210,211..ROY,ROYAL,ROYG201509-201804

main53287-30150iARS210,AWS210,211..ATH,ATHG,ATHS201509-201804

53288BEXTENSION, RADIATOR SUPPORT, LH

main53288-30070iAWS21#,GRS21#,GWS214201212-201804

main53288-30130iAWS210,211..ROY,ROYAL,ROYG201509-201804

main53288-30140iAWS210,211201301-201509

main53288-30150iARS210,AWS210,211..ATH,ATHG,ATHS201509-201804

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-30200iAWS210,211,GRS21#201212-201509

main53289-30210iAWS210,211,GRS210,211..ROY,ROYAL,ROYG201509-201804

main53289-30220iARS210,AWS210,211,GRS211,214..ATH,ATHG,ATHS201509-201804

main53289-30240iAWS215,GWS214201309-201804

53295ESEAL, COOL AIR INTAKE DUCT

main53295-30150iAWS210,211..ROY,ROYAL,ROYG201301-201509

main53295-30160iAWS210,211..ATH,ATHG,ATHS201301-201509

main53295-30180iAWS215,GWS214201309-201509

main53295-30190iGRS210,211..ROY,ROYAL,ROYG201212-201509

main53295-30200iGRS21#..ATH,ATHG,ATHS201212-201509

main53295-30210iGRS210,211..ROY,ROYAL,ROYG201509-201605

sub53295-30211

main53295-30211iGRS210,211..ROY,ROYAL,ROYG201606-201804

main53295-30220iAWS210,211..ROY,ROYAL,ROYG201509-201605

sub53295-30221

main53295-30221iAWS210,211..ROY,ROYAL,ROYG201606-201804

main53295-30230iARS210,GRS211,214..ATH,ATHG,ATHS201509-201605

sub53295-30231

main53295-30231iARS210,GRS211,214..ATH,ATHG,ATHS201606-201804

main53295-30250iAWS210,211..ATH,ATHG,ATHS201509-201605

sub53295-30251

main53295-30251iAWS210,211..ATH,ATHG,ATHS201606-201804

main53295-30260iAWS215,GWS214201509-201804

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-30B30iGWS214201212-201310

sub53701-30B31

main53701-30B31iAWS210,GRS210,214,GWS214201310-201405

sub53701-30B32

main53701-30B32iAWS210,GRS210,214,GWS214201406-201509

sub53701-30B60

main53701-30B40iGRS211201212-201309

sub53701-30B41

main53701-30B41iGRS211201310-201405

sub53701-30B42

main53701-30B42iAWS211,215,GRS211201406-201509

sub53701-30B70

main53701-30B60iARS210,AWS210,GRS210,214,GWS214201509-201804

main53701-30B70iAWS211,215,GRS211201509-201804

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-30890iAWS210,GRS210,214201212-201310

sub53702-30891

main53702-30891iAWS210,GRS210,214,GWS214201310-201405

sub53702-30892

main53702-30892iAWS210,GRS210,214,GWS214201406-201509

sub53702-30A20

main53702-30A00iGRS211201212-201309

sub53702-30A01

main53702-30A01iGRS211201310-201405

sub53702-30A02

main53702-30A02iAWS211,215,GRS211201406-201509

sub53702-30A30

main53702-30A20iARS210,AWS210,GRS210,214,GWS214201509-201804

main53702-30A30iAWS211,215,GRS211201509-201804

53705CBRACKET SUB-ASSY, FRONT SUSPENSION UPPER, NO.1 RH

main53705-30090iAWS21#,GRS21#,GWS214201212-201505

sub53705-30091

main53705-30091iAWS21#,GRS21#,GWS214201506-201804

53706DMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH

main53706-30100iAWS21#,GRS21#,GWS214201212-201505

sub53706-30101

main53706-30101iAWS21#,GRS21#,GWS214201506-201804

53711BAPRON, FRONT FENDER, FRONT RH

main53711-24050iAWS21#,GRS21#,GWS214201406-201804

main53711-3A031iAWS210,GRS21#,GWS214201212-201405

sub53711-24050

53712BAPRON, FRONT FENDER, FRONT LH

main53712-24060iAWS21#,GRS21#,GWS214201406-201804

main53712-30640iAWS210,GRS21#,GWS214201212-201405

sub53712-24060

53795ACOVER, ENGINE ROOM, SIDE

main53795-30160iAWS21#,GRS21#,GWS214201212-201509

sub53795-30200

main53795-30200iARS210,AWS21#,GRS21#,GWS214201509-201804

53797CBRACKET, COOL AIR INTAKE SILENCER

main53797-30010iAWS21#,GRS21#,GWS214201212-201804

53837BBRACKET, FRONT SIDE PANEL, NO.2

main53837-30050iAWS21#,GRS21#,GWS214201212-201804

53838DBRACKET, FRONT SIDE PANEL, NO.2 LH

main53838-30090iAWS21#,GRS21#,GWS214201212-201804

5701

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-30090iAWS21#,GRS21#,GWS214201212-201804

sub57104-30091

57117ERETAINER, FRONT BUMPER ARM, RH

main57117-30050iAWS21#,GRS21#,GWS214201212-201804

57118DRETAINER, FRONT BUMPER ARM, LH

main57118-30050iAWS21#,GRS21#,GWS214201212-201804

7403

5311912150SUPPORT, RADIATOR GRILLE, SIDE

main53119-12150

5338450010BAR, HOOD SILENCER SUPPORT

main53384-50010

9010506137

main90105-06137

9010908241

main90109-08241

9011906767

main90119-06767

9011906915

main90119-06915

9018906237

main90189-06237

9046707201

main90467-07201

9046710183

main90467-10183

9046714053

main90467-14053

9056113003

main90561-13003

91631B0610

main91631-B0610

91673A0614

main91673-A0614

9167480818

main91674-80818

50 parts on this diagram · 6 diagrams in section
