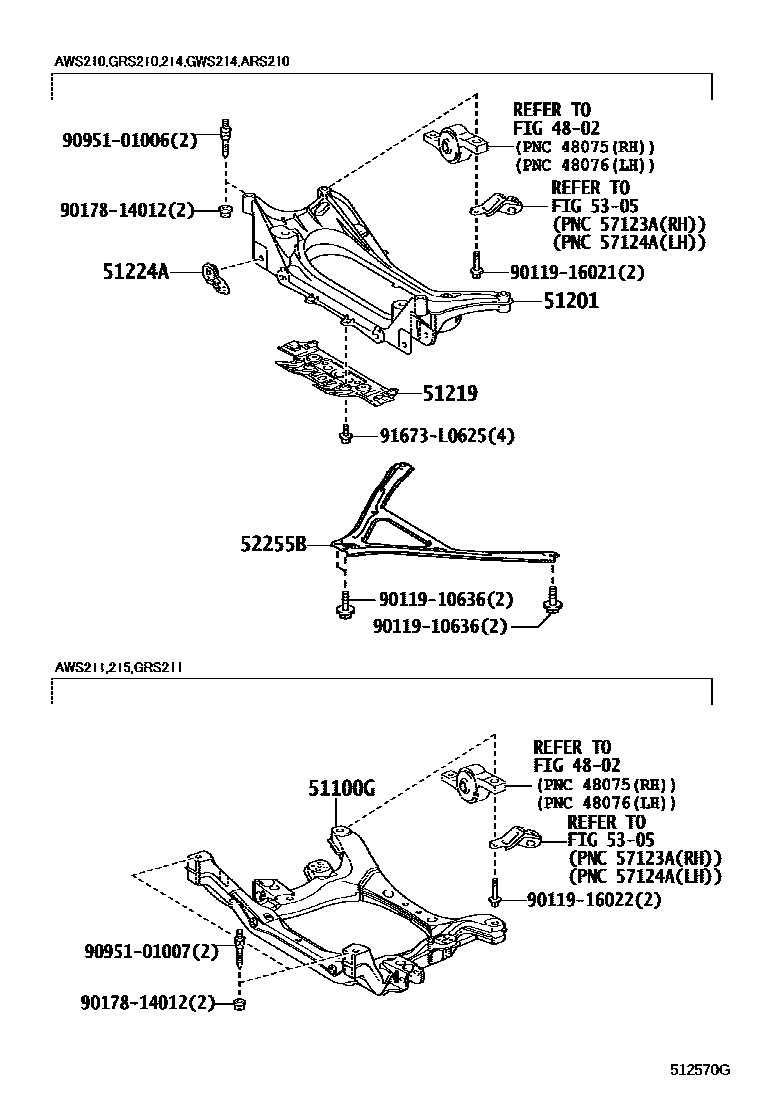

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1���������������� 0002 1�������������� 0003 1�������� 0004 1�������� 0005 1�������� 0006 1��������

4802

51100GFRAME ASSY, FRONT

main51100-30740iGRS211201212-201307

sub51100-30860

main51100-30741iGRS211201308-201407

main51100-30870iAWS211,215,GRS211201509-201804

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-30140iAWS210,GRS210,214,GWS214201212-201509

51219PROTECTOR, FRONT SUSPENSION MEMBER, LWR

main51219-30050iAWS210,GRS210,214,GWS214201212-201509

sub51219-30051

51224APLATE, FRONT SUSPENSION MENBER BRACE

main51224-30030×2iAWS210,GRS210,214,GWS214201212-201509

52255BBRACE, FRONT SUSPENSION MEMBER

main52255-30050iAWS210,GRS210,214,GWS214201212-201509

sub52255-30051

5305

9011910636

main90119-10636

9011916021

main90119-16021

9011916022

main90119-16022

9017814012

main90178-14012

9095101006

main90951-01006

9095101007

main90951-01007

91673L0625

main91673-L0625

14 parts on this diagram · 6 diagrams in section
