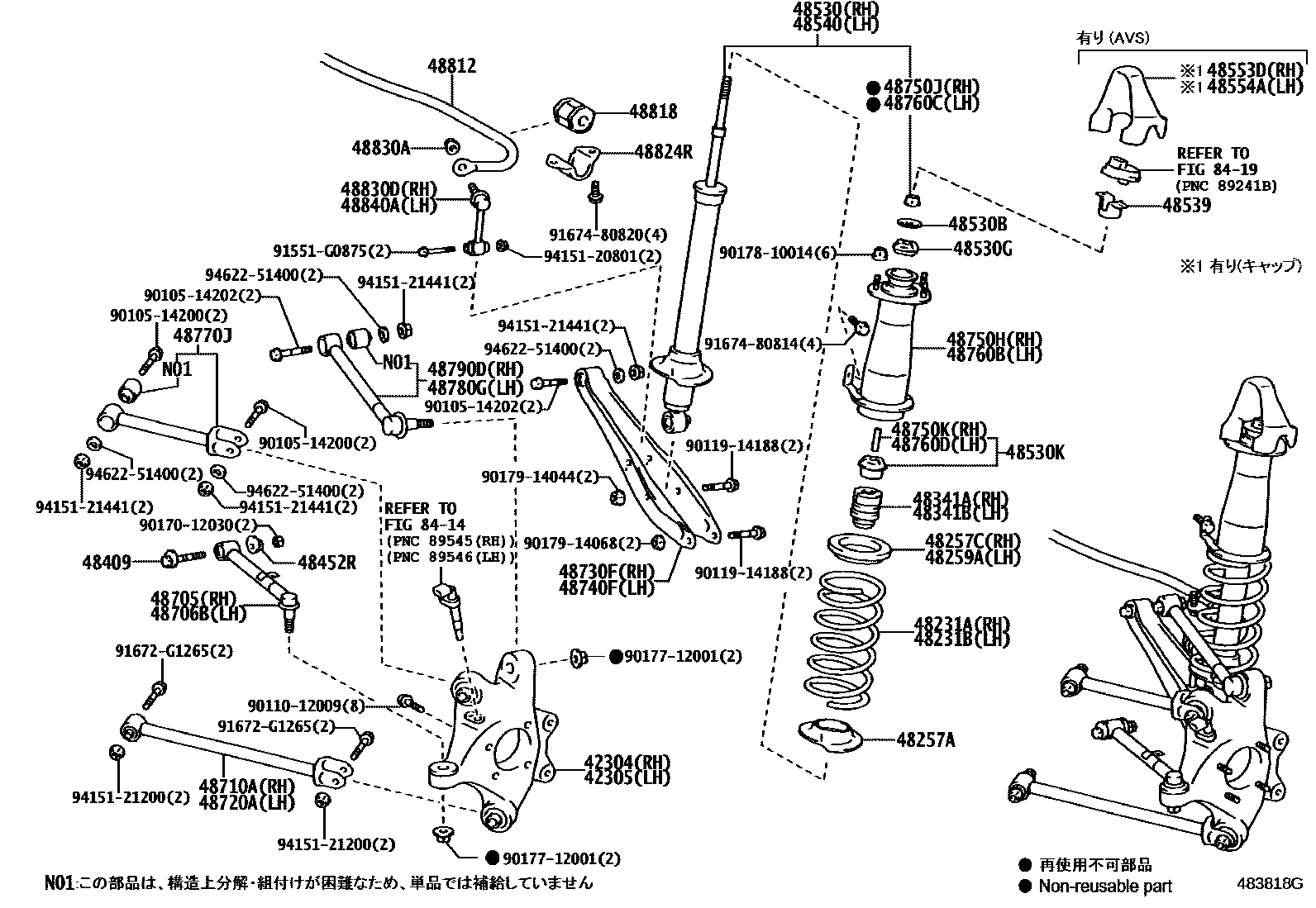

REAR SPRING & SHOCK ABSORBER

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-30140iAWS210,211,GRS210,211..ROY,ROYAL,ROYG201212-201509

main42304-30150iAWS21#,GRS21#,GWS214..ATH,ATHG,ATHS,MJ201212-201509

main42304-30160iAWS210,211,GRS210,211..ROY,ROYAL,ROYG201509-201804

main42304-30170iARS210,AWS21#,GRS211,214,GWS214..ATH,ATHG,ATHS,MJ201509-201804

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-30140iAWS210,211,GRS210,211..ROY,ROYAL,ROYG201212-201509

main42305-30150iAWS21#,GRS21#,GWS214..ATH,ATHG,ATHS,MJ201212-201509

main42305-30160iAWS210,211,GRS210,211..ROY,ROYAL,ROYG201509-201804

main42305-30170iARS210,AWS21#,GRS211,214,GWS214..ATH,ATHG,ATHS,MJ201509-201804

48231ASPRING, COIL, REAR RH

main48231-30D80iGRS210..ROY,ROYAL,ROYG201212-201312

main48231-30D81iGRS210..ROY,ROYAL,ROYG201312-201509

main48231-30D90iAWS210..ROY,ROYAL,ROYG201301-201312

main48231-30D91iAWS210..ROY,ROYAL,ROYG201312-201804

main48231-30E00iGRS210,214..ATH,ATHG,ATHS201212-201312

main48231-30E01iARS210,GRS214201312-201804

main48231-30E10iAWS210..ATH,ATHG,ATHS201301-201312

main48231-30E11iAWS210..ATH,ATHG,ATHS201312-201804

main48231-30E20iGRS211..ROY,ROYAL,ROYG201212-201312

main48231-30E21iGRS211..ROY,ROYAL,ROYG201312-201804

main48231-30E30iGRS211..ATH,ATHG,ATHS201212-201312

main48231-30E31iGRS211..ATH,ATHG,ATHS201312-201804

main48231-30E40iGWS214201309-201312

main48231-30E41iGWS214201312-201804

main48231-30E60iAWS211..ROY,ROYAL,ROYG201407-201804

main48231-30E70iAWS211..ATH,ATHG,ATHS201407-201804

main48231-30E80iAWS215201407-201804

main48231-30F10iGRS210201509-201804

48231BSPRING, COIL, REAR LH

main48231-30D80iGRS210..ROY,ROYAL,ROYG201212-201312

main48231-30D81iGRS210..ROY,ROYAL,ROYG201312-201509

main48231-30D90iAWS210..ROY,ROYAL,ROYG201301-201312

main48231-30D91iAWS210..ROY,ROYAL,ROYG201312-201804

main48231-30E00iGRS210,214..ATH,ATHG,ATHS201212-201312

main48231-30E01iGRS210,214..ATH,ATHG,ATHS201312-201804

main48231-30E10iAWS210..ATH,ATHG,ATHS201301-201312

main48231-30E11iAWS210..ATH,ATHG,ATHS201312-201804

main48231-30E20iGRS211..ROY,ROYAL,ROYG201212-201312

main48231-30E21iGRS211..ROY,ROYAL,ROYG201312-201804

main48231-30E30iGRS211..ATH,ATHG,ATHS201212-201312

main48231-30E31iGRS211..ATH,ATHG,ATHS201312-201804

main48231-30E40iGWS214201309-201312

main48231-30E41iGWS214201312-201804

main48231-30E60iAWS211..ROY,ROYAL,ROYG201407-201804

main48231-30E70iAWS211..ATH,ATHG,ATHS201407-201804

main48231-30E80iAWS215201407-201804

main48231-30F10iGRS210201509-201804

48257AINSULATOR, REAR COIL SPRING, LOWER

main48158-30020iAWS21#,GRS21#,GWS214201212-201804

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-30070iAWS210,GRS21#,GWS214201212-201312

main48257-30100iAWS21#,GRS21#,GWS214201312-201804

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-30070iAWS210,GRS21#,GWS214201212-201312

main48257-30100iAWS21#,GRS21#,GWS214201312-201804

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-30130iAWS21#,GRS21#,GWS214201212-201804

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-30130iAWS21#,GRS21#,GWS214201212-201804

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-30020iARS210,AWS21#,GRS21#,GWS214201212-201804

48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2

main48452-30040iAWS21#,GRS21#,GWS214201212-201804

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-80656iGRS210..ROY,ROYAL,ROYG201212-201509

sub48530-80842

main48530-80657iAWS210..ROY,ROYAL,ROYG201301-201509

sub48530-80843

main48530-80658iGRS210,214..ATH,ATHG,ATHS201212-201312

sub48530-80715

main48530-80659iAWS210..ATH,ATHG,ATHS201301-201312

sub48530-80716

main48530-80660iGRS211..ROY,ROYAL,ROYG201212-201305

sub48530-80682

main48530-80661iGRS211..ATH,ATHG,ATHS201212-201305

sub48530-80683

main48530-80677iGWS214201309-201312

sub48530-80717

main48530-80682iGRS211..ROY,ROYAL,ROYG201305-201509

sub48530-80844

main48530-80683iGRS211..ATH,ATHG,ATHS201305-201312

sub48530-80718

main48530-80684iAWS211..ROY,ROYAL,ROYG201407-201509

sub48530-80845

main48530-80685iAWS211..ATH,ATHG,ATHS201407-201509

main48530-80686iAWS215201407-201509

main48530-80715iGRS210,214..ATH,ATHG,ATHS201312-201409

sub48530-80753

main48530-80716iAWS210..ATH,ATHG,ATHS201312-201409

sub48530-80754

main48530-80717iGWS214201312-201412

sub48530-80762

main48530-80718iGRS211..ATH,ATHG,ATHS201312-201409

sub48530-80755

main48530-80753iGRS210,214..ATH,ATHG,ATHS201409-201509

sub48530-80754

main48530-80754iAWS210..ATH,ATHG,ATHS201409-201509

main48530-80755iGRS211..ATH,ATHG,ATHS201409-201509

main48530-80762iGWS214201412-201509

main48530-80766iGRS210201509-201801

sub48530-80846

main48530-80767iAWS210..ROY,ROYAL,ROYG201509-201711

sub48530-80834

main48530-80768iARS210,AWS210,GRS214..ATH,ATHG,ATHS201509-201804

main48530-80771iGWS214201509-201804

main48530-80772iGRS211..ROY,ROYAL,ROYG201509-201801

sub48530-80835

main48530-80773iAWS211..ROY,ROYAL,ROYG201509-201710

sub48530-80836

main48530-80774iAWS211,GRS211..ATH,ATHG,ATHS201509-201804

main48530-80776iAWS215201509-201804

main48530-80834iAWS210..ROY,ROYAL,ROYG201711-201804

main48530-80835iGRS211..ROY,ROYAL,ROYG201801-201804

main48530-80836iAWS211..ROY,ROYAL,ROYG201710-201804

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03021iAWS21#,GRS21#,GWS214201212-201804

48530GCUSHION, REAR SHOCK ABSORBER, NO.1

main90948-01092iAWS21#,GRS21#,GWS214201212-201804

48530KCUSHION, REAR SHOCK ABSORBER, NO.2

main90948-01093iAWS21#,GRS21#,GWS214201212-201804

48539BRACKET, ACTUATOR SUPPORT, RR

main48539-30030iAWS21#,GRS21#,GWS214..ATH,ATHG,ATHS,MJ201212-201804

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-80656iGRS210..ROY,ROYAL,ROYG201212-201509

sub48530-80842

main48530-80657iAWS210..ROY,ROYAL,ROYG201301-201509

sub48530-80843

main48530-80658iGRS210,214..ATH,ATHG,ATHS201212-201312

sub48530-80715

main48530-80659iAWS210..ATH,ATHG,ATHS201301-201312

sub48530-80716

main48530-80660iGRS211..ROY,ROYAL,ROYG201212-201305

sub48530-80682

main48530-80661iGRS211..ATH,ATHG,ATHS201212-201305

sub48530-80683

main48530-80677iGWS214201309-201312

sub48530-80717

main48530-80682iGRS211..ROY,ROYAL,ROYG201305-201509

sub48530-80844

main48530-80683iGRS211..ATH,ATHG,ATHS201305-201312

sub48530-80718

main48530-80684iAWS211..ROY,ROYAL,ROYG201407-201509

sub48530-80845

main48530-80685iAWS211..ATH,ATHG,ATHS201407-201509

main48530-80686iAWS215201407-201509

main48530-80715iGRS210,214..ATH,ATHG,ATHS201312-201409

sub48530-80753

main48530-80716iAWS210..ATH,ATHG,ATHS201312-201409

sub48530-80754

main48530-80717iGWS214201312-201412

sub48530-80762

main48530-80718iGRS211..ATH,ATHG,ATHS201312-201409

sub48530-80755

main48530-80753iGRS210,214..ATH,ATHG,ATHS201409-201509

sub48530-80754

main48530-80754iAWS210..ATH,ATHG,ATHS201409-201509

main48530-80755iGRS211..ATH,ATHG,ATHS201409-201509

main48530-80762iGWS214201412-201509

main48530-80766iGRS210201509-201801

sub48530-80846

main48530-80767iAWS210..ROY,ROYAL,ROYG201509-201711

sub48530-80834

main48530-80768iARS210,AWS210,GRS214..ATH,ATHG,ATHS201509-201804

main48530-80771iGWS214201509-201804

main48530-80772iGRS211..ROY,ROYAL,ROYG201509-201801

sub48530-80835

main48530-80773iAWS211..ROY,ROYAL,ROYG201509-201710

sub48530-80836

main48530-80774iAWS211,GRS211..ATH,ATHG,ATHS201509-201804

main48530-80776iAWS215201509-201804

main48530-80834iGRS210201711-201804

main48530-80835iGRS211..ROY,ROYAL,ROYG201801-201804

main48530-80836iAWS211..ROY,ROYAL,ROYG201710-201804

48553DCAP, REAR SHOCK ABSORBER, RH

main48553-30090iAWS210,211,GRS21#,GWS214..ATH,ATHG,ATHS,MJ201212-201804

48554ACAP, REAR SHOCK ABSORBER, LH

main48553-30090iAWS210,211,GRS21#,GWS214..ATH,ATHG,ATHS,MJ201212-201804

48705LINK SUB-ASSY, TOE CONTROL, RH

main48705-30140iAWS210,211,GRS210,211..ROY,ROYAL,ROYG201212-201509

main48705-30150iAWS21#,GRS21#,GWS214..ATH,ATHG,ATHS,MJ201212-201509

main48705-30160iARS210,AWS21#,GRS21#,GWS214201509-201804

48706BLINK SUB-ASSY, TOE CONTROL, LH

main48706-30080iAWS210,211,GRS210,211..ROY,ROYAL,ROYG201212-201509

main48706-30110iAWS21#,GRS21#,GWS214..ATH,ATHG,ATHS,MJ201212-201509

main48706-30120iARS210,AWS21#,GRS21#,GWS214201509-201804

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-30230iAWS21#,GRS21#,GWS214201212-201509

main48710-30250iARS210,AWS21#,GRS21#,GWS214201509-201804

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-30230iAWS21#,GRS21#,GWS214201212-201509

main48710-30250iARS210,AWS21#,GRS21#,GWS214201509-201804

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-30130iAWS21#,GRS21#,GWS214201212-201804

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48740-30130iAWS21#,GRS21#,GWS214201212-201804

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-30150iAWS210,GRS21#,GWS214201212-201311

main48750-30151iARS210,AWS21#,GRS21#,GWS214201312-201804

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90179-12127iAWS21#,GRS21#,GWS214201212-201804

48750KCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90387-12050iAWS21#,GRS21#,GWS214201212-201804

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-30150iAWS210,GRS21#,GWS214201212-201311

main48750-30151iAWS21#,GRS21#,GWS214201312-201804

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90179-12127iAWS21#,GRS21#,GWS214201212-201804

48760DCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90387-12050iAWS21#,GRS21#,GWS214201212-201804

48770JARM ASSY, UPPER CONTROL, REAR NO.1

main48770-30130iAWS210,211,GRS210,211..ROY,ROYAL,ROYG201212-201804

main48770-30140iARS210,AWS21#,GRS211,214,GWS214..ATH,ATHG,ATHS,MJ201212-201804

48780GARM ASSY, UPPER CONTROL, REAR NO.2 LH

main48780-30070iAWS210,211,GRS210,211..ROY,ROYAL,ROYG201212-201804

main48780-30080iAWS21#,GRS21#,GWS214..ATH,ATHG,ATHS,MJ201212-201804

48790DARM ASSY, UPPER CONTROL, REAR NO.2

main48790-30150iAWS210,211,GRS210,211..ROY,ROYAL,ROYG201212-201804

main48790-30160iARS210,AWS21#,GRS211,214,GWS214..ATH,ATHG,ATHS,MJ201212-201804

48812BAR, STABILIZER, REAR

main48812-30520iAWS211,GRS211;AWS210,215,GRS210..MJ,ROY,ROYAL,ROYG201212-201804

main48812-30580iARS210,AWS210,GRS214,GWS214..ATH,ATHG,ATHS,MJ201212-201804

48818BUSH, STABILIZER, REAR

main48818-30160iAWS211,GRS211;AWS210,215,GRS210..MJ,ROY,ROYAL,ROYG201212-201804

main48818-30170iAWS210,GRS210,214,GWS214..ATH,ATHG,ATHS,MJ201212-201804

48824RBRACKET, STABILIZER(FOR REAR)

main48832-30060iAWS21#,GRS21#,GWS214201212-201804

48830ANUT(FOR REAR STABILIZER LINK)

main90179-12151iAWS21#,GRS21#,GWS214201212-201804

48830DLINK ASSY, REAR STABILIZER, RH

main48830-30090iAWS21#,GRS21#,GWS214201212-201804

48840ALINK ASSY, REAR STABILIZER, LH

main48830-30090iAWS21#,GRS21#,GWS214201212-201804

8414

8419

9010514200

main90105-14200

9010514202

main90105-14202

9011012009

main90110-12009

9011914188

main90119-14188

9017012030

main90170-12030

9017712001

main90177-12001

9017810014

main90178-10014

9017914044

main90179-14044

9017914068

main90179-14068

91551G0875

main91551-G0875

91672G1265

main91672-G1265

9167480814

main91674-80814

9167480820

main91674-80820

9415120801

main94151-20801

9415121200

main94151-21200

9415121441

main94151-21441

9462251400

main94622-51400

59 parts on this diagram · 1 diagram in section
