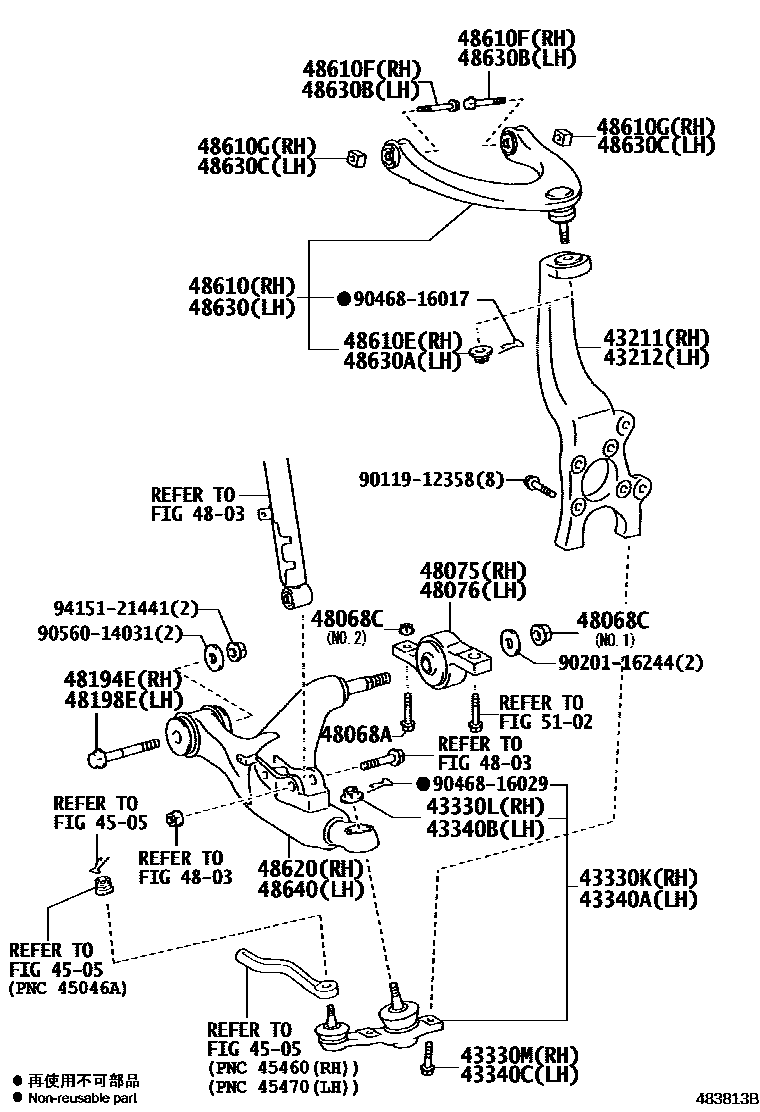

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

43211KNUCKLE, STEERING, RH

main43201-30010iAWS210,GRS210,214,GWS214201212-201804

main43201-30040iAWS211,215,GRS211201212-201804

43212KNUCKLE, STEERING, LH

main43202-30020iAWS210,GRS210,214,GWS214201212-201804

main43202-30050iAWS211,215,GRS211201212-201804

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-39625iARS210,AWS210,GRS210,214,GWS214201212-201804

main43330-39635iAWS211,215,GRS211201212-201804

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14011iARS210,AWS210,GRS210,214,GWS214201212-201804

main90171-14014iAWS211,215,GRS211201212-201804

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main91552-L1455iAWS21#,GRS21#,GWS214201212-201804

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-39635iAWS211,215,GRS211201212-201804

main43340-39505iARS210,AWS210,GRS210,214,GWS214201212-201804

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14011iAWS210,GRS210,214,GWS214201212-201804

main90171-14014iAWS211,215,GRS211201212-201804

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main91552-L1455iAWS21#,GRS21#,GWS214201212-201804

4505

4803

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main91552-L1265iAWS210,GRS210,214,GWS214201212-201804

48068CNUT(FOR FRONT SUSPENSION LOWER ARM)

main94151-21240iARS210,AWS210,GRS210,214,GWS214201212-201804

main94151-21601iAWS21#,GRS21#,GWS214201212-201804

48075BRACKET SUB-ASSY, LWR ARM, NO,1

main48075-30030iAWS21#,GRS21#,GWS214201212-201804

48076BRACKET SUB-ASSY, LWR ARM, NO.2

main48076-30030iAWS21#,GRS21#,GWS214201212-201804

48194ECAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 RH

main90105-14166iAWS210,GRS210,214,GWS214201212-201804

48198ECAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 LH

main90105-14166iAWS210,GRS210,214,GWS214201212-201804

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-39165iAWS210,GRS210,214,GWS214201212-201509

main48610-39175iAWS211,215,GRS211201212-201509

main48610-39205iARS210,AWS210,GRS210,214,GWS214201509-201804

main48610-39215iAWS211,215,GRS211201509-201804

48610ENUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM RH)

main90171-12012iAWS21#,GRS21#,GWS214201212-201804

48610FBOLT(FOR FRONT SUSPENSION UPPER ARM RH)

main91672-G1070iARS210,AWS21#,GRS21#,GWS214201212-201804

48610GNUT(FOR FRONT SUSPENSION UPPER ARM RH)

main90173-10012iAWS21#,GRS21#,GWS214201212-201804

48620ARM ASSY, FRONT SUSPENSION, LOWER RH

main48620-30310iAWS211,215,GRS211201212-201804

main48620-30340iARS210,AWS210,GRS210,214,GWS214201212-201804

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48610-39175iAWS211,215,GRS211201212-201509

main48610-39215iAWS211,215,GRS211201509-201804

main48630-39105iAWS210,GRS210,214,GWS214201212-201509

main48630-39125iARS210,AWS210,GRS210,214,GWS214201509-201804

48630ANUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM LH)

main90171-12012iAWS21#,GRS21#,GWS214201212-201804

48630BBOLT(FOR FRONT SUSPENSION UPPER ARM LH)

main91672-G1070iAWS21#,GRS21#,GWS214201212-201804

48630CNUT(FOR FRONT SUSPENSION UPPER ARM LH)

main90173-10012iAWS21#,GRS21#,GWS214201212-201804

48640ARM ASSY, FRONT SUSPENSION LOWER, LH

main48640-30310iAWS211,215,GRS211201212-201804

main48640-30340iARS210,AWS210,GRS210,214,GWS214201212-201804

5102

9011912358

main90119-12358

9020116244

main90201-16244

9046816017

main90468-16017

9046816029

main90468-16029

9056014031

main90560-14031

9415121441

main94151-21441

33 parts on this diagram · 2 diagrams in section
