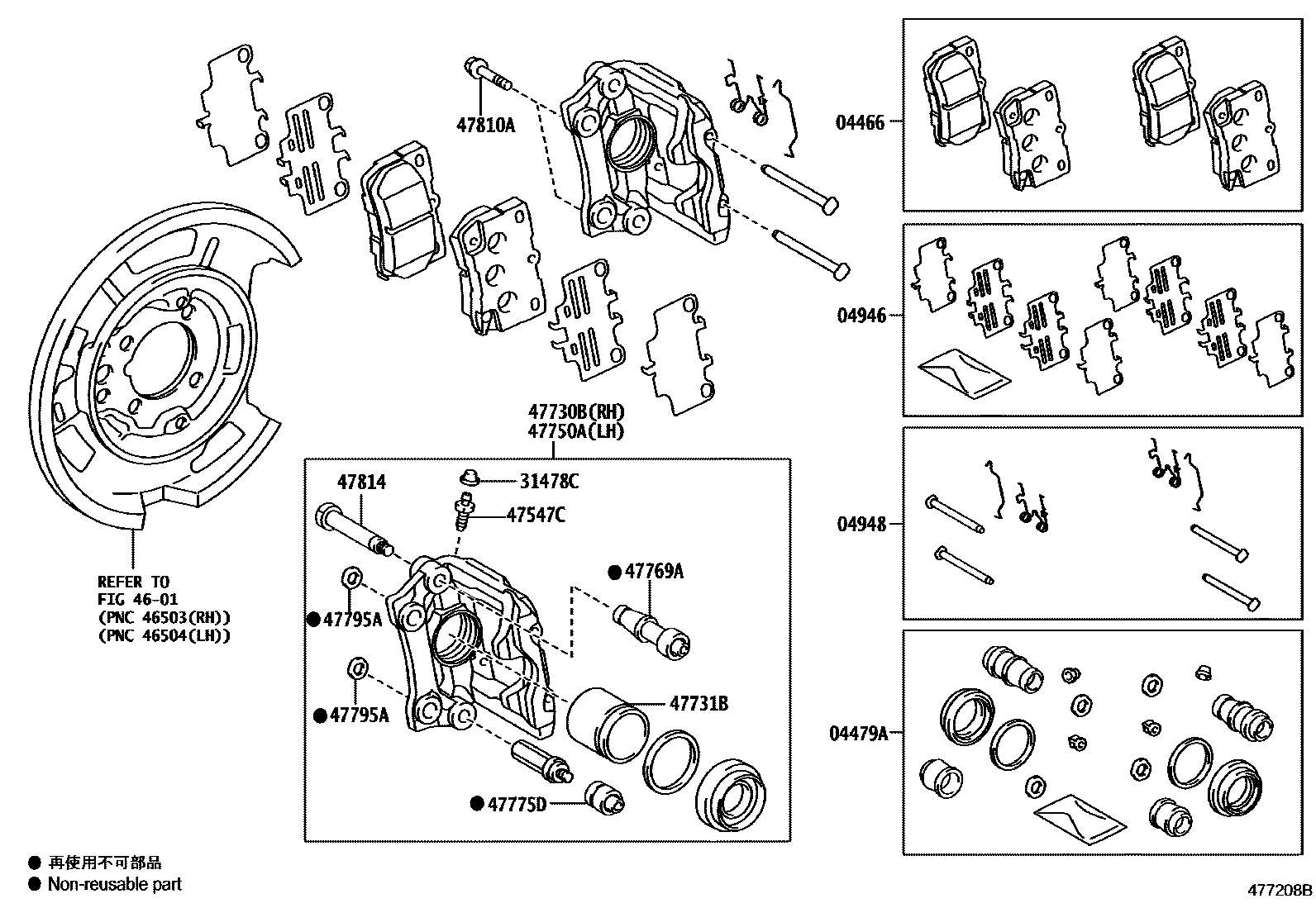

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1 0004 1

04466PAD KIT, DISC BRAKE, REAR

main04466-22190iGRS214201212-201308

main04466-30230iAWS210,GRS210,211201212-201406

main04466-30300iGRS214,GWS214201308-201804

main04466-30330iARS210,AWS21#,GRS210,211201406-201804

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-22170iGRS214201212-201308

main04479-30590iGRS214,GWS214201308-201804

main04479-53070iAWS210,GRS210,211201212-201406

main04479-53090iAWS21#,GRS210,211201406-201804

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-22090iGRS214201212-201308

main04946-30110iAWS210,GRS210,211201212-201406

main04946-47080iAWS211,215,GRS214,GWS214201308-201804

04948FITTING KIT, DISC BRAKE, REAR

main04948-30210iGRS214201212-201308

main04948-30220iAWS210,GRS210,211201212-201406

main04948-30240iAWS210,GRS210,211201308-201804

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iAWS210,GRS210,211201212-201804

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iARS210,AWS21#,GRS21#,GWS214201308-201804

main47547-27030iAWS210,GRS210,211201212-201406

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47830-30370iAWS210,GRS210,211201212-201406

main47830-30400iGRS214201212-201308

main47830-30410iGRS214,GWS214201308-201804

main47830-30420iAWS21#,GRS210,211201407-201804

47731BPISTON, REAR DISC BRAKE

main47831-22220iGRS214,GWS214201212-201804

main47831-30300iAWS210,GRS210,211201212-201804

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47850-30370iAWS210,GRS210,211201212-201406

main47850-30400iGRS214201212-201308

main47850-30410iGRS214,GWS214201308-201804

main47850-30420iAWS21#,GRS210,211201407-201804

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47879-30300iAWS210,GRS210,211201212-201406

main47879-33240iAWS211,215,GRS214,GWS214201308-201804

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-30341iGRS214201212-201406

main47875-33240iAWS211,215,GRS214,GWS214201308-201804

47795APLATE, REAR DISC BRAKE CALIPER, NO.1

main47895-30300iAWS210,GRS210,211201212-201804

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12401iARS210,AWS21#,GRS21#,GWS214201709-201804

main90119-12416iAWS21#,GRS21#,GWS214201212-201708

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-30300iAWS210,GRS210,211201212-201406

main47814-33240iAWS211,215,GRS214,GWS214201308-201804

15 parts on this diagram · 4 diagrams in section
