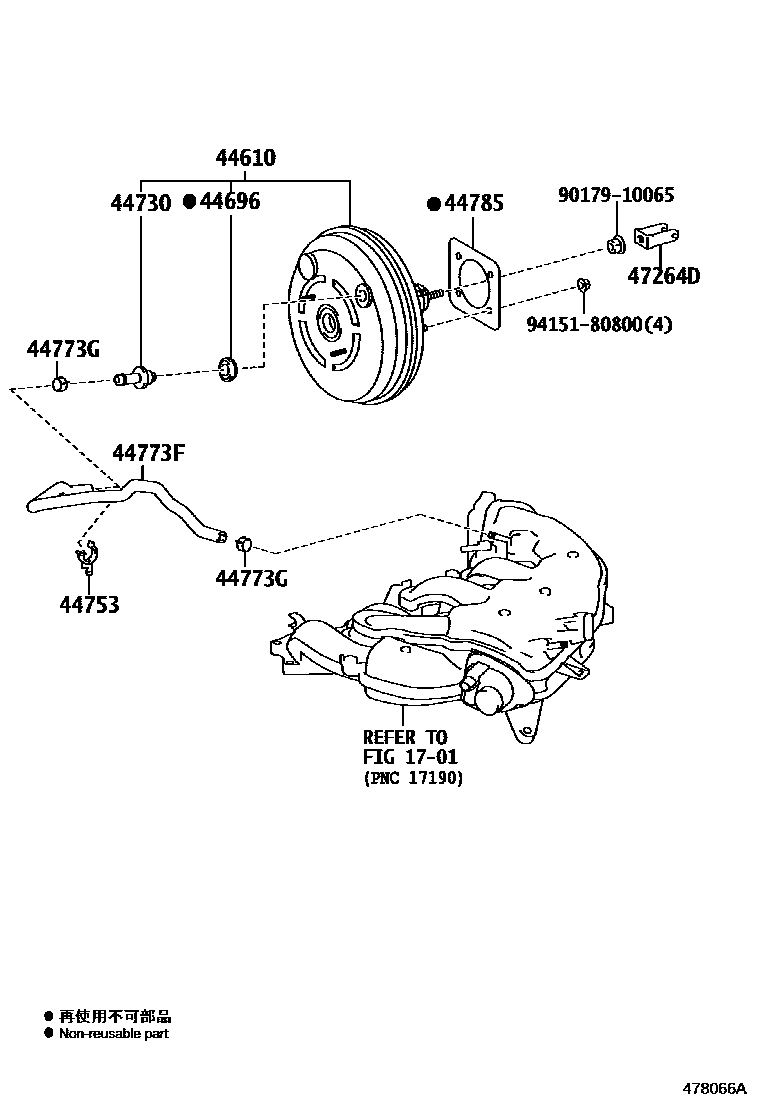

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1701

44610BOOSTER ASSY, BRAKE

main44610-24170iGRS214201509-201804

main44610-30C00iGRS210,211201212-201509

main44610-30C10iGRS214201212-201509

main44610-30D60iARS210201509-201804

44696GROMMET, CHECK VALVE

main90480-24439iGRS21#201509-201804

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-22150iARS210201509-201804

main44730-60070iGRS21#201212-201509

44753CLAMP, VACUUM RESERVOIR, NO.2

main44753-30320iGRS21#201212-201509

44773FHOSE, UNION TO CHECK VALVE

main44773-30650iGRS21#201212-201509

main44773-53110iARS210201509-201804

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014×2iGRS21#201212-201509

44785GASKET, BRAKE BOOSTER

main44785-47010iGRS21#201212-201509

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-22040iGRS21#201212-201509

9017910065

main90179-10065

9415180800

main94151-80800

11 parts on this diagram · 2 diagrams in section
