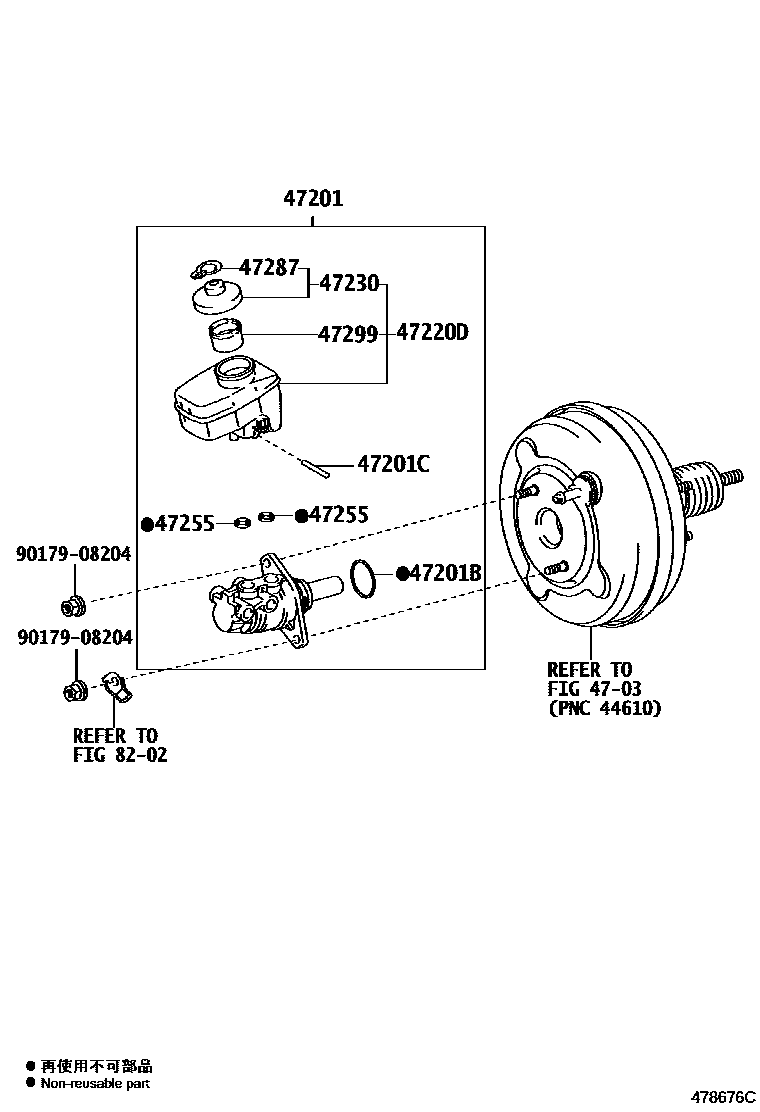

BRAKE MASTER CYLINDER

0001 1 0002 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-30792iGRS21#201212-201509

main47201-30830iAWS21#,GWS214201301-201804

main47201-30860iGRS21#201509-201804

main47201-30880iARS210201509-201804

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iGRS21#201212-201804

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iAWS21#,GRS21#,GWS214201212-201804

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-30210iGRS21#201212-201804

main47220-30230iAWS21#,GWS214201301-201804

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iAWS21#,GRS21#,GWS214201212-201804

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iAWS21#,GRS21#,GWS214201212-201804

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iARS210,AWS21#,GRS21#,GWS214201212-201804

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iARS210,GRS21#201212-201804

main47299-30190iAWS21#,GWS214201301-201804

8202

9017908204

main90179-08204

11 parts on this diagram · 2 diagrams in section
